Pilz PSS Series User Manual

Operating Manual: PSS SB 3006-3 Series
7-1
Wiring the Inputs and Test Pulse Outputs
Configuration of the screw terminals and connector description

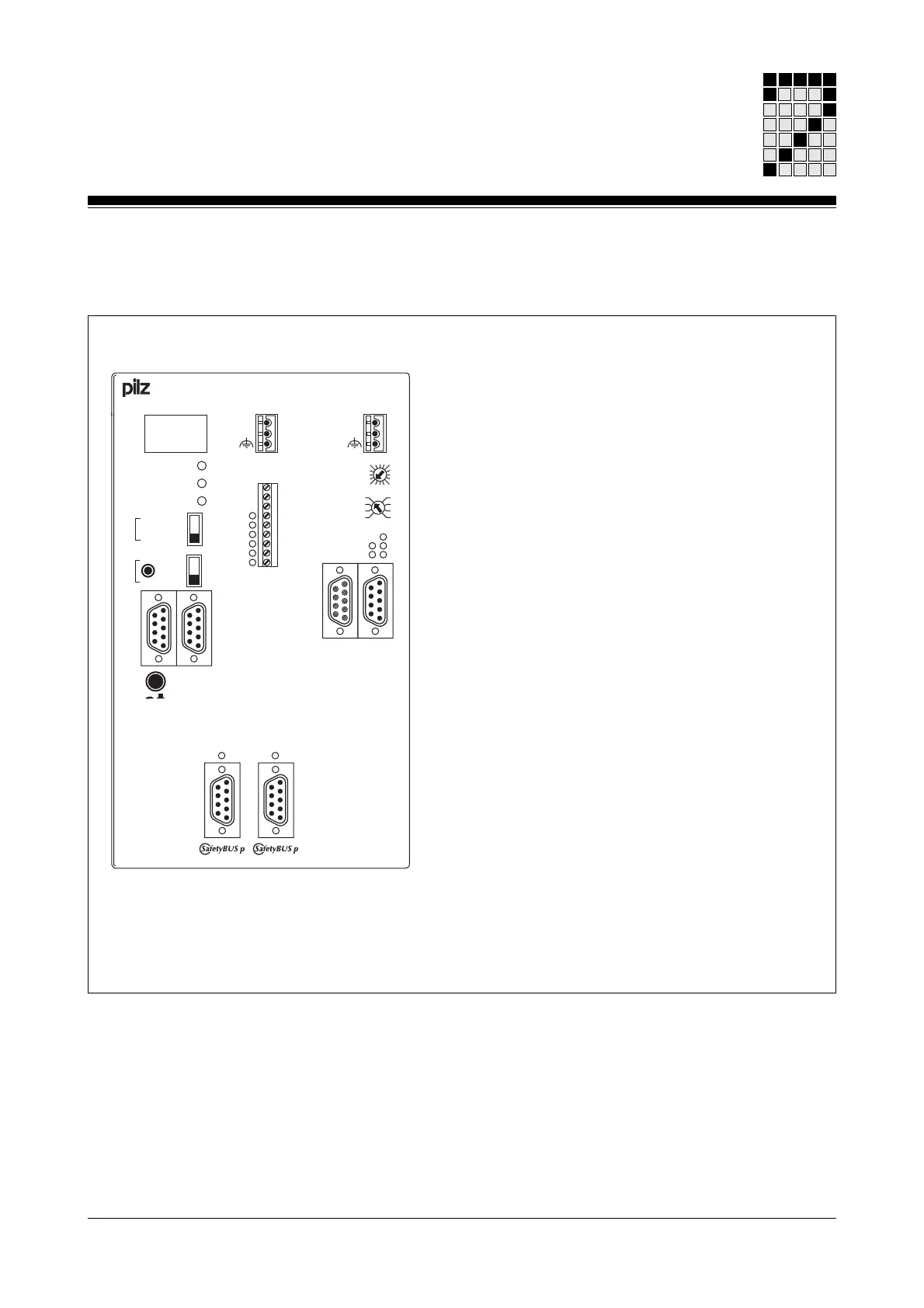

Fig. 7-1: Terminal configuration on programmable safety systems from the PSS SB 3006-3 series
(example: PSS SB2 3006-3 IBS-S)
Supply voltage
X0 PSS PWR
X2 IBS PWR
(only on PSS with INTERBUS interface)
Digital inputs
X1 I0.0 ... I0.5
Test pulse outputs
X1 T0 and T1
RUN FS
RUN ST
POWER
PG
AUTO PG
SPS
ST
FS
STOP
RUN
0 V
T 0
T 1
I 0.0
I 0.1
I 0.2
I 0.3
I 0.4
I 0.5
X1
1
.
.
.
.
.
.
9
PSS SB2 3006-3 IBS-S
ON
OFF
R
T
(USER)
1
.
X0
.
3
PSS PWR
TR
BA
RD
RC
US
PCP
(WORD)
4
2
1
0
2 M
4
2
1
0
500 K
BAUD :
DATA
LENGTH
(WORD)
incl. PCP
2
4
5
6
7
01
3
89
24
14
12
10
32
16
1
.
X2
.
3
IBS PWR
24 V
0 V
132...195 032...095
0
1
F-Stack
PG USER
24 V
0 V
IBS OUT IBS IN
STATUS SBSTATUS SB
