Interfaces
8-6 Operating Manual: PSS SB 3006-3 Series
User interface RS 232
A detailed description of the interface can be found in the “FS System
Description” and “ST System Description” in the PSS-range manual
package.
INFORMATION
To connect PX(T) display systems, PMI graphics systems and the Pilz MPI
adapter to the RS 232 user interface on the PSS you will need a cable with
a layout as shown in Fig. 8-5. This cable is available under order number
301 965. The cable is not suitable for connecting a PX 20 (see operating
manual PX 20).

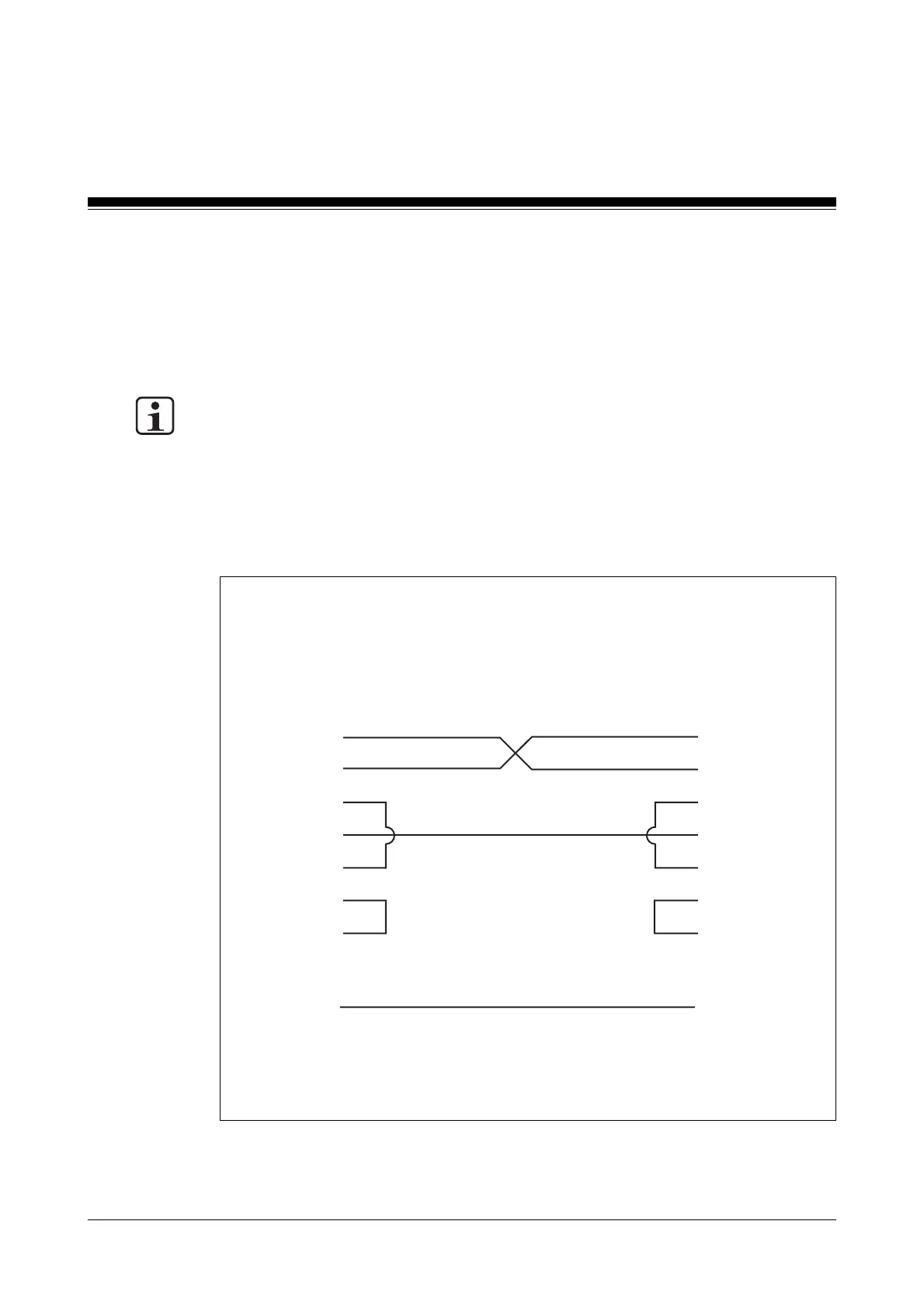

Fig. 8-5: RS 232 connection cable from the PSS to a PX(T) display system for
example
PSS
(Female 9-pin D-Sub connector)
PX(T), PMI, MPI
(Female 9-pin D-Sub connector)
1
RxD 2
TxD 3
DTR 4
GND 5
DSR 6
RTS 7
CTS 8
9
1
2 RxD
3 TxD
5 GND
6 DSR
7RTS
8 CTS
9
4
Screening
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Pilz PSS Series Specifications

General

Category	Safety Equipment
Manufacturer	Pilz
Safety Standards	EN ISO 13849-1, IEC 61508, IEC 62061
Series	PSS
Safety Integrity Level	SIL 3
Communication Interfaces	Ethernet, PROFIBUS, PROFINET
Operating Voltage	24 V DC
Operating Temperature	0°C to +55°C (typical), others depending on model
Storage Temperature	-20°C to +70°C (typical), others depending on model
Protection Class	IP20
Application	Industrial safety applications
