Interfaces
8-4 Operating Manual: PSS SB 3006-3 Series
Programming device interface RS 485
If you need to cover longer distances between the programming device
and PSS (from approx. 15 m), use the RS 485 interface on the PSS.
If the programming device has no RS 485 interface, connect the RS 485
interface on the PSS to the RS 232 interface on the programming device
via the C-PC-PAP-2 interface adapter (order no. 305 155).
To connect the PSS to the programming device or to the interface adapter,
you will need a cable with a layout as shown in Fig. 8-3. This cable is
available under order number 374 205. It contains all the necessary links.

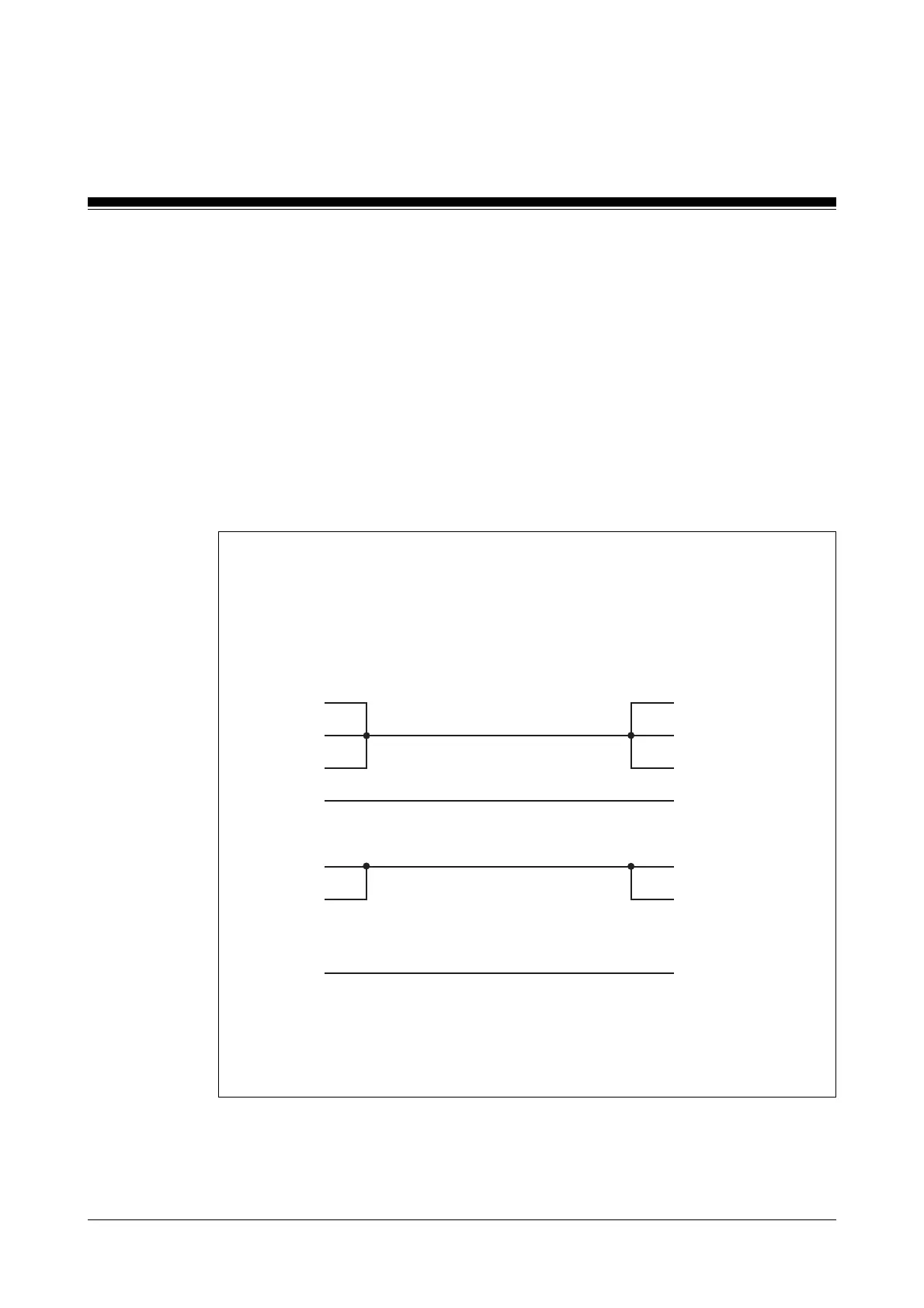

Fig. 8-3: RS 485 connection cable from the PSS to the interface adapter or
programming device, with links to activate the terminating resistors
PSS
(Female 9-pin D-Sub connector)
Interface adapter
or
programming device
(Female 9-pin D-Sub connector)
1
R1 2
B3
R2 4
GND 5
6
A7
R3 8
9
1
2R1
3B
5 GND
6
7A
8R3
9
4R2
Screening
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Pilz PSS Series Specifications

General

Category	Safety Equipment
Manufacturer	Pilz
Safety Standards	EN ISO 13849-1, IEC 61508, IEC 62061
Series	PSS
Safety Integrity Level	SIL 3
Communication Interfaces	Ethernet, PROFIBUS, PROFINET
Operating Voltage	24 V DC
Operating Temperature	0°C to +55°C (typical), others depending on model
Storage Temperature	-20°C to +70°C (typical), others depending on model
Protection Class	IP20
Application	Industrial safety applications
