Pilz PSS Series User Manual

Operating Manual: PSS SB 3006-3 Series
7-5
24 V DC
L+
L-
0 V
T 0
T 1
I 0.0
I 0.1
I 0.2
I 0.3
I 0.4
I 0.5
X1
Single-channel, failsafe
input device

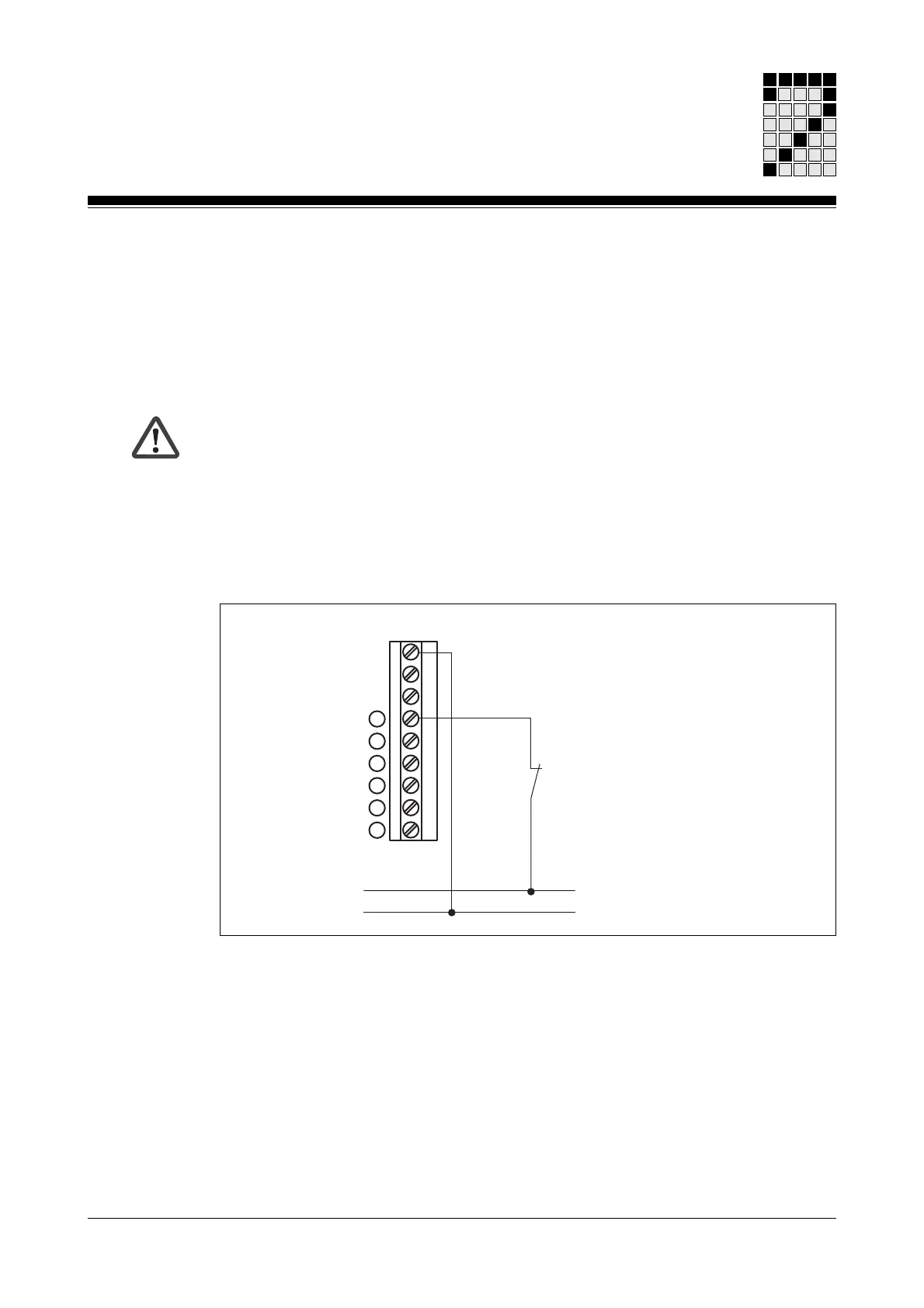

Example: Single-channel, failsafe input device, without test pulse
Features:
• The input device must be approved for failsafe applications.
• Please read the instructions provided with the input device.
CAUTION!
A short circuit in the cable between the input device and input with the 24
VDC line or between adjacent inputs will not be detected. Depending on
the type of input device connected, this could create a risk to both
personnel and machinery (e.g. E-STOP). Always ensure that the unit is
suitably wired to eliminate the risk of short circuits.
Please ensure safety regulations and EMC guidelines are met!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Pilz PSS Series Specifications

General

Category	Safety Equipment
Manufacturer	Pilz
Safety Standards	EN ISO 13849-1, IEC 61508, IEC 62061
Series	PSS
Safety Integrity Level	SIL 3
Communication Interfaces	Ethernet, PROFIBUS, PROFINET
Operating Voltage	24 V DC
Operating Temperature	0°C to +55°C (typical), others depending on model
Storage Temperature	-20°C to +70°C (typical), others depending on model
Protection Class	IP20
Application	Industrial safety applications
