Wiring the Inputs and Test Pulse Outputs
7-10 Operating Manual: PSS SB 3006-3 Series

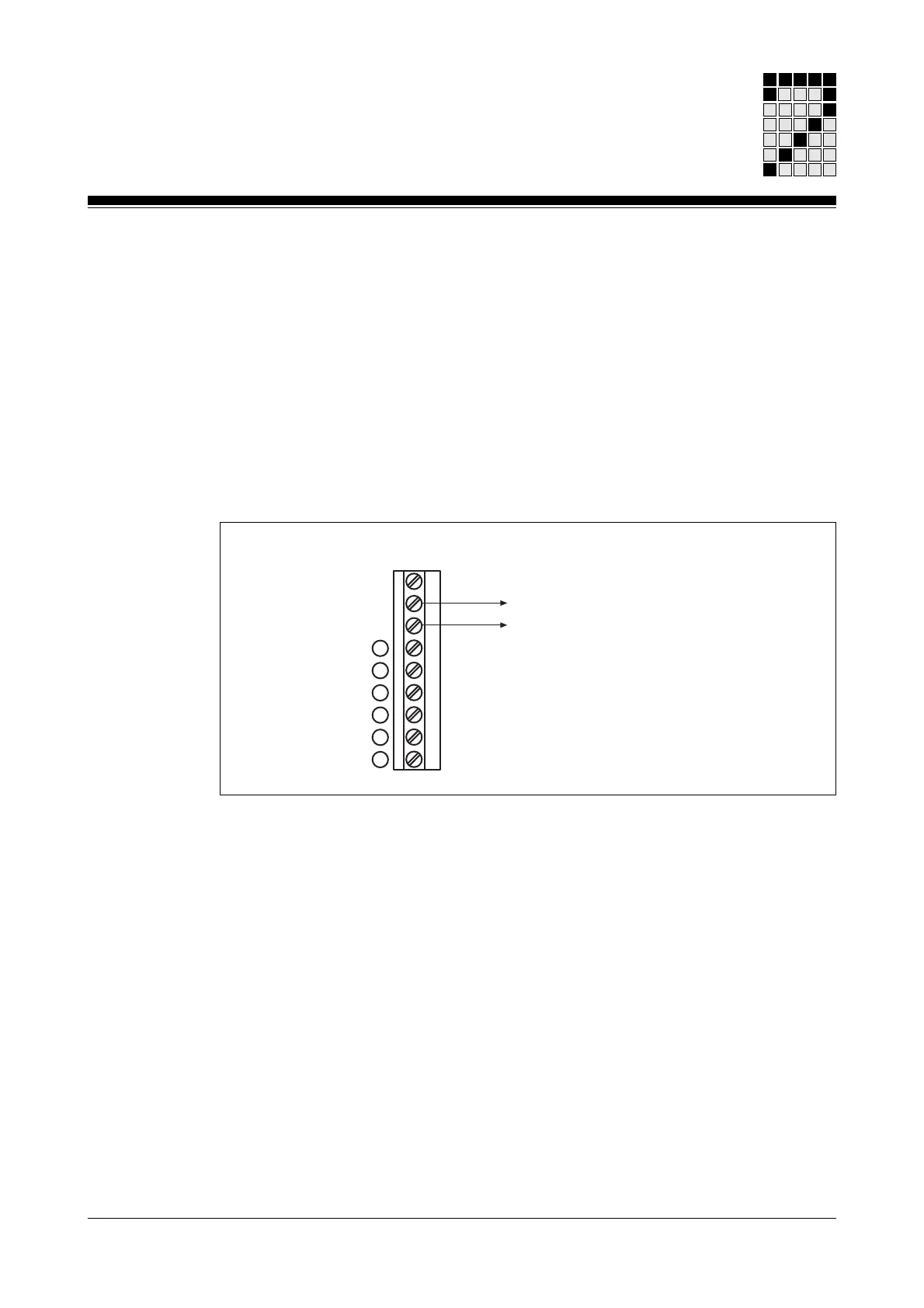

Dedicated test pulse outputs
Features:
• 2 test pulse outputs T0 and T1
• The test pulse must be allocated to the input via the configurator on the
programming device (see Programming Manual for the PSS-range).
• Test pulses cannot be addressed via the PSS process I/O-image.
• Test pulses must only be used for test signals.
Please ensure safety regulations and EMC guidelines are met!
Test pulse output T1
Test pulse output T0
0 V
T 0
T 1
I 0.0
I 0.1
I 0.2
I 0.3
I 0.4
I 0.5
X1
