Pioneer PDP-433CMX Service Manual

23
PDP-433CMX
Upper Rear Side
6
7
7 7 7
7
7
7
6
3
2
9
1
10
Upper
Side
4
4
5

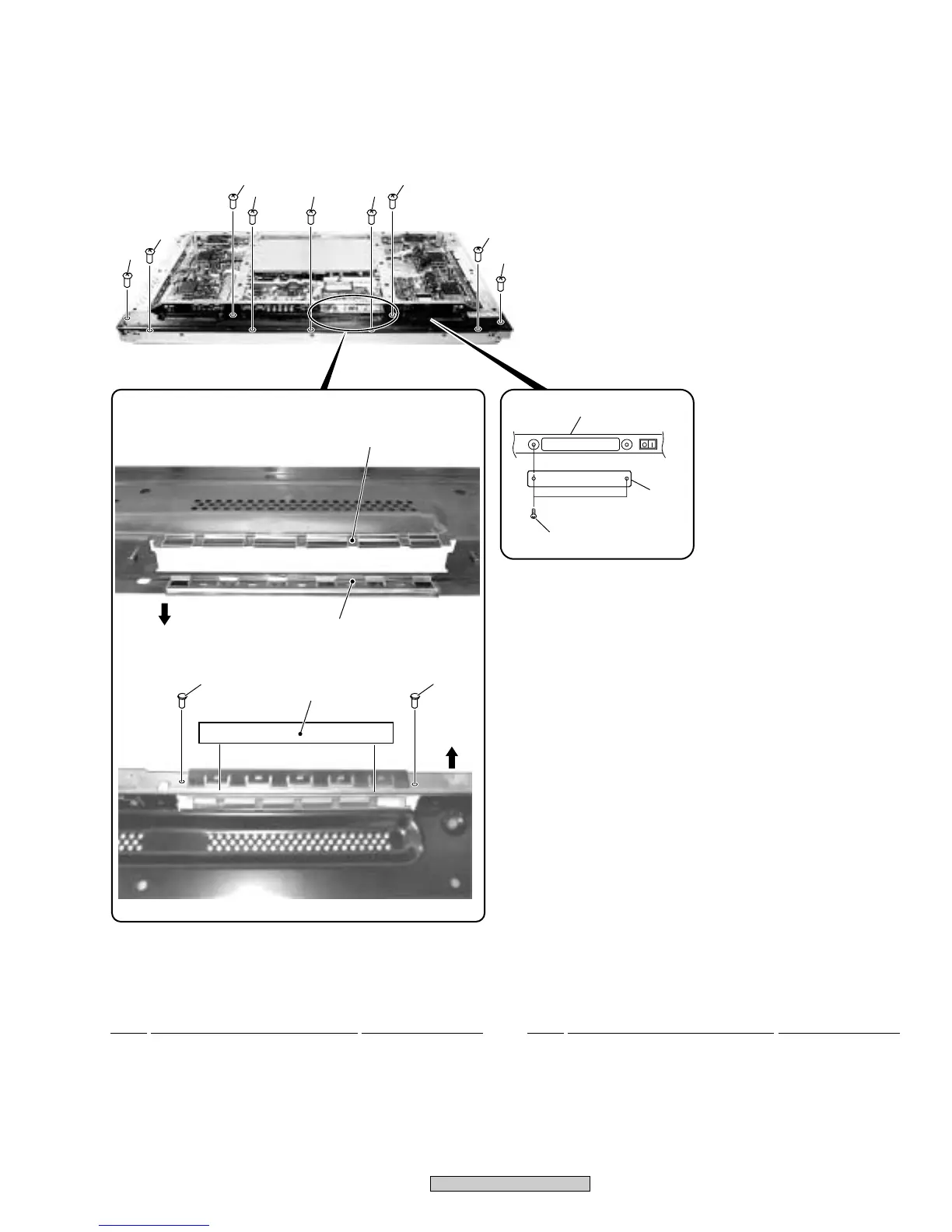

2.11 MIDDLE LAYER SECTION (4)
1 Terminal Panel CMX ANG2486
2 Slot Spring (Under) ABK1028
3 Slot Spring (Upper) ABK1031
4 Card Spacer AEC1898
5 Gascket S ANK1699
•
MIDDLE LAYER SECTION (4) PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
6 Screw AMZ30P060FZK
7 Screw TBZ40P080FZK
8 • • • • •
9 Expansion Slot Cover ANG2463
10 Screw BMZ30P060FZK
