29
PDP-433CMX

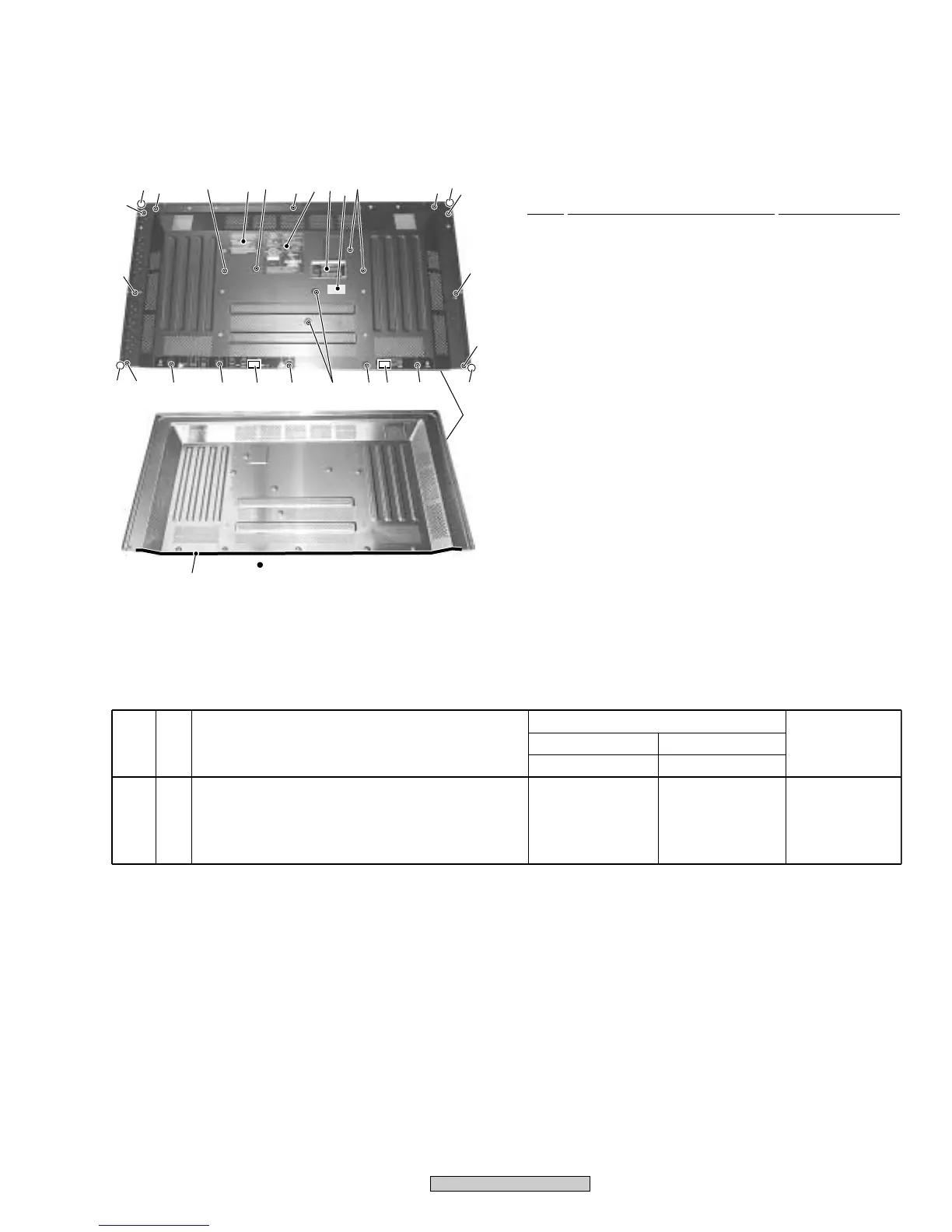

2.15 REAR SECTION
1 Rear Case (M) ANE1601
2 Gascket A ANK1694
3 Screw AMZ30P060FZK
4 Screw TBZ40P080FZK
5 Cleaning Label AAX2751
NSP 6 Name Label See Contrast table (2)
7 Bolt Caution Label AAX2852
8 Terminal Display Label R (43) AAX2878
9 Terminal Display Label L (43) See Contrast table (2)
10 Rear Corner Label AAX2862
11 Korean Label See Contrast table (2)
(1) REAR SECTION PARTS LIST
Mark No. Description Part No.
1
2
5
6
7
4
33 3
4
4
4
4
3
3 38 93
Bottom View
3
3
10
10
11
10
10
4
4
4
4
(2) CONTRAST TABLE
PDP-433CMX/LUCB and PDP-433MXE/YVLDK are constructed the same except for the following :
Mark No. Symbol and Description
Part No.
Remarks
PDP-433CMX PDP-433MXE
LUCB YVLDK
NSP
NSP
6
6
9
9
11
Name Label (43 CMX)
Name Label (43 MXE)
Terminal Display Label L (43) Gray
Terminal Display Label L (43E) Gray
Korean Label
AAL2430
Not used
AAX2936
Not used
Not used
Not used
AAL2431
Not used
AAX2938
AAX2944
To Next Page
