Pioneer PDP-433CMX Service Manual

45
PDP-433CMX

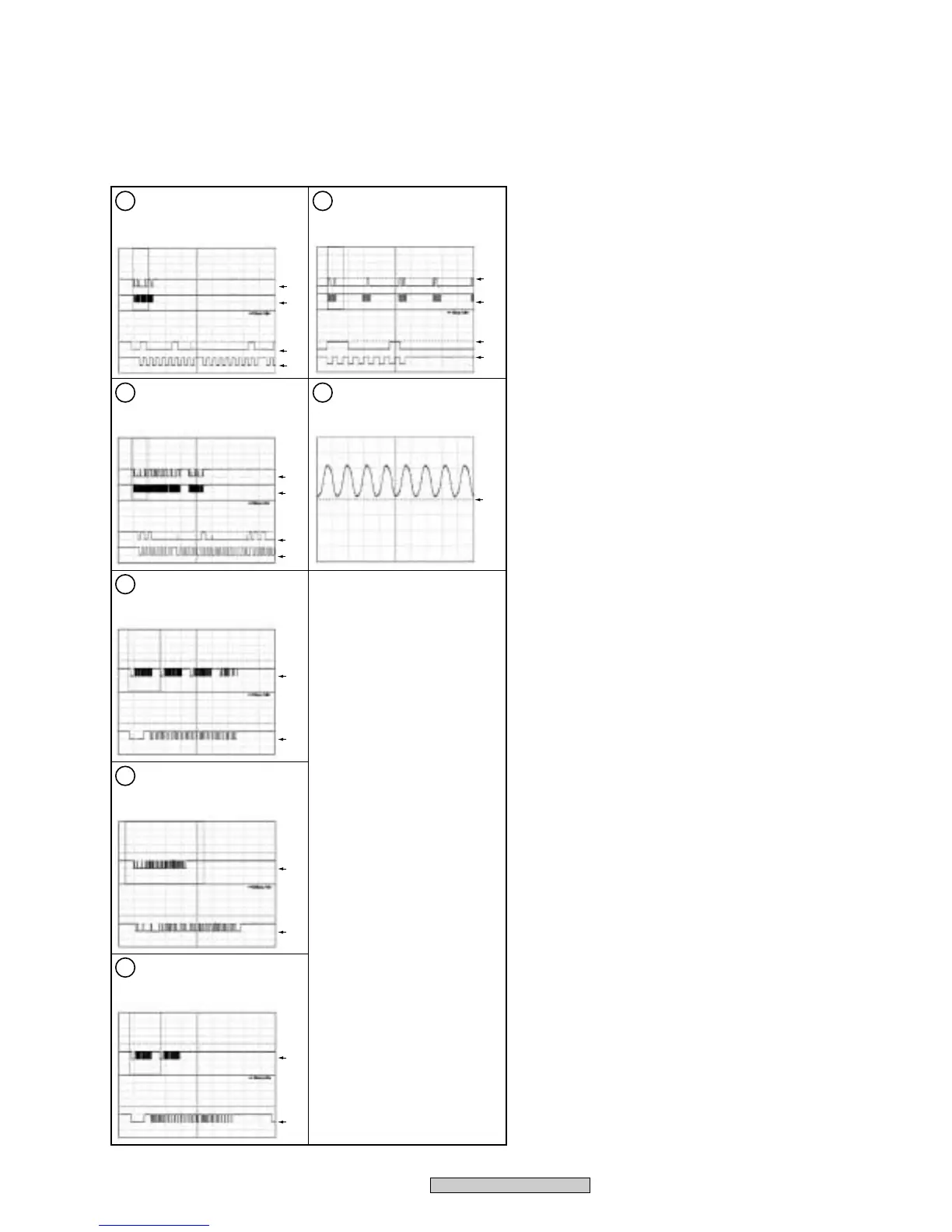

RGB ASSY
1
CH1 : IC5505 - pin 29 (SCL)
CH2 : IC5505 - pin 30 (SDA)
V: 5V/div. H: 500µsec/div.
2
CH1 : IC5505 - pin 81 ((E) SCL)
CH2 : IC5505 - pin 82 ((E) SDA)
V: 5V/div. H: 500µsec/div.
6
CH1 : IC5505 - pin 1 (TXD)
CH2 : IC5505 - pin 2 (CLK)
V: 5V/div. H: 100µsec/div.
7
IC5505 - pin 15 (XIN)
V: 2V/div. H: 50nsec/div.
3
IC5505 - pin 20 (KEYSCAN)
V: 5V/div. H: 50msec/div.
4
IC5505 - pin 35 (TXDO)
V: 5V/div. H: 1msec/div.
5
IC5505 - pin 18 (REM)
V: 5V/div. H: 50msec/div.
GND
GND
GND
GND
GND
CH1
CH1
CH2
CH2
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
CH1
CH1
CH1
CH1
CH2
CH2
CH2
CH2
3.2 WAVEFORMS
