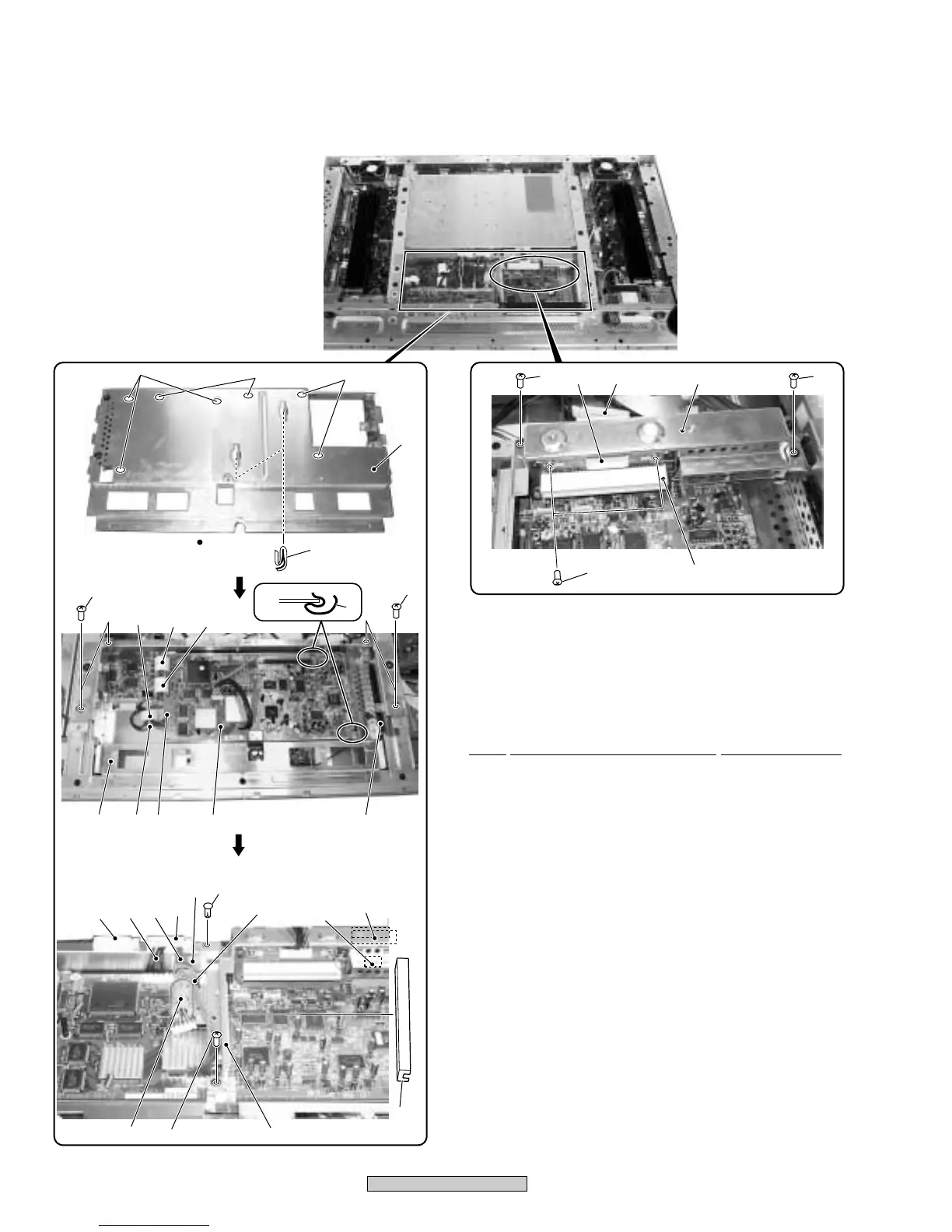

2.10 MIDDLE LAYER SECTION (3)
1 RGB Assy AWZ6744
2 SLOT CONNECTOR Assy AWZ6634
3 Spacer AEC1065
4 Card Spacer AEC1882
NSP 5 RGB Base ANA1662
6 Ground Finger ANG2468
7 Card Spacer AEC1899
8 Ferrite Core (L3) ATX1037
9 Ferrite Core Holder AEC1818
10 J112 13P Housing Wire ADX2784
11 Guide Rail EX AEC1900
12 Clamp AEC1884
13 J107 12P Housing Wire ADX2702
14 J109 Wire X ADX2787
15 Nyron Rivet AEC1671
16 • • • • •
17 Wire Saddle AEC1745
NSP 18 Video Stay AND1171
19 Ferrite Core (L2) ATX1039
20 Binder AEC-093
NSP 21 PCB Stay AND1170
22 Screw AMZ30P060FZK
23 Screw VBB30P100FNI
•
MIDDLE LAYER SECTION (3) PARTS LIST
Mark No. Description Part No.
To Next Page
