Pioneer PDP-433CMX Service Manual

141
PDP-433CMX
7.2 IC INFORMATION
¶ The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
•

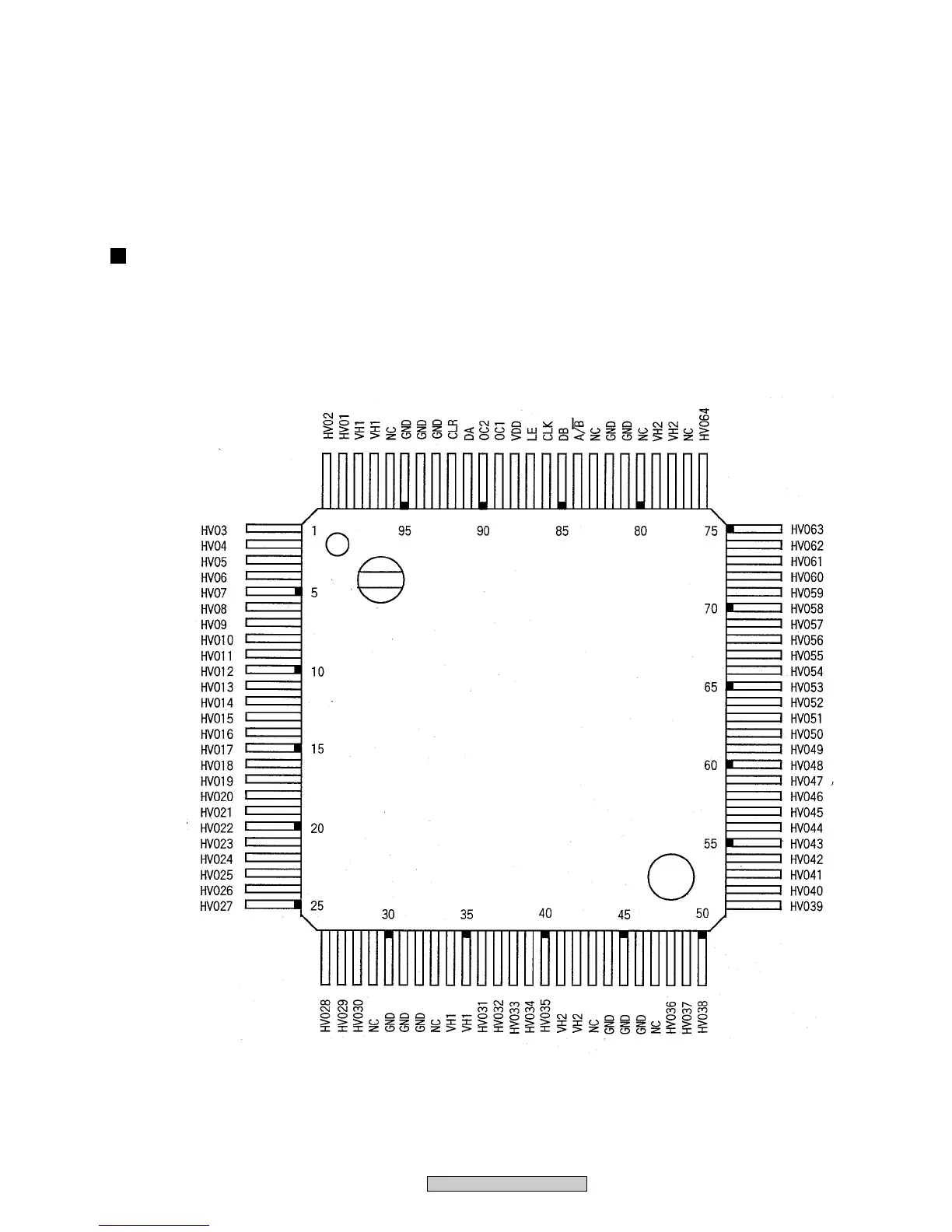

Pin Assignment (Top view)
•
List of IC
SN755860PJ, M30624FGAFP, HD64F2328VF, GAL22V10, M30624FGAFP, PD6358A, PST9246N, FS781BZB, ML6426CS-1,
CXA3516R, BA5417, STK795-460
SN755864APZP (SCAN A ASSY : IC6201 - IC6206)
SN755864APZP (SCAN B ASSY : IC6001 - IC6006)
• Scan IC
