140
PDP-433CMX
1234
C
D
F
A
B
E
1
23
4
1

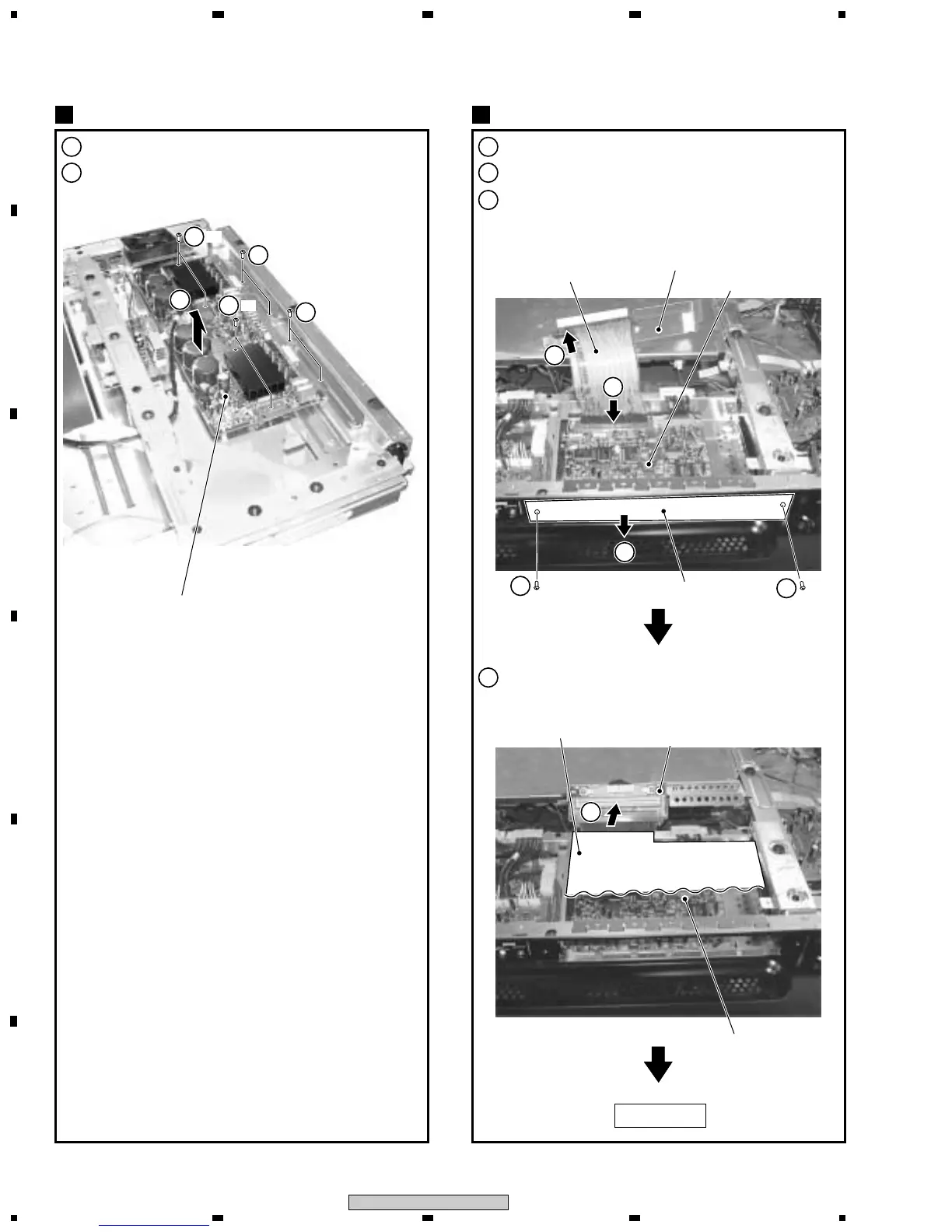

Remove the Rear Case (M). (Screws × 20)
2
Remove the X DRIVE Assy. (Connector, screws × 8)
X DRIVE Assy
2
2
SLOT CONNECTOR Assy
Jig Cable
(GGD1035)
RGB Assy
Video Card
Video Card
SLOT CONNECTOR Assy
RGB Assy
3
2
3
1
Remove the rear case (M). (Screws × 20)
2
Remove the video card. (Screws × 2)
3
Remove the SLOT CONNECTOR Assy from the RGB Assy
and reconnect it with the jig cable (GGD1035).
4
Reconnect the video card.
(Do not insert it into the slot.)
Diagnosis of the Video Card (PDA-5002)
Diagnosis
4
X DRIVE Assy
2
×2
2
×2
2
×2
2
×2
2
To Next Page
