PDP-433CMX

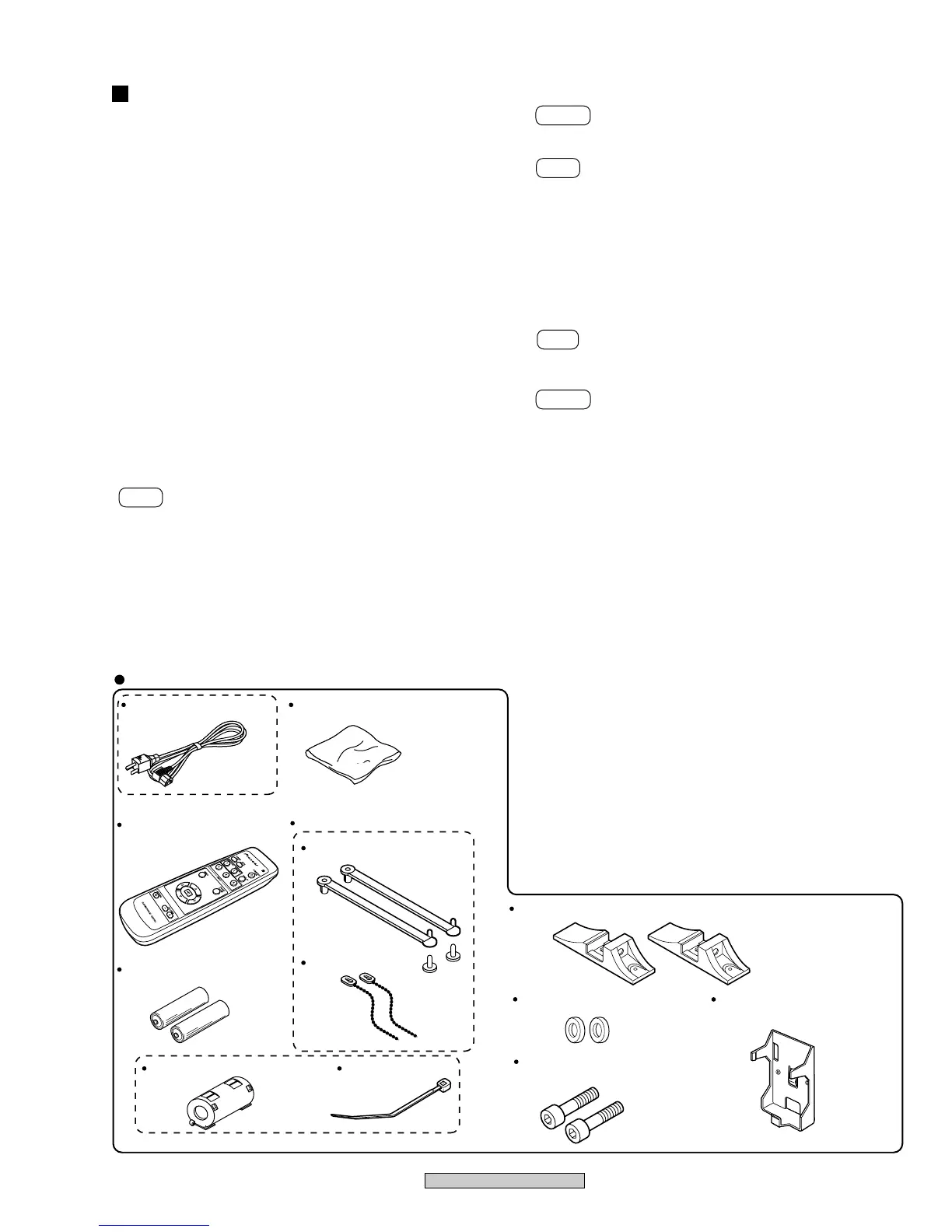

Accessories
Power Cord (ADG1208)
Remote Control Unit
(AXD1459)
Binder Assy (AEC1758)
PDP-433MXE only
PDP-433CMX only
Dry Cell Battery (R6P, AA)
Ferrite Core (ATX1031) Cable Tie
Display Stand (×2) (AMR3264)
Washer (×2) (WB80FZB)
Hex Hole Bolts (×2)
(SMZ80H400FZB)
Remote Control Unit Holder
(AMR3268)
Cleaning Cloth (for wiping front panel)
(AED1197)
Speed Clamp (×2)
Bead Bands (×2)
1. SPECIFICATIONS
PLASMA DIAPLAY (PDP-433CMX and PDP-433MXE)
General
Light emission panel ............ 43 inch plasma display panel
Number of pixels .............................................. 1024 x 768
Power supply .... AC 100 - 120 V, 50/60 Hz (PDP-433CMX)
Power supply .... AC 100 - 240 V, 50/60 Hz (PDP-433MXE)
Rated current .................... 2.98 A - 2.48 A (PDP-433CMX)
Rated current .................... 2.98 A - 1.24 A (PDP-433MXE)
Standby power consumption .......... 0.9 W (PDP-433CMX)
Standby power consumption .............. 1 W (PDP-433MXE)
External dimensions ........ 1070 (W) x 630 (H) x 98 (D) mm
............................. 42-1/8 (W) x 24-13/16 (H) x 3-7/8 (D) in.
(including display stand)
...................................... 1070 (W) x 653 (H) x 300 (D) mm
....................... 42-1/8 (W) x 25-23/32 (H) x 11-13/16 (D) in.
Weight............................................... 31.5 kg (69 lbs. 7 oz)
(including display stand) .................. 32.1 kg (70 lbs. 12 oz)
Input/output
Video
INPUT 1
Input Mini D-sub 15 pin (socket connector)
RGB signal (G ON SYNC compatible)
RGB ... 0.7 Vp-p/75 Ω/no sync.
HD/CS, VD ... TTL level
/positive and negative polarity
/2.2 kΩ
G ON SYNC
... 1 Vp-p/75 Ω/negative sync.
*Compatible with Microsoft’s Plug & Play
(VESA DDC1/2B)
Output Mini D-sub 15 pin (socket connector)
75 Ω/with buffer
INPUT 2
Input BNC jack (x5)
RGB signal (G ON SYNC compatible)
RGB ... 0.7 Vp-p/75 Ω/no sync.
HD/CS, VD ... TTL level
/positive and negative polarity/
75 Ω or 2.2 kΩ
(impedance switch)
G ON SYNC ...
1 Vp-p/75 Ω/negative sync.
Audio
Input AUDIO INPUT (for INPUT 1/2)
Stereo mini jack
L/R ... 500mVrms/more than 10 kΩ
Output AUDIO OUTPUT
Stereo mini jack
L/R ... 500mVrms (max)/less than 5 kΩ
SPEAKER
L/R ... 8 – 16 Ω/2W +2W (at 8 Ω)
Control
RS-232C ... D-sub 9 pin (pin connector)
COMBINATION IN/OUT
... Mini DIN 6 pin (x2)
CONTROL IN/OUT ... monaural mini jack (x2)
Accessories
Power cord ...................................... 1 (PDP-433CMX Only)
Remote control unit ......................................................... 1
Remote control unit holder .............................................. 1
AA (R6) batteries .............................................................. 2
Cleaning cloth ................................................................... 1
Speed clamps ................................................................... 2
Bead bands ...................................................................... 2
Warranty .......................................... 1 (PDP-433CMX Only)
Operating Instructions...................................................... 1
Display stands .................................................................. 2
Washers ........................................................................... 2
Hex hole bolts (M8X40).................................................... 2
Ferrite core ...................................... 1 (PDP-433MXE Only)
Cable tie .......................................... 1 (PDP-433MXE Only)
÷ Due to improvements, specifications and design are subject to
change without notice.
