PDP-433CMX
Installation using the supplied display stand
Be sure to fix the supplied stand to the installation surface.
Use commercially available M8 bolts that are 25 mm longer
than the thickness of the installation surface.

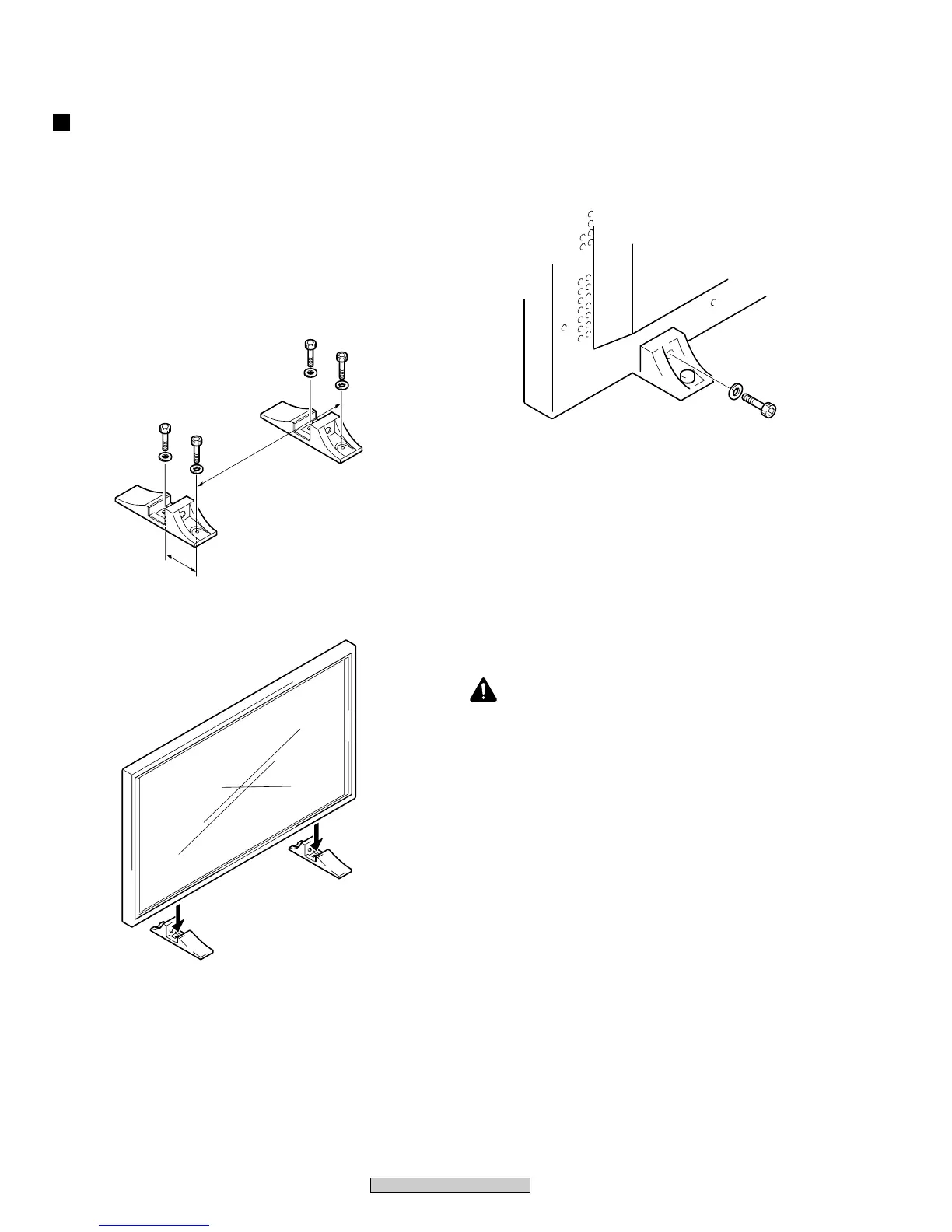

1 Fix the supplied stand to the installation surface at
each of the 4 prepared holes using commercially
available M8 bolts .
2 Set this unit in the stand.
Front
Rear
768 mm (30-
1
/4 in.)
110 mm (4-
5
/16 in.)
Use a 6 mm hex wrench
to bolt them.
CAUTION
Because this unit weighs about 88 lbs 3 oz (about 30 kg) and the
lack of depth makes it fairly unstable, please use 2 people or more
when packing, carrying or installing.
3 Fix this unit using the supplied washer and bolt.
INSTALLATION OF THE UNIT
To Next Page
