Pioneer PDP-433CMX Service Manual

124
PDP-433CMX
1234
C
D
F
A
B
E
1
23
4
7. GENERAL INFORMATION
7.1 DIAGNOSIS

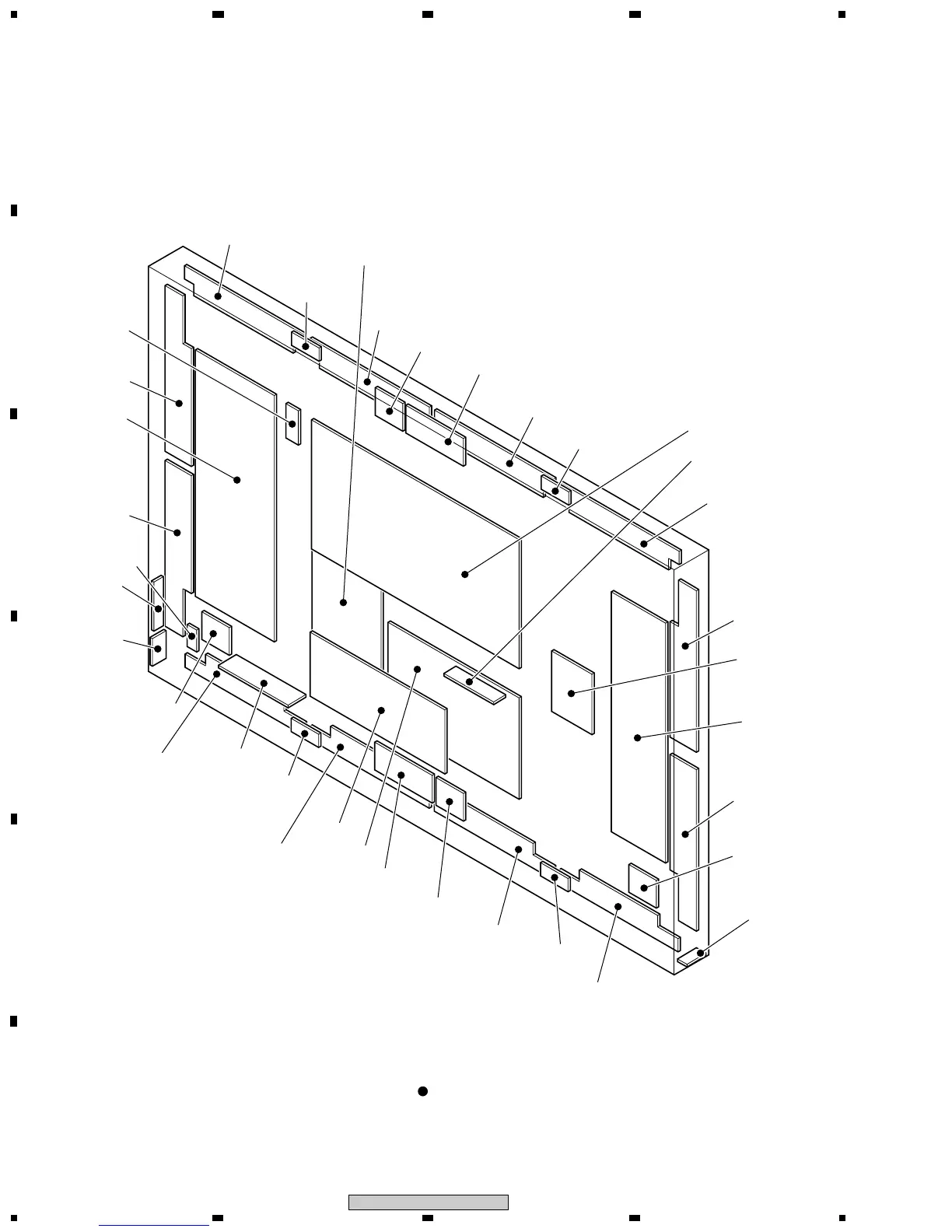

7.1.1 CONFIGURATION OF THE PC BOARD
Rear View
DIGITAL VIDEO
Assy
BRIDGE B
Assy
ADR CONNECT D
Assy
SP OUT R
Assy
SP OUT L
Assy
SIDE KEY
Assy
CONTROL
Assy
KEY
CONNECTOR
Assy
IR Assy
MX AUDIO
Assy
X CONNECTOR
(A) Assy
X CONNECTOR
(B) Assy
MX LED
Assy
X DRIVE
Assy
ADR CONNECT A
Assy
Y DRIVE
Assy
SCAN (A)
Assy
THERMAL
SENSOR
Assy
BRIDGE A
Assy
SCAN (B)
Assy
ADR CONNECT B
Assy
RESONANCE
Assy
SUB ADDRESS A
Assy
SUB ADDRESS B
Assy
RESONANCE
Assy
ADR CONNECT C
Assy
ADR CONNECT D
Assy
ADR CONNECT C
Assy
I/O Assy
RGB Assy
SLOT CONNECTOR
Assy
SW POWER SUPPLY
Module
BRIDGE C
Assy
BRIDGE D
Assy
ADR CONNECT B
Assy
ADR CONNECT A
Assy
