Pioneer PDP-433CMX Service Manual

28
PDP-433CMX

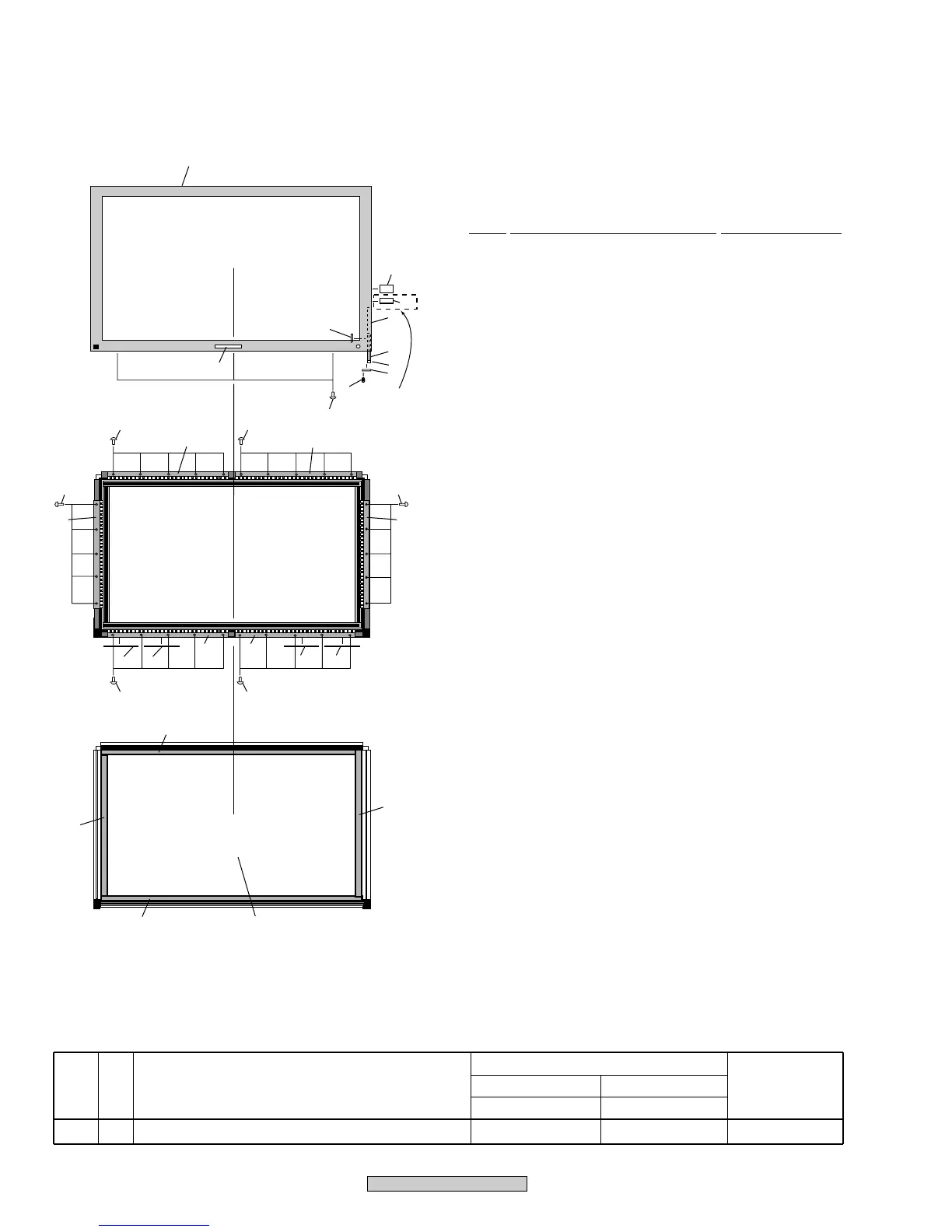

2.14 FRONT CASE SECTION
1 SIDE KEY Assy AWZ6637
2 Front Case Assy 43 (M) AMB2712
3 Rivet AEC1877
4 Flexible Seal AEH1036
5 J213 Flexible Cable ADD1195
6 Ferrite Core (L4) ATX1043
7 Lead Cover (MX) AMB2703
8 Pioneer Badge AAM1091
9 • • • • •
NSP 10 Panel Holder (43) ANG2487
11 Spacer AEC1896
12 • • • • •
13 Panel Cushion V (43) AED1201
14 Panel Cushion H (43) AED1200
15 Protect Panel Assy (43) AMR3303
16 Screw ABZ30P050FZK
17 Screw VMZ30P060FZK
18 Energy Star Label AAX2856
NSP 19 Display Label See Contrast table (2)
(1) FRONT CASE SECTION PARTS LIST
Mark No. Description Part No.
2
18
3
17
8
10
10
10
16
16
7
6
5
4
1
19
10
11
16
13
13
15
14
14
16
16
10
10
16
11
11
11
PDP-433CMX
Only
(2) CONTRAST TABLE
PDP-433CMX/LUCB and PDP-433MXE/YVLDK are constructed the same except for the following :
Mark No. Symbol and Description
Part No.
Remarks
PDP-433CMX PDP-433MXE
LUCB YVLDK
NSP 19 Display Label AAX2836 Not used
