158
Integrator Mode
1 AUDIO INPUT
(INPUT1/2/5)
....Stereo mini jack
2 AUDIO INPUT
(INPUT3) ★....Pin jack
INPUT1
SUB VOLUME
INPUT2
SUB VOLUME
INPUT5
SUB VOLUME
INPUT3
SUB VOLUME
INPUT
SELECTOR
POWER
AMPLIFIER
VOLUME

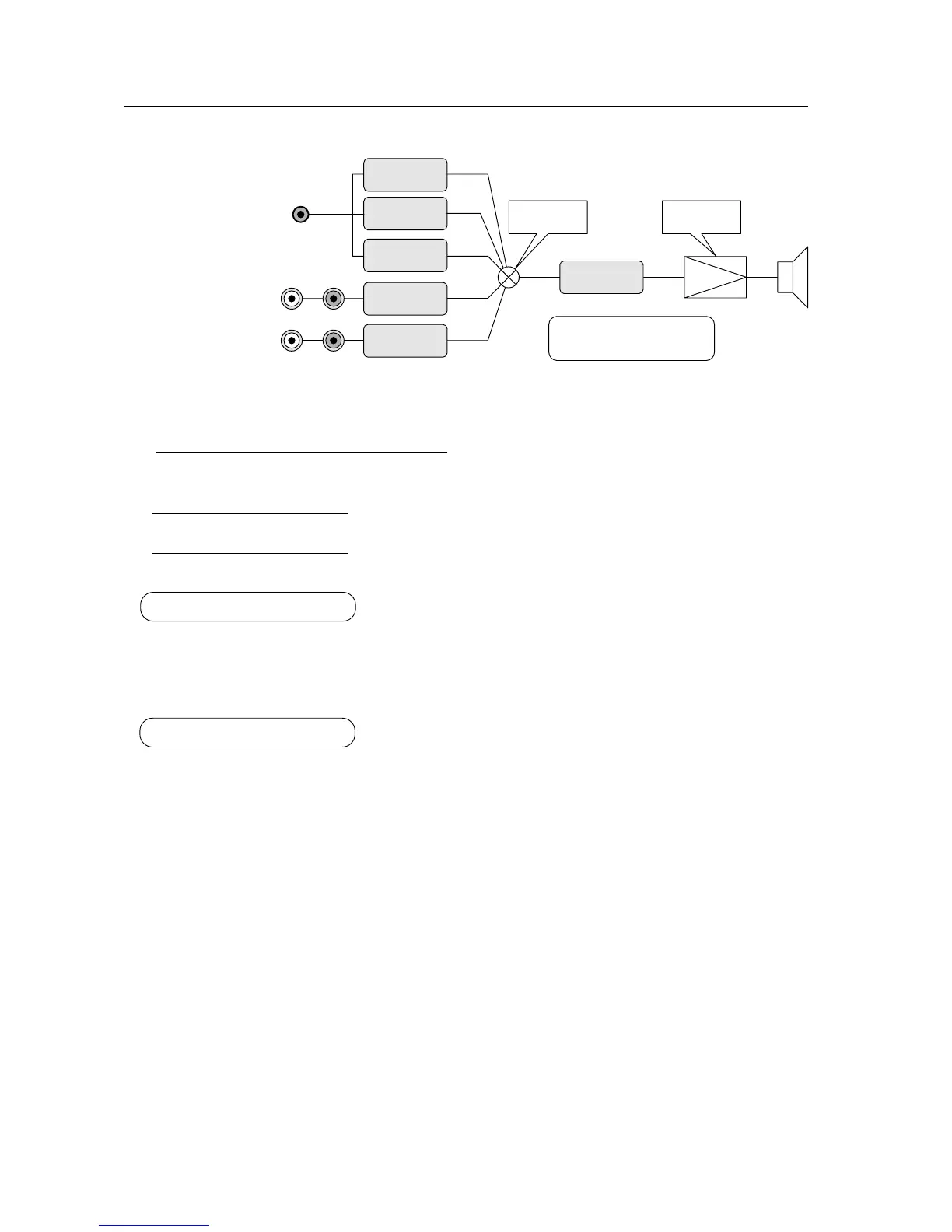

Audio block diagram
(conceptual diagram)
INPUT4
SUB VOLUME
3 AUDIO INPUT
(INPUT4) ★....Pin jack
This unit is equipped with 3 audio input systems.
<PDP-503CMX/PDP-503MXE and PDP-433CMX/PDP-433MXE>
1 AUDIO INPUT (INPUT1, 2 and 5): Stereo mini jack
= Is selected in common when PICTURE INPUT 1, 2 or 5 has been selected.
<PDA-5002>
2
AUDIO INPUT (INPUT3): Pin jack
= Is selected when PICTURE INPUT 3 has been selected.
3 AUDIO INPUT (INPUT4): Pin jack
= Is selected when PICTURE INPUT 4 has been selected.
Use of SUB VOLUME: Example 1
When a personal computer is connected to INPUT 1 (picture input only) and a DVD player has been connected to
INPUT2 (pictures and sound):
= Will reproduce the DVD player’s sound when PICTURE INPUT 1 or 2 has been selected.
When sound is not necessary with personal computer input (INPUT 1), set the SUB VOLUME for INPUT 1 to 0.
Use of SUB VOLUME: Example 2
When a DVD player is connected to INPUT 3 (pictures and sound) and a personal computer to INPUT 5 (pictures and
sound):
= When the difference in volume between the DVD player and personal computer is distracting, adjust SUB VOLUME
for whichever source is louder.
(★: applies only when equipped with PDA-5002)
