14
Controls and Connectors
~=-
L
AC INLET
SPEAKER
8Ω ~16Ω
+ –
@! # $ % ^
AUDIO
INPUT5
INPUT3
S-VIDEO
RL
DIGITAL RGB
AUDIO
INPUT4
VIDEO OUTPUT
RL
1234 5 678
9
0
IN OUT
CONTROL
COMBINATION
IN OUT
RS-232C
ANALOG RGB (ANALOG RGB)
INPUT1
OUTPUT
GBRHDVD
(ON SYNC) (H/V SYNC)
Ô
75 2.2
Ω kΩ
INPUT
(INPUT1/2)
OUTPUT
R
SPEAKER
8Ω ~16Ω
+ –
INPUT2 AUDIO

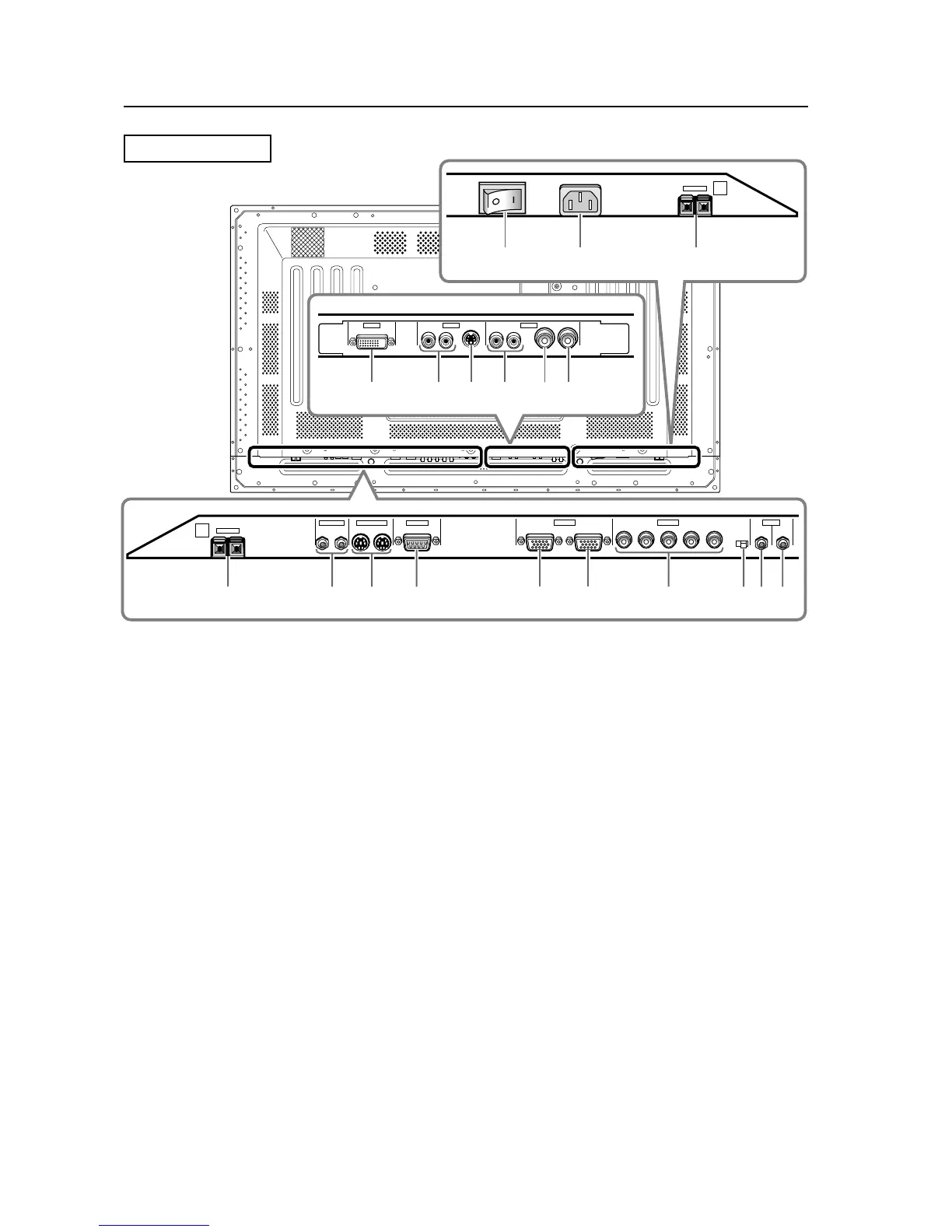

Connection Panel
Plasma Display Section
1 SPEAKER (R) terminal
For connection of an external right speaker.
Connect a speaker whose impedance is 8 -16 Ω.
2 CONTROL IN/OUT (monaural mini jacks)
For connection of PIONEER components that bear
the Î mark. Making CONTROL connection enables
control of the main unit as a component in a
system.
(NOTE) The main unit cannot be operated by the
wired remote control RV-V107.
3 COMBINATION IN/OUT
Used when a number of sets are controlled
collectively. (See “5.6 Combination Connection”)
Please use a mini DIN 6 pin cable (straight, fully
connected) available on the market as the
connecting cable.
(NOTE) It has no ABL linking function. And it is not
compatible with the RM-V4000V or other
multi-projection. It is not output when the
main power is off.
4 RS-232C
This terminal is used for adjustments by a PC (EIA-
232-F standard).
(See “5.5 RS-232C Adjustment Mode”)
5 INPUT1 (mini D-sub 15 pin)
For connection of components that have RGB or
component
★
(applies only when equipped with PDA-
5002) output jacks such as a personal computer,
DVD player, or external RGB decoder.
6 OUTPUT (INPUT1) (mini D-sub 15 pin)
Use the OUTPUT (INPUT1) connector to output the
video signal to an external monitor or other
component.
(NOTE) • The video signal will not be output from
the OUTPUT (INPUT1) connector when
the main power of this display is off or in
standby mode.
• When connecting the main units in a
series, please set the number that can be
connected as a total of 5 including the set
that the signal is initially input to. But a
condition for performing separate sink or
composite sink input and output is that
the sink level of the source used is at
least TTL level at 2.2kΩ terminal time.
To Next Page
