28

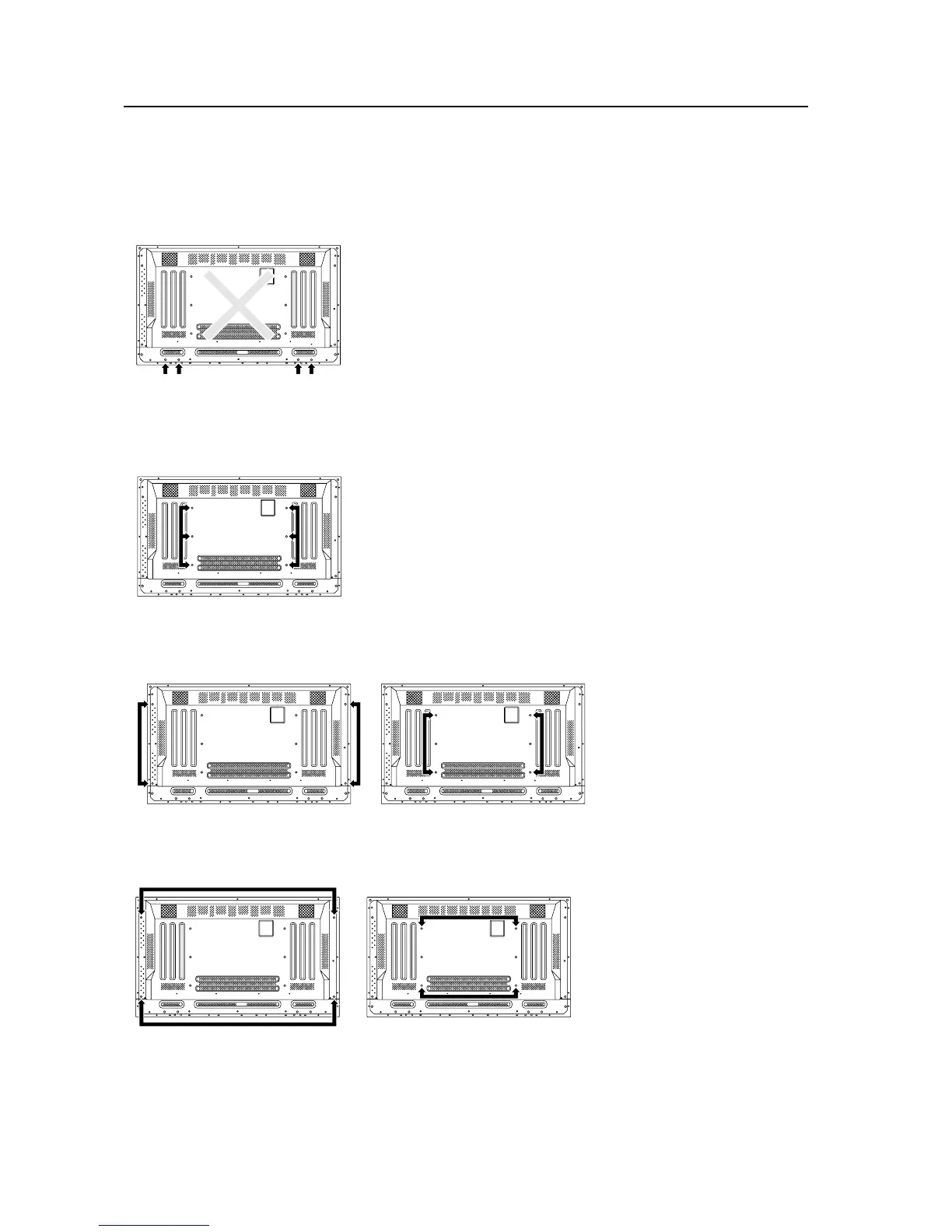

Installation Conditions
This unit is designed to be mounted using four bolt holes. For additional safety, we recommend securing it at four to six
points on opposite sides of the horizontal and vertical center lines, as shown in the illustration below. Do not secure the
unit at four points arranged in a single row, as shown below.
Methods for securing - Unfavorable examples
Methods for securing - Favorable examples
A. Secured at six points
B. Secured at four points (with mounting hardware attached to the sides)
[433CMX/433MXE]
C. Secured at four points (with mounting hardware attached horizontally)
(Take proper precautions to prevent pinching the power cord or signal cables.)
