Wall-mounted tiltable plasma display hardware PDK-5011
4.6.5 Measure to prevent shakiness when the unit is installed at a slight inclination
With this installation hardware, for structural reasons,
shakiness occurs in the forward -backward direction at
the top of the Plasma Display when the unit is installed at
a slight inclination up to 5° from the vertical position. If
this shakiness is a problem, reduce it by following the
instructions provided below.

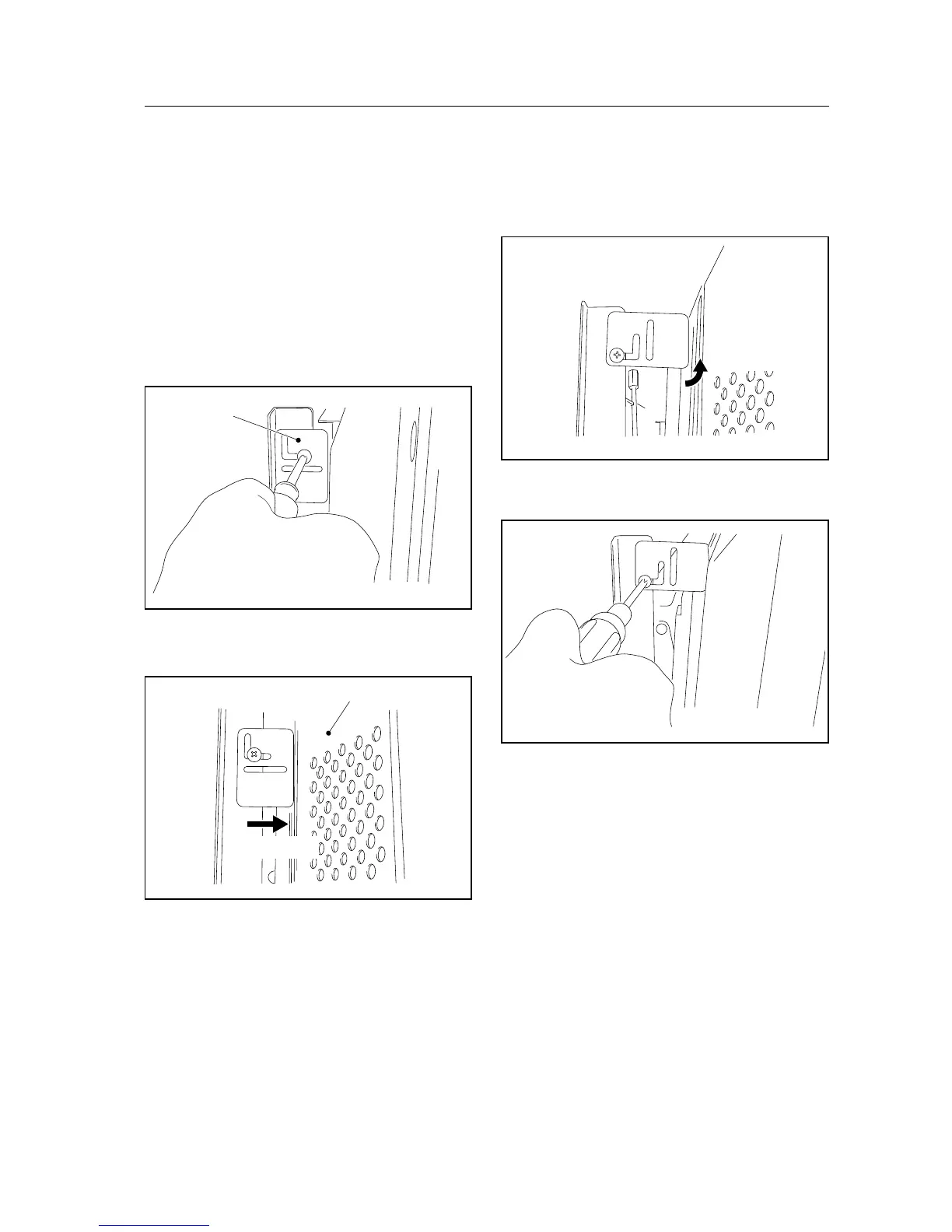

1 Use a Philips driver (+) to loosen (left, right) the
installation screws on the resin plate used as a guideline
when installing it vertically (left, right) so that the resin
plate can move freely.
2 Slide the resin plate (left, right) forward along the slit
to the rear cover of the plasma display.
3 If, when it is moved only forward, the distance is too
short, rotate the resin plate to use the long-side
direction.
4 After setting the resin plate (left, right) in position,
retighten the screws that you loosened at step (1).
You can use above method to reduce the shakiness that
occurs when it is installed at a slight angle.
Resin plate
Rear cover of the plasma display
Slide forward
Rotated
[503CMX/503MXE : 433CMX/433MXE]
