70

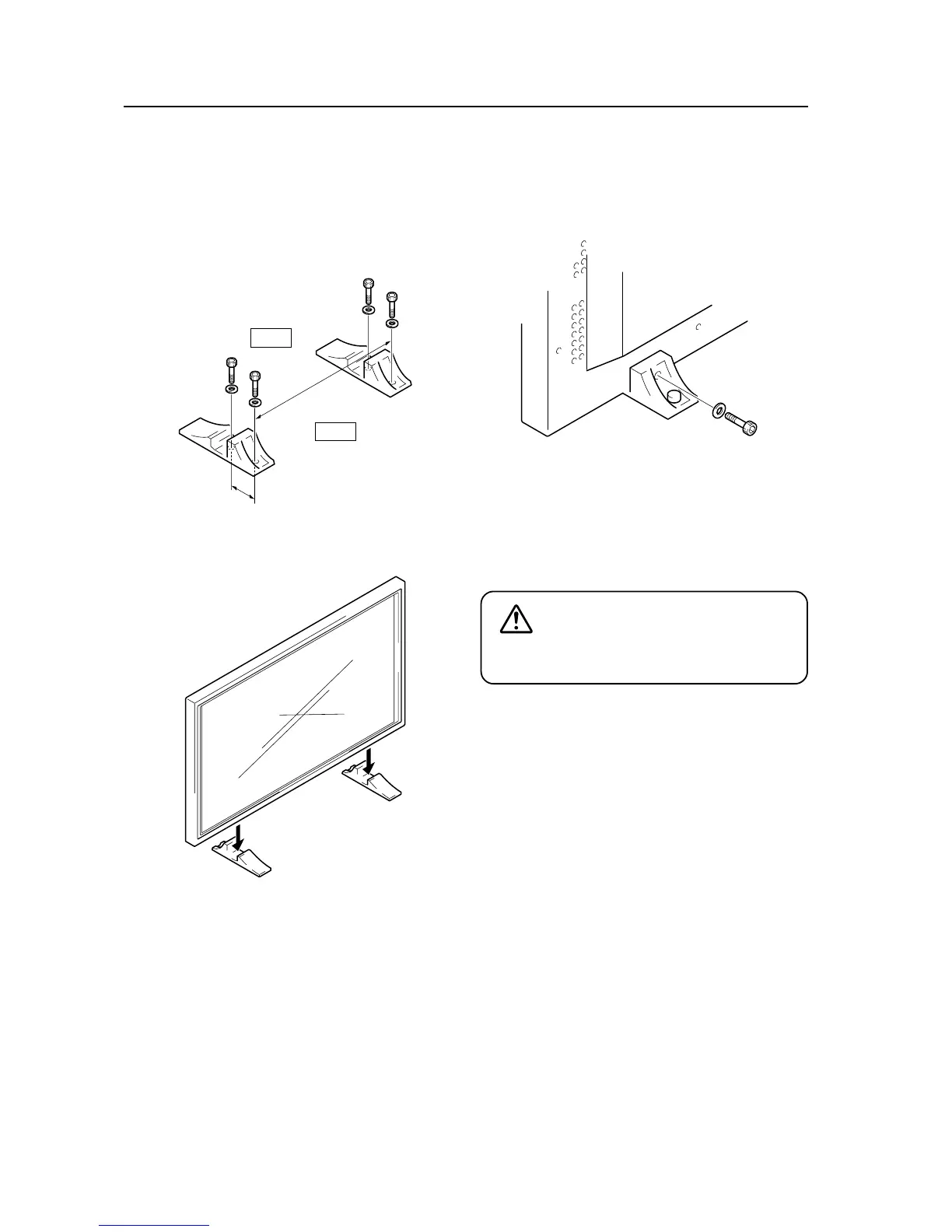

4.3 Installation of the Attachment Stand
Installation of the Attachment Stand
1.
Make sure to secure the attachment stand to the
display platform using M8 bolts (commercially
available) 25 mm longer than the thickness of the
platform.
*
1
: PDP-503CMX/PDP-503MXE
*
2
: PDP-433CMX/PDP-433MXE
2.
Insert the unit into the stand.
3.
Tighten the bolt against the washer so as to secure
the unit.
The unit weights 30 kg. or more, and its
thinness makes it unstable. Therefore, it
should be unpacked, carried and installed
by two or more persons.
CAUTION
Front
Rear
798mm*
1
768mm*
2
110
Use a 6 mm hexagonal
wrench to tighten the bolt.
[503CMX/503MXE : 433CMX/433MXE]
To Next Page
