77
Tabletop Stand: PDK-TS01
B
B´
B
C
A
B´
C
´
A
´
C
A
A
´
C
´

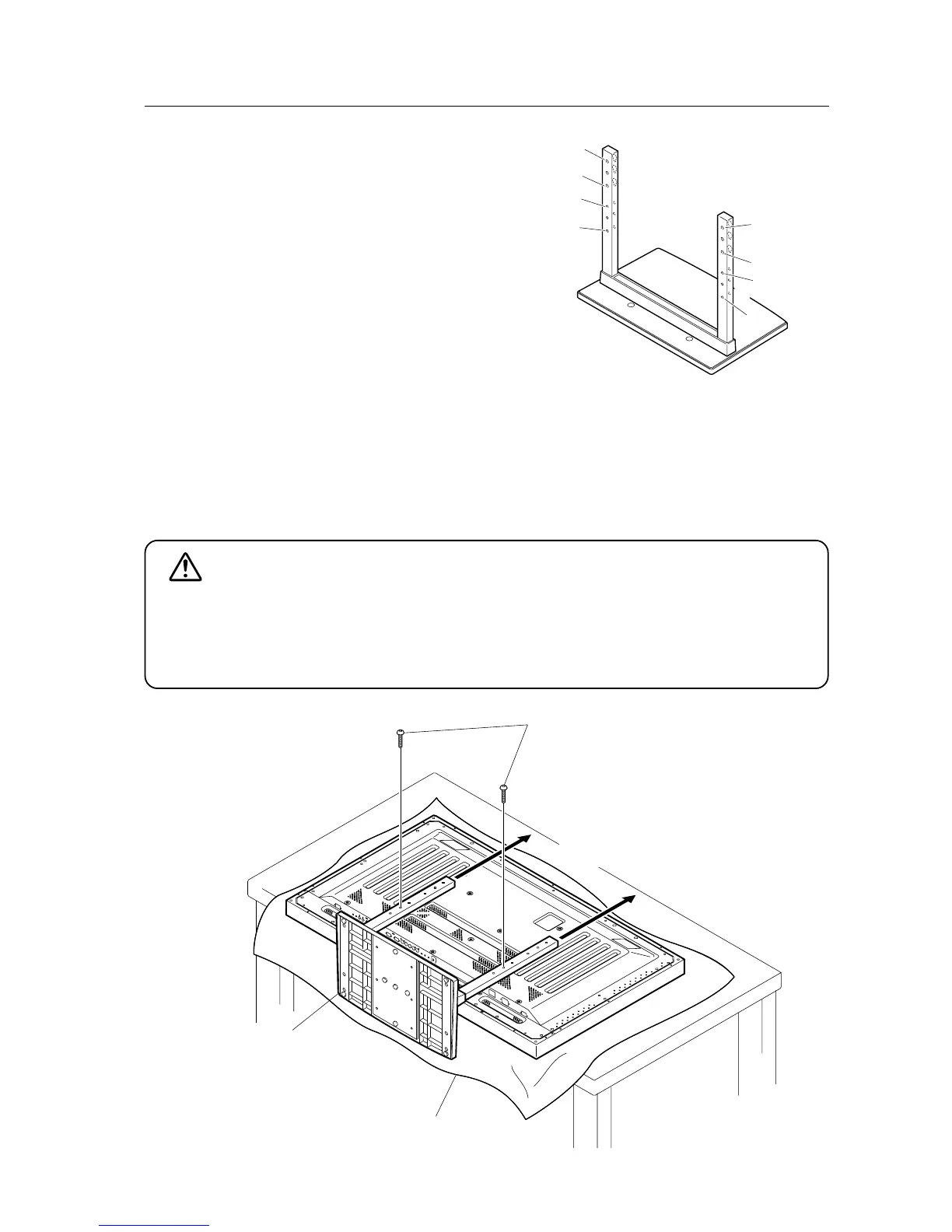

Regarding the stand pipe screw holes when the stand
is used as a desktop stand
Stand pipe screw holes when the stand is used as a desk-
top stand
• Specifications.............................................. Normal use
• Screw holes used with stand orientation
............................. B, B' (PDP-503CMX/PDP-503MXE)
............................. A, A' (PDP-433CMX/PDP-433MXE)
Note: Screw holes C and C' are for attaching options avail-
able separately.
2 Hook the stand pipe holes B (PDP-503CMX/PDP-503MXE) or holes A (PDP-433CMX/PDP-433MXE) onto the screw
heads of the installation bolts 1, then slide the stand upwards to the main plasma display until it engages the
installation bolts 1 (once put together with the display, the stand will slides no more than 19 mm).
3 Pass the installation bolts 2 (M8 × 40) through the stand pipes and tighten the installation bolts securely with the
included hexagonal wrench (holes should be used in the proper, B, B').
4 Tighten the installation bolts 1 securely with the hexagonal wrench provided.
1. Place a sheet or protective cover to protect the display from scratches or damage.
2. Assemble only with the plasma display lying flat on a table or similar surface.
3. Do not apply excessive pressure and tighten the bolts more than necessary.
4. Move the stand so that the stand screw holes and the nuts that connect the main display line up
correctly.
5. The display weighs approximately 30 kilograms (66 lb.) or more and has little depth, making the
display very unstable. For this reason at least two people are necessary for its setup and installation.
Installation bolts 2 (M8 × 40)
Table top stand
Sheet
Slide the stand
Notes
[503CMX/503MXE : 433CMX/433MXE]
