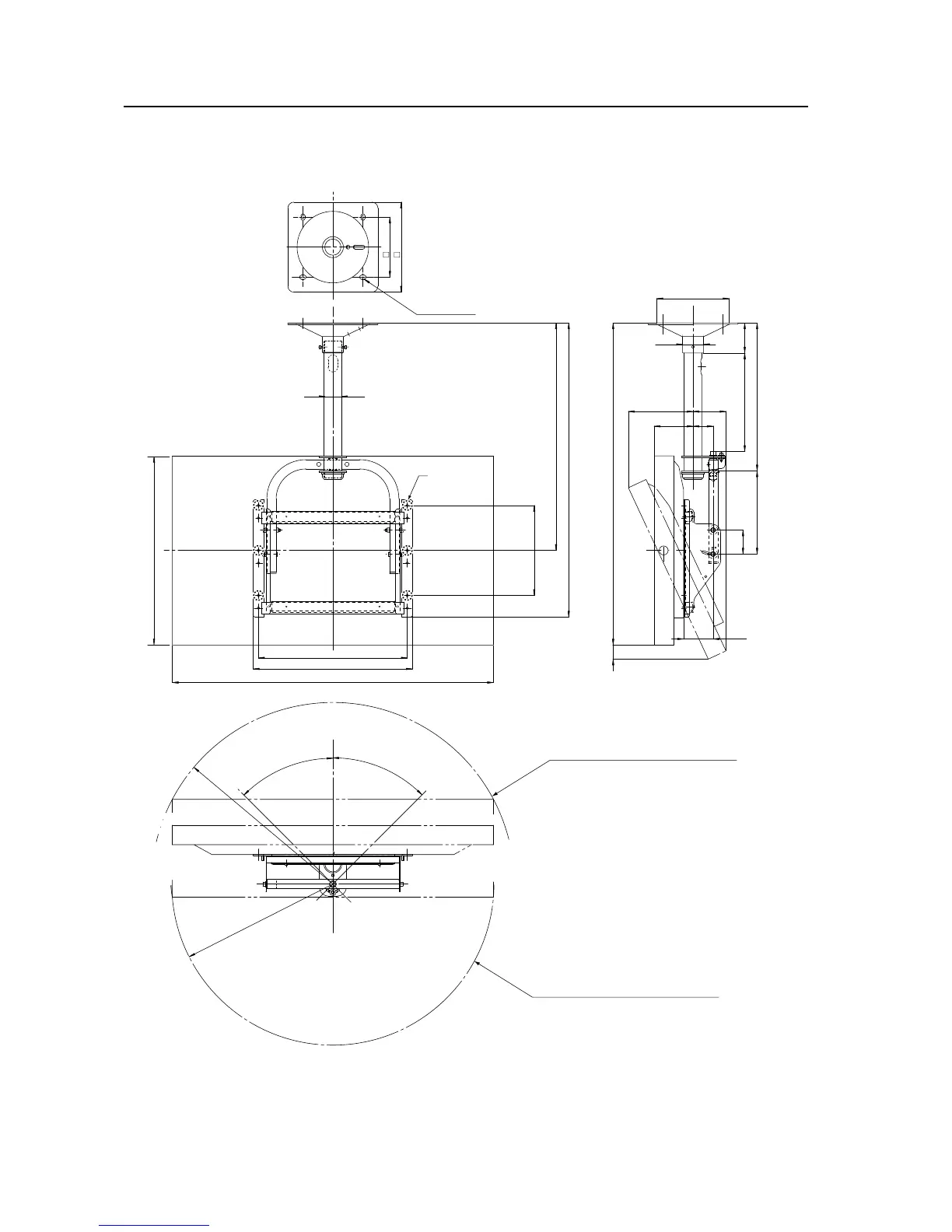

Plasma Display Ceiling Suspension Hardware: PDK-5012
7 When using plasma display monitor PDP-433CMX or PDP-433MXE
(Unit: mm)
4-φ13.5X22
129
98
47 1073
110
67
80
277
(493)
329 100
φ
70
φ240.5
216
300
200
1070
758
980
496
(530)
300
R605
R53
7
45°
45°
630
φ60.5
This circle shows the path that the outermost
part of the plasma display follows when it is
rotated about a vertical axis after having been
titled sideways by 25°.
This circle shows the path that the outermost
part of the plasma display follows when it is
rotated about a vertical axis after having been
titled sideways by 25°.
[503CMX/503MXE : 433CMX/433MXE]
