PDP-507CMX
126
1234
1234
C
D
F
A
B
E
4 4
6
2 2
1
Remove the six screws.
2
Remove the two panel holders (50XM6).
3
Remove the three screws.
4
Remove the two screws.
5
Unhook the one hook.
6
Remove the front chassis L (50XM6).
50 Y MAIN
DRIVE Assy
50 Y SUB
DRIVE Assy
SCAN IC ×6 SCAN IC ×6
50 SCAN B Assy 50 SCAN A Assy
Panel holder (50XM6)
Front chassis L (50XM6)
Exchange

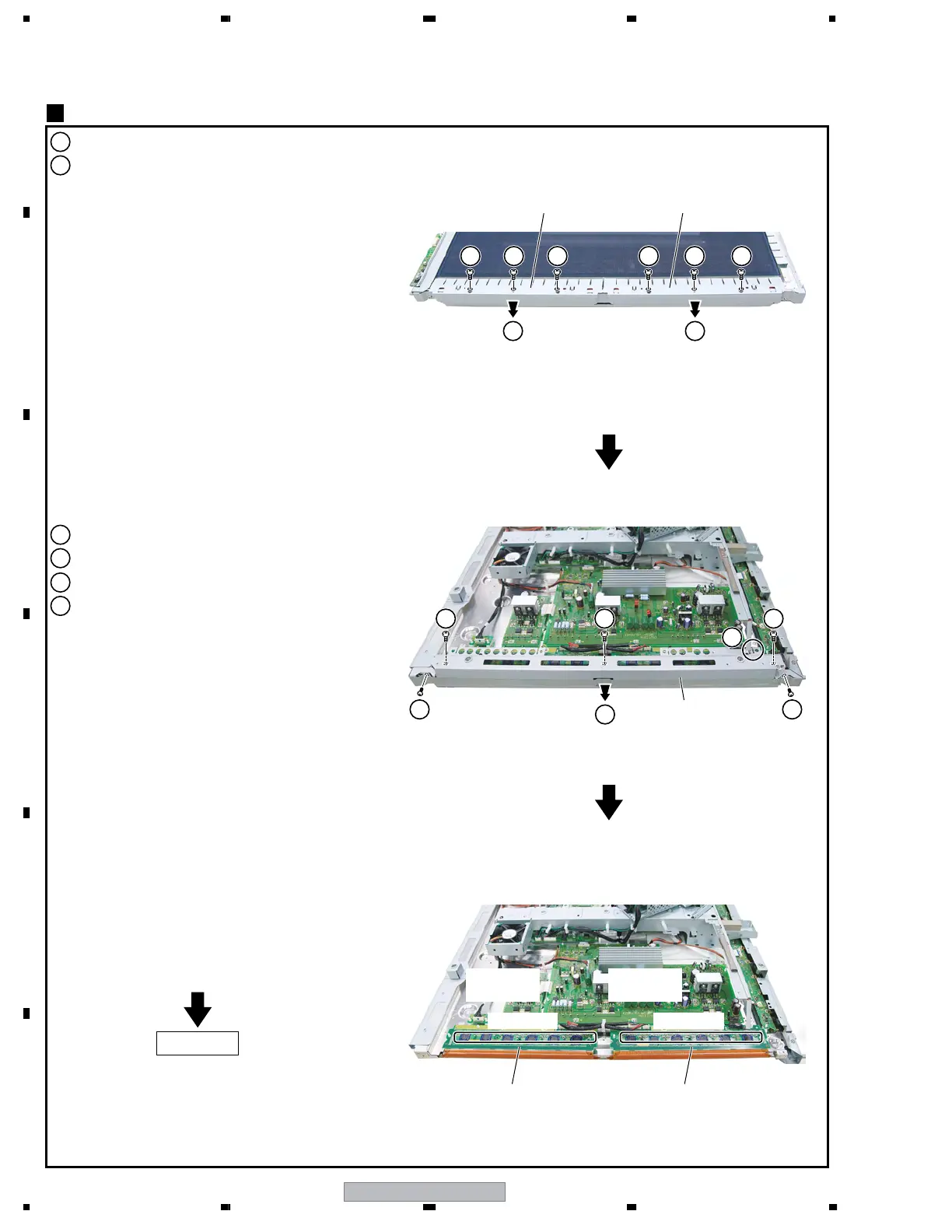

Exchange of SCAN IC
5
1 1 1 1 1 1
33 3
5
Panel holder (50XM6)
