Pioneer XR-P770F Operating Instructions

FRONT PANEL FACILITIES

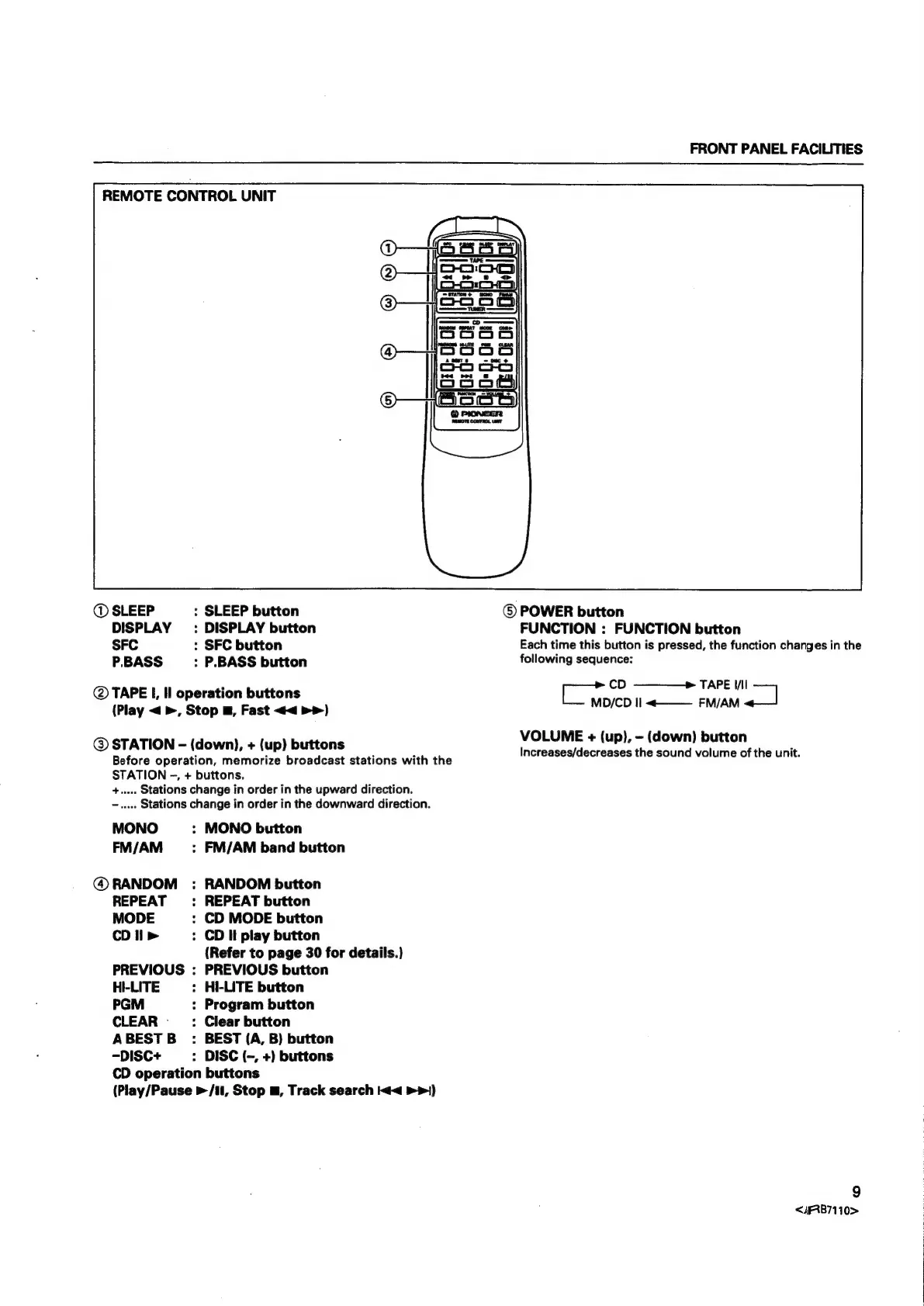

REMOTE CONTROL UNIT
@ SLEEP : SLEEP button
DISPLAY __: DISPLAY button
SFC : SFC button
P.BASS : P.BASS button
@ TAPE |, ll operation buttons
(Play < >, Stop g, Fast << p>)
@ STATION - (down), + (up) buttons
Before operation, memorize broadcast stations with the
STATION ~, + buttons.
+..... Stations change in order in the upward direction.
-.... Stations change in order in the downward direction.
MONO : MONO button
FM/AM : FM/AM band button
@ RANDOM : RANDOM button
REPEAT : REPEAT button
MODE : CD MODE button
CD Il > : CD Il play button
(Refer to page 30 for details.)
PREVIOUS : PREVIOUS button
HI-LITE : HI-LITE button
PGM : Program button
CLEAR —_ : Clear button
ABESTB : BEST (A, B) button
-DISC+ : DISC (-, +) buttons
CD operation buttons
(Play/Pause >/11, Stop m, Track search <4 >>)
© POWER button
FUNCTION : FUNCTION button
Each time this button is pressed, the function changes in the
following sequence:
CD ———— TAPE Il
MD/CD || <———- FM/AM
VOLUME + (up), - (down) button
Increases/decreases the sound volume of the unit.
9
<iFRB7110>

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
