Pioneer XV-E51 - Disassembly Procedures; Deck Mechanism Section Disassembly; Front Panel Section Disassembly

XV-EV51
96
1234
1234
C
D
F
A
B
E

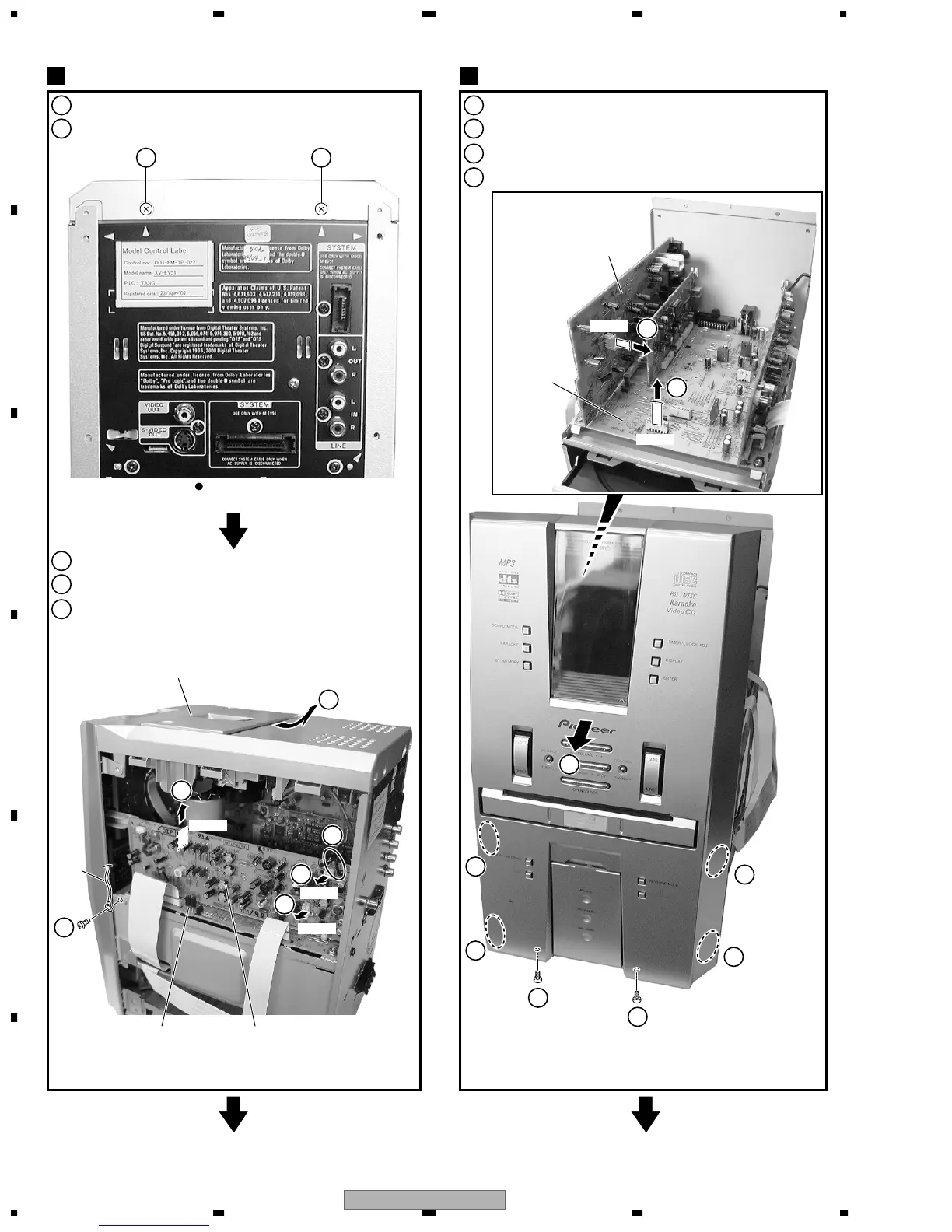

7.1.5 DISASSEMBLY
1
Remove the Side Bonnet L and R (screws × 14)
2
Remove two screws
3
Release two binders
4
Remove the earth lead wire (screw × 1)
5
Remove the Deck Mechanism Section
(FFC × 1, connectors × 2)
Deck Mechanism Section
1
1
Remove two screws
2
Remove a FFC and connector
3
Unhook × 4
4
Remove the Front Panel Section
Front Panel Section
2
DECK AssyIF Assy
Note : Operation check of the main unit is possible
even if removes the Deck Mechanism Section.
Note : Front Panel can removes with the state which
Tray Panel was attached to it.
In this time, remove bottom part of the Front Panel
first so that the Tray Panel is not caught.
Deck Mechanism Section
AF Assy
IF Assy
Earth
Lead
Wire
Rear View
2
1
3
4
3
3
3
1
3
5
5
5
5
4
2
CN2302
CN5802
CN2301
2
2
CN5509
CN8301
