Piper Cherokee Six - Page 116

100
BOLT AN3-5 A
WASHER
AN960-10
(UNDER
NUT)
NUT MS20365-1032C
4 REQ.
TORQUE NUT
35 TO 40 IN.-LBS.
BOLT NAS464P3A5
WASHER AN960-10
(UNDER
NUT)
WASHER
AN960-10L
(UNDER HEAD)
NUT
MS21045-L3
4 REQ.
TORQUE
NUT TO 65 -
5 IN.-LBS
SEE CAUTION
BOLT
AN3-5A
WASHER
AN960-10
(2
REQ.
UNDER
NUT)
WASHER
AN960-10
(UNDER
HEAD)
NUT
MS20365-1032C
4 REQ.
TORQUE
NUT
35 TO 40 IN.-LBS.
BOLT NAS464P3A4
WASHER
AN960-10
(2 REQ.
UNDER NUT)
WASHER
AN960-IOL
(UNDER HEAD)
NUT MS21045-L3
4 REQ.
TORQUE NUT
TO 65 + 5 IN.-LBS.
SEE CAUTION
PIPER CHEROKEE
SIX SERVICE
MANUAL
BOLT AN4-6 A
BOLT
AN3-10A
WASHER AN960-0 ( 3 REC:
NUT MS20365-10320
SKETCH G
SKETCH
H
BOLT AN4 - A
NUT
MS20365428
WASHER
AN960-416
8 REQ.
BOLT AN3-5 A
WASHER
AN960-10
(UNDER
NUT)
NUT MS20365-1032C
4 REQ.
TORQUE NUT
35 TO 40 IN.-LBS.
BOLT
NAS464P3A4
WASHER AN960-10
(UNDER
NUT)
WASHER AN960-IOL
(UNDER
HEAD)
NUT MS21045-L3
4 REQ.
TORQUE
NUT TO
65 + 5 IN.-LBS.
SEE CAUTION
WASHER
960-416L
AS REQ.
TO CENTER
STABILATOR
AND
LOCK
BEARING
INNER
RACE.
CAUTION:
IDENTIFY
HARDWARE
BEFORE TORQUING.
NAS
1104-17
OR
BOLT AN174-13A
WASHER
960-416
(1) UNDER HEAD
(1) UNDER NUT
NUT H 0-4
TORQUE 70 TO90
I
SKETCH
I

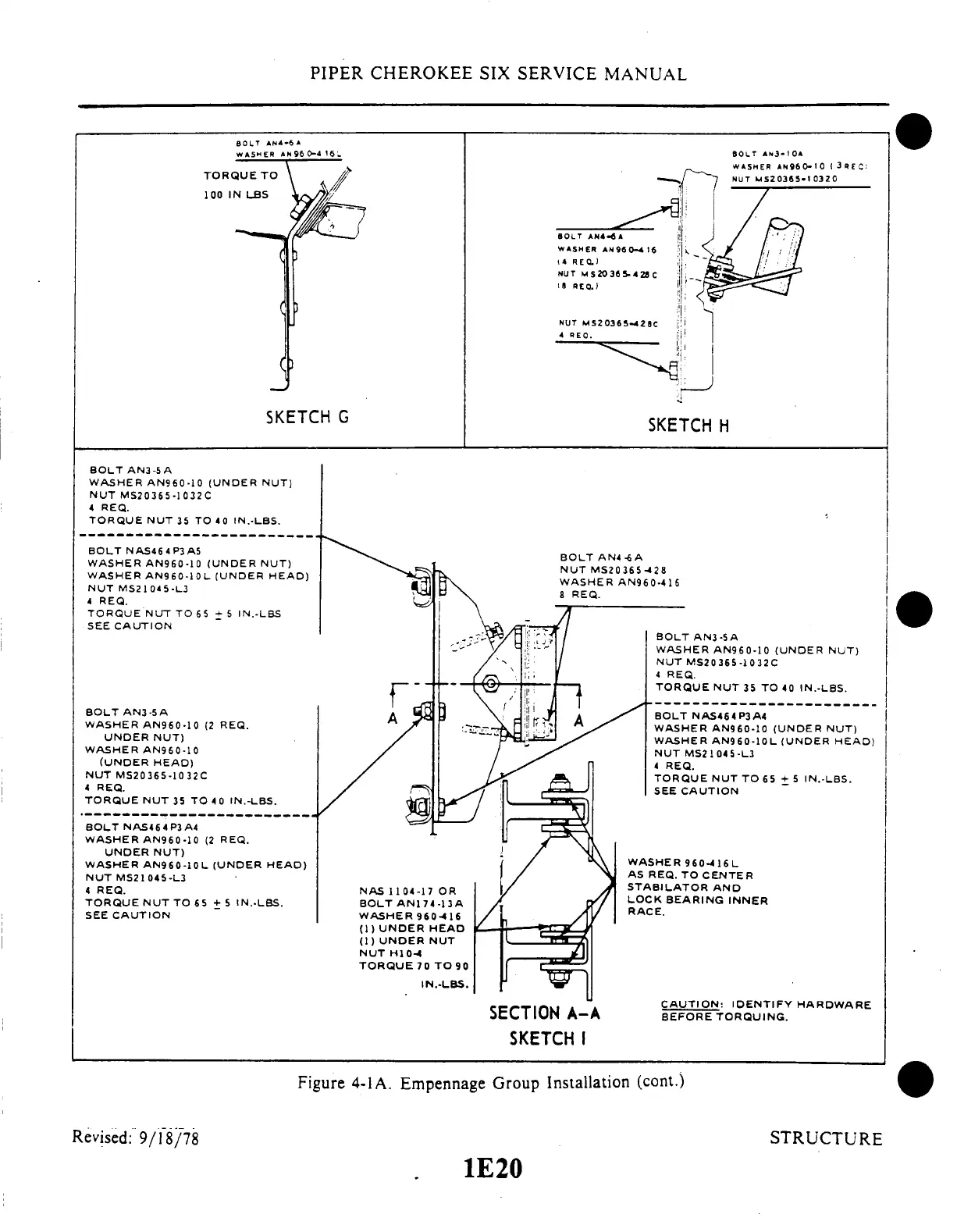

Figure 4-1A.
Empennage Group
Installation (cont.)
Revised:
9/18/78
STRUCTURE
1E20
