PIPER
CHEROKEE
SIX
SERVICE
MANUAL

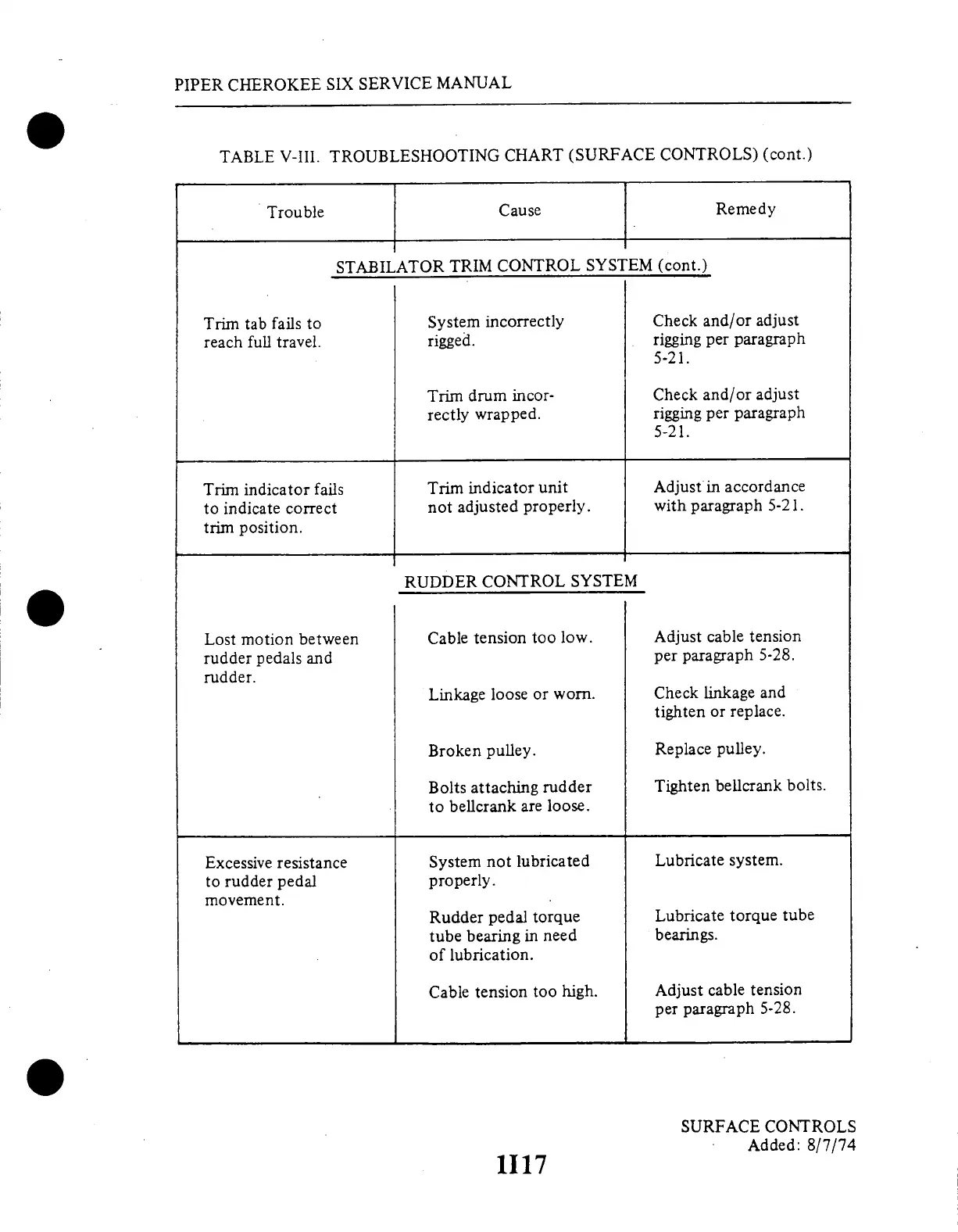

TABLE
V-III.
TROUBLESHOOTING
CHART
(SURFACE
CONTROLS)
(cont.)
Trouble
Cause
Remedy
STABILATOR
TRIM
CONTROL
SYSTEM
(cont.)
Trim tab fails to
reach
full travel.
System
incorrectly
rigged.
Check and/or
adjust
rigging per
paragraph
5-21.
Trim drum
incor-
rectly
wrapped.
Check
and/or
adjust
rigging
per
paragraph
5-21.
Trim
indicator
fails
to indicate
correct
trim
position.
Trim
indicator
unit
not
adjusted
properly.
Adjust
in
accordance
with paragraph
5-21.
RUDDER
CONTROL
SYSTEM
Lost
motion
between
rudder
pedals
and
rudder.
Cable
tension
too
low.
Linkage
loose
or worn.
Adjust
cable
tension
per
paragraph
5-28.
Check
linkage
and
tighten
or
replace.
Broken
pulley.
Bolts
attaching
rudder
to
bellcrank
are
loose.
Replace
pulley.
Tighten
bellcrank
bolts.
Excessive
resistance
to
rudder
pedal
movement.
System
not
lubricated
properly.
Rudder
pedal
torque
tube
bearing
in
need
of
lubrication.
Lubricate
system.
Lubricate
torque
tube
bearings.
Cable
tension
too
high.
Adjust
cable
tension
per
paragraph
5-28.
SURFACE
CONTROLS
Added:
8/7/74
1117
