Piper Cherokee Six - Electrical Wire Coding

CIRCUIT
IDENTIFICATION
WIRE
NUMBER
WIRE SEGMENT LETTER
WIRE
GAUGE
CIRCUIT FUNCTION
LETTER CIRCUITS
A AUTOPILOT
C
CONTROL
SURFACE
E ENGINE INSTRUMENT
F FLIGHT INSTRUMENT
G
LANDING
GEAR
H HEATER
- VENTILATING
& DEICIN
L
LIGHTING
P POWER
Q
FUEL
&
OIL
RP RADIO POWER
RG
RADIO
GROUND
RZ
RADIO
AUDIO & INTERPHONE
J IGNITION
W WARNING
K STARTER
G
PIPER
CHEROKEE
SIX SERVICE
MANUAL

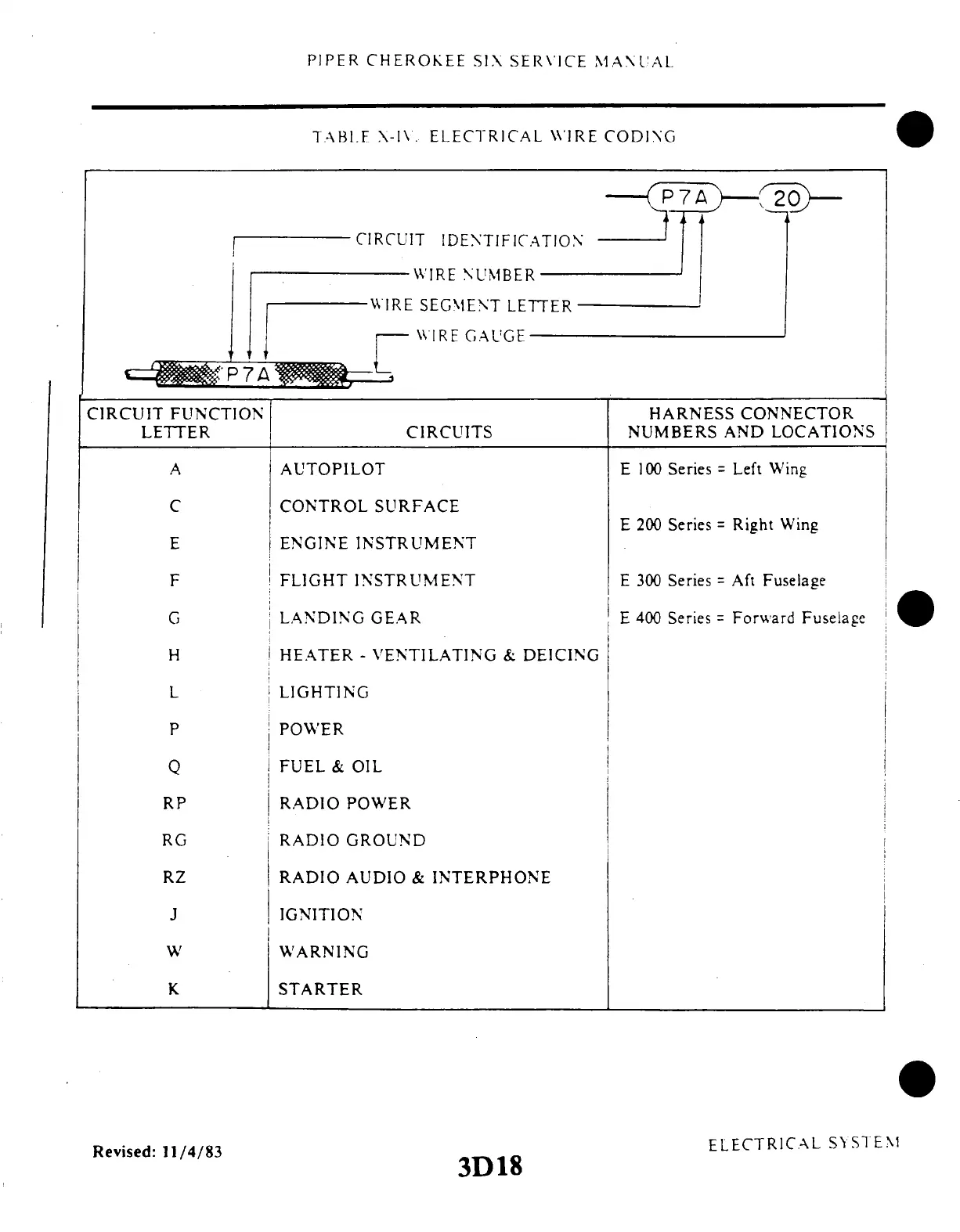

TABLE
\-I\. ELECTRICAL
WIRE CODING
HARNESS
CONNECTOR
NUMBERS AND LOCATIONS
E 100 Series
= Left
Wing
E 200
Series =
Right Wing
E 300
E 400
Series =
Series =
Aft Fuselage
Forward Fuselage
ELECTRICAL
SYSTEM
