Piper Cherokee Six - Aileron Controls (Typical)

PIPER
CHEROKEE
SIX SERVICE MANUAL
2. SPROCKET,
CONTROL
WHEEL
3. SPROCKET, IDLER
4. CHAIN, AILERON CONTROL
5. BRACKET, PULLEY
6. BELLCRANK, AILERON
7.
ROD, AILERON
CONTROL
8.
PULLEY,
TEE BAR
9. PULLEY,
FORWARD CLUSTER
10. PULLEY,
PRIMARY
CONTROL
CABLE
11.
PULLEY,
BALANCE
CABLE
12. TURNBUCKLE,
RIGHT PRIMARY
13.
CABLE, RIGHT
WING PRIMARY
14. CABLE,
RIGHT FUSELAGE
PRIMARY
15. CABLE,
LEFT FUSELAGE
PRIMARY
16. TURNBUCKLE,
LEFT PRIMARY
17.
CABLE, LEFT
WING PRIMARY
18.
CABLE, RIGHT
BALANCE
19.
CABLE, LEFT
BALANCE
20. ROD, CABLE GUARD
21. BOLT, WASHER & NUT
22. BOLT.
WASHER I
NUT
23. BOLT,
HUT, BUSHING
& COTTER PIN
24.
TURNBUCKLE,
BALANCE CABLE
25. BOLT, BELLCRANK PIVOr
26. BUSHING, BELLCRANK
o

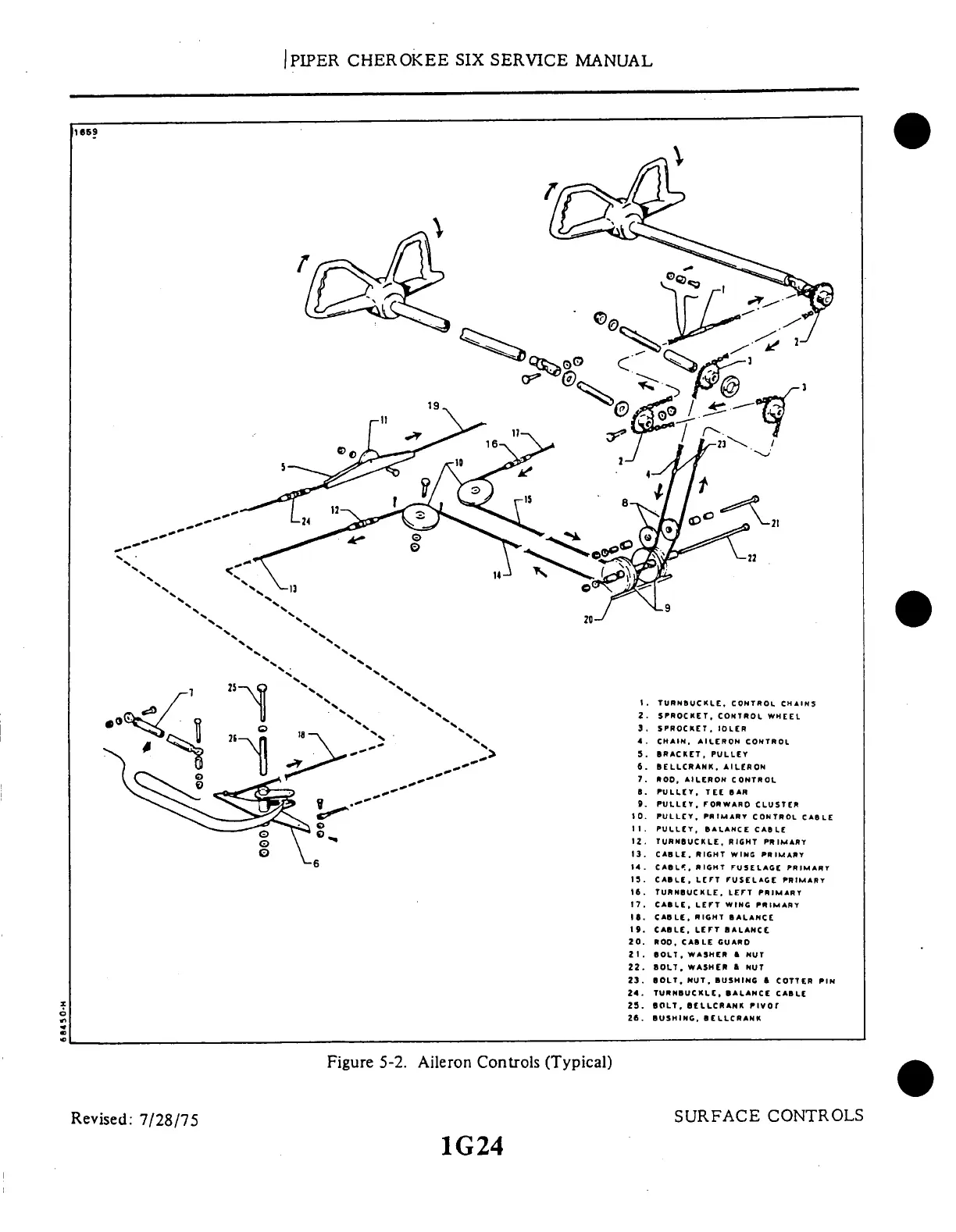

Figure 5-2. Aileron Controls (Typical)
Revised:
7/28/75
SURFACE
CONTROLS
1G24
