Piper Cherokee Six - Control Surface Balance Tool

SURFACE
CHORD
LINE
5 FT. EXTRUDED CHANNEL
MARK
GRADUATIONS
IN
INCHES
HORIZONTALLY
ADJUSTABLE
FOR
SETTING
TOOL
TO
WIDTH OF
CONTROL
SURFACE
IPIPER
CHEROKEE
SIX
SERVICE
MANUAL
C368
3 LB MOVABLE WEIGHT WITH
MARKED
CENTERLINE
NUTS
AND
OR
WASHERS
ADDED
AS
REQUIRED
TO
BALANCE
TOOL
ITSELF
BEAM BALANCING
BOLT
IUSED
FOR
BALANCING
THE
TOOL ITSELF ONCE
THE TRAILING
EDGE SUPPORT
HAS BEEN SET)
HINGE CENTERLINE
PLACED DIRECTLY
OVER
HINGE LINE
OF CONTROL
SURFACE
BUBBLE LEVEL
EW
VERTICALLY
AND HORIZONTALLY
ADJUSTABLE
TRAILING
EDGE SUPPORT
SET
SCR
VERTICALLY
ADJUSTABLE
FOR SETTING
BEAM
PARALLEL
TO
CHORD
LINE
OF
CONTROL
SURFACE

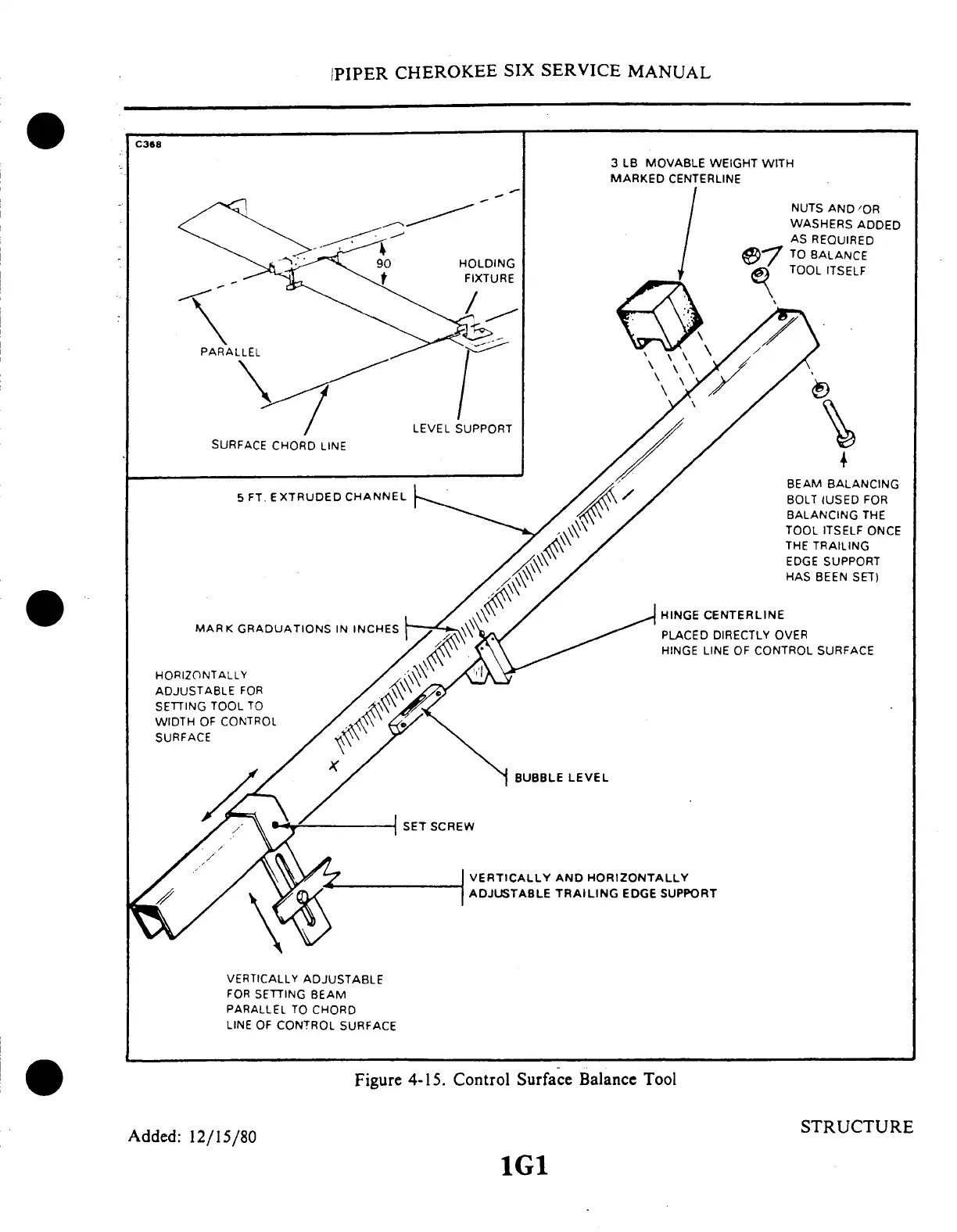

Figure
4-15. Control Surface
Balance Tool
Added:
12/15/80
1G1
STRUCTURE
