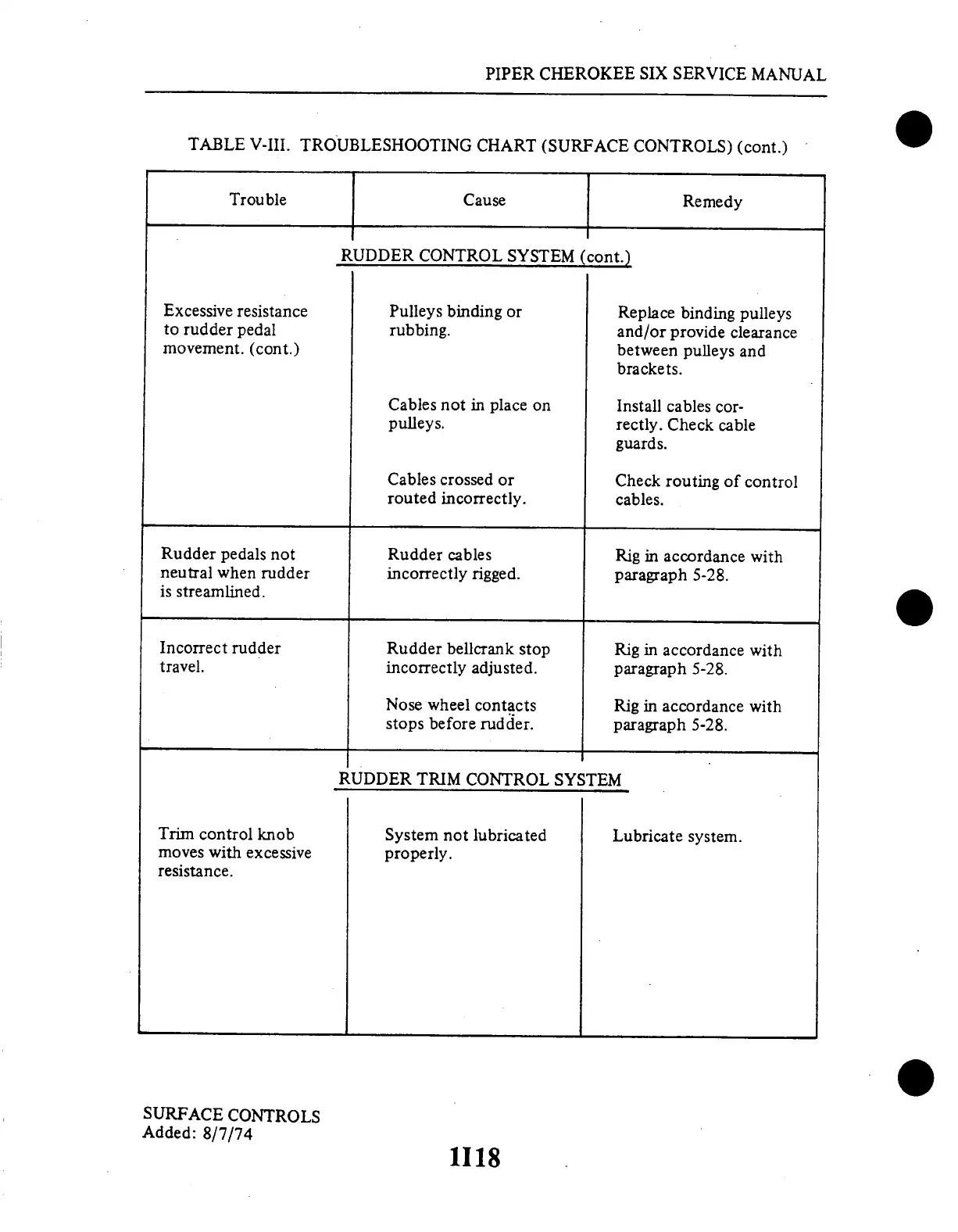

TABLE
V-III.
TROUBLESHOOTING
CHART
(SURFACE
CONTROLS)
(cont.)
Trouble
Cause
Remedy
RUDDER
CONTROL
SYSTEM
(cont.)
Excessive
resistance
to
rudder
pedal
movement.
(cont.)
Pulleys
binding
or
rubbing.
Replace
binding
pulleys
and/or
provide
clearance
between
pulleys
and
brackets.
Cables
not in
place
on
pulleys.
Cables
crossed
or
routed
incorrectly.
Install
cables
cor-
rectly.
Check
cable
guards.
Check
routing
of control
cables.
Rudder
pedals
not
neutral
when
rudder
is streamlined.
Incorrect
rudder
travel.
Rudder
cables
incorrectly
rigged.
Rudder
bellcrank
stop
incorrectly
adjusted.
Rig
in
accordance
with
paragraph
5-28.
Rig
in
accordance
with
paragraph
5-28.
Nose wheel
contacts
stops
before
rudder.
Rig
in accordance
with
paragraph
5-28.
RUDDER
TRIM
CONTROL
SYSTEM
Trim
control
knob
moves
with
excessive
resistance.
System
not
lubricated
properly.
Lubricate
system.
SURFACE
CONTROLS
Added:
8/7/74
