Piper Cherokee Six - Control Column Assembly (PA-32-260 and 300)

1655
17
PIPER
CHEROKEE
SIX SERVICE
MANUAL
1
10-
12
1
1.
CONTROL
WHEEL
2. TUBE, CONTROL WHEEL
3. BOLT,
WASHER
& NUT
4. FLEXIBLE
JOINT
5. TEE BAR
6. SPACER
STOP
7. CHAIN, RIGHT ROLLER
8. CHAIN,
LEFT
ROLLER
9. TURNBUCKLE,
CONTROL
CHAINS
10. BOLT,
BUSHING,
NUT
& COTTER
PIN
I
. CONTROL CABLE,
STABILATOR
12.
CONTROL CABLE,
AILERON
13.
PULLEY
14. BOLT,
WASHERS (4)
& NUT
15. BOLT, WASHERS
(2)
& NUT
16. BOLT,
WASHER,
NUT
& COTTER
PIN
17. SPROCKET,
RIGHT CONTROL
WHEEL
18. SPROCKET,
LEFT
CONTROL
WHEEL
19. IDLER SPROCKET, AFT
20.
SPACER,
IDLER
SPROCKETS
21.
IDLER
SPROCKET,
FORWARD
22. BOLT
ASSEMBLY
23.
PIN
11
16
0
N

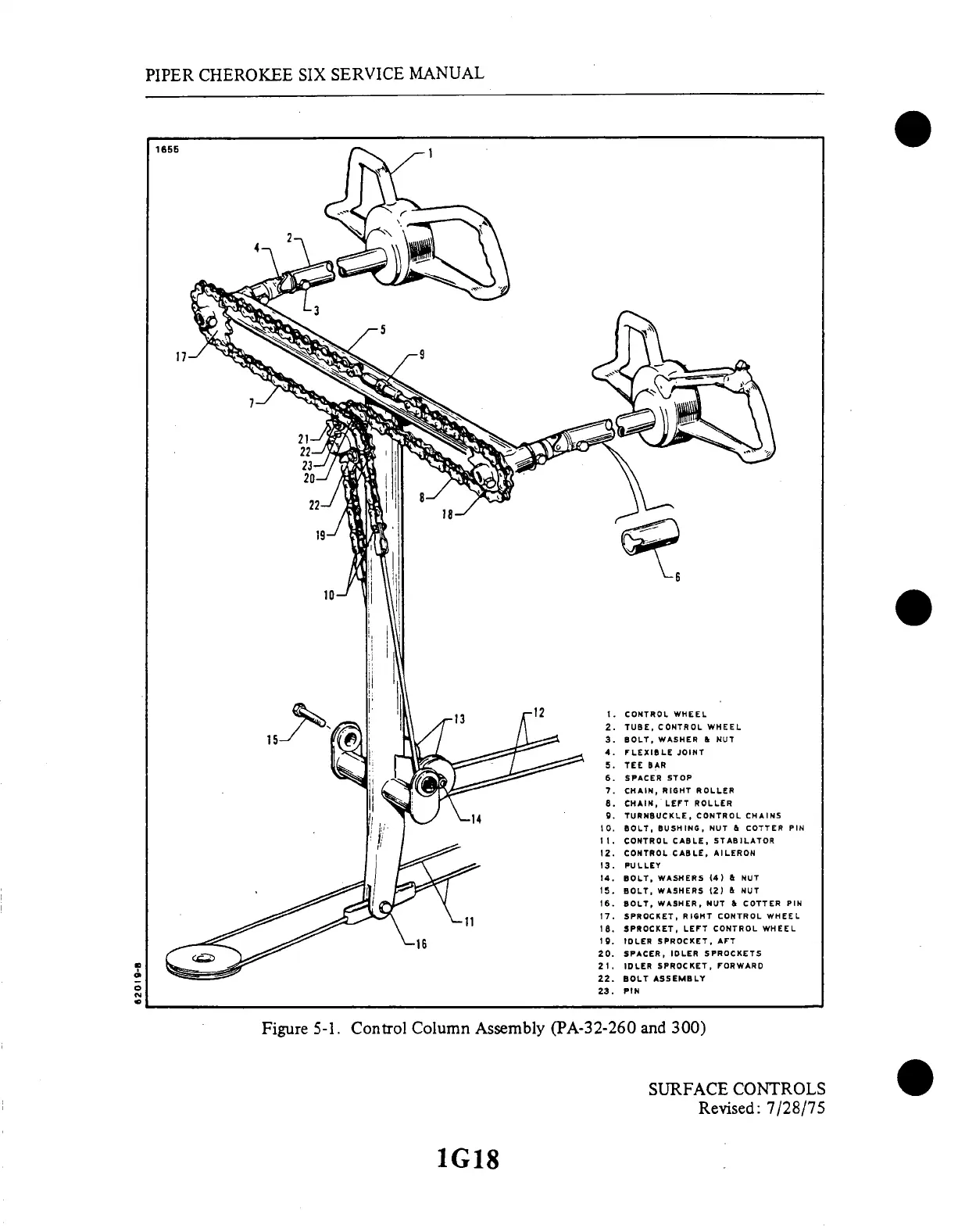

Figure 5-1.
Control
Column
Assembly
(PA-32-260
and 300)
SURFACE
CONTROLS
Revised:
7/28/75
1G18
