Piper Cherokee Six - Seat Back Lock

*PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1. SCREW
2.
SCREW
3. CLAMP
4. CLAMP
5. BUSHING
6.
CABLE
7.
STOP
ASSY.
STOP
SHOULD
BE
LUBRICATED
AND
FREE
TO
SWIVEL
WITHOUT
EXCESSIVE
PLAY
STRAIGHTEDGE

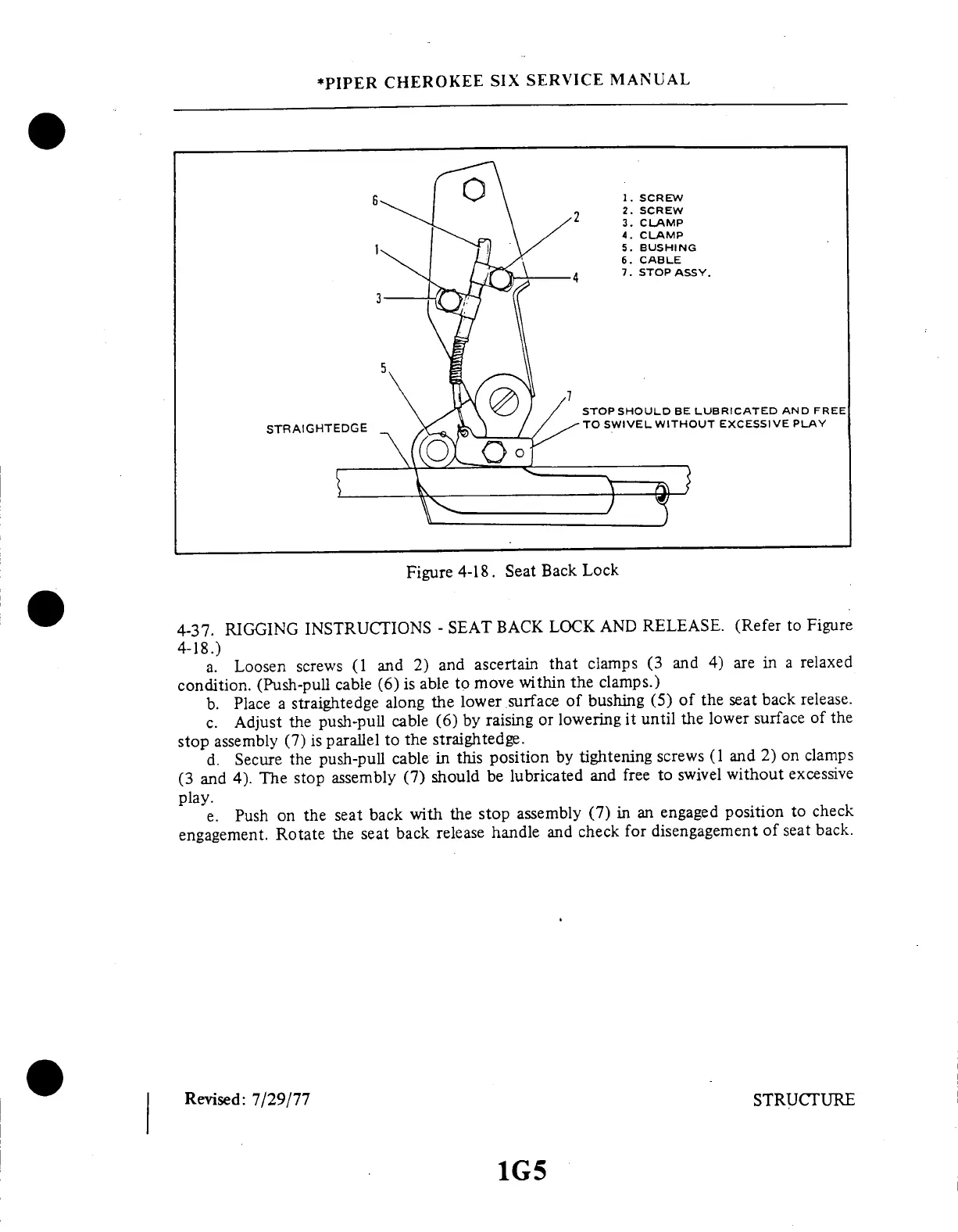

Figure
4-18.
Seat
Back
Lock
4-37.
RIGGING
INSTRUCTIONS
-
SEAT
BACK
LOCK
AND
RELEASE.
(Refer
to
Figure
4-18.)
a.
Loosen
screws
(1
and
2)
and
ascertain
that
clamps
(3
and
4)
are
in
a
relaxed
condition.
(Push-pull
cable
(6)
is able
to
move
within
the
clamps.)
b.
Place
a
straightedge
along
the
lower
surface
of
bushing
(5)
of
the
seat
back
release.
c.
Adjust
the
push-pull
cable
(6)
by
raising
or
lowering
it
until
the
lower
surface
of
the
stop
assembly
(7)
is
parallel
to
the
straightedge.
d.
Secure
the
push-pull
cable
in
this
position
by
tightening
screws
(1
and
2)
on
clamps
(3
and
4).
The
stop
assembly
(7)
should
be
lubricated
and
free
to
swivel
without
excessive
play.
e.
Push
on
the
seat
back
with
the
stop
assembly
(7)
in
an
engaged
position
to
check
engagement.
Rotate
the
seat
back
release
handle
and
check
for
disengagement
of
seat
back.
Revised:
7/29/77
STRUCTURE
1G5
