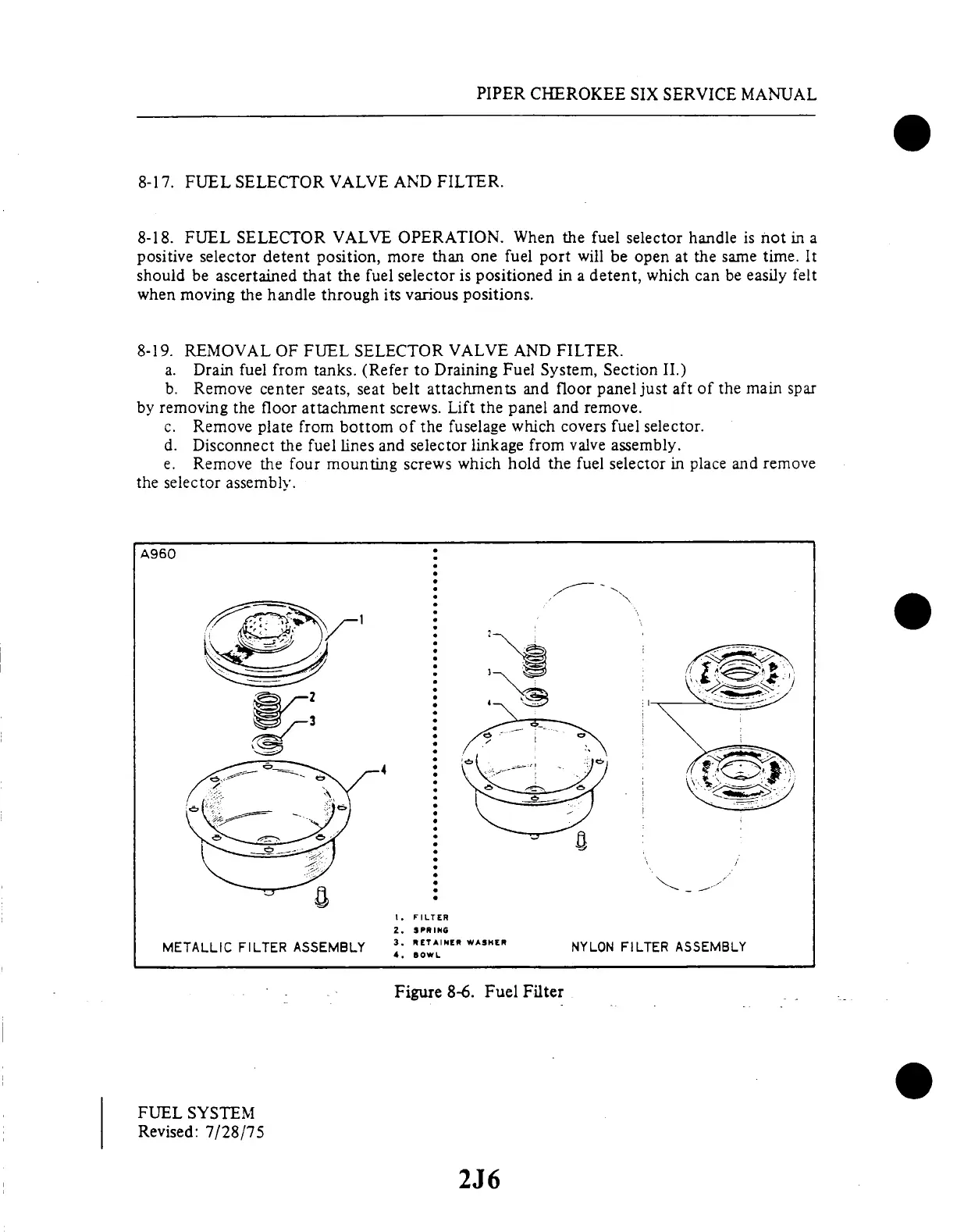

8-17.
FUEL SELECTOR
VALVE AND FILTER.
8-18. FUEL SELECTOR VALVE OPERATION. When the fuel selector handle is not in a
positive selector detent position,
more than one fuel port will be
open at the same time. It
should be ascertained that
the fuel selector is positioned in a detent,
which can be easily felt
when moving
the handle through
its various positions.
8-19. REMOVAL OF FUEL SELECTOR VALVE AND FILTER.
a. Drain fuel from tanks. (Refer to Draining Fuel System, Section II.)
b. Remove center seats, seat belt attachments and floor panel just aft of the main spar
by removing the floor attachment
screws. Lift the panel
and remove.
c. Remove plate from bottom of the fuselage which covers fuel selector.
d. Disconnect the fuel lines and selector linkage from valve assembly.
e. Remove the four mounting screws which hold the fuel selector in place and remove
the selector assembly.
A960
I. FILTER
2. SPRING
METALLIC FILTER ASSEMBLY
3. RETAINER WASHER NYLON FILTER
ASSEMBLY
4. BOWL
Figure
8-6. Fuel
Filter
FUEL
SYSTEM
Revised:
7/28/75
PIPER CHEROKEE
SIX SERVICE MANUAL
2J6
