Piper Cherokee Six - Nose Gear Oleo Strut Assembly

PIPER CHEROKEE SIX SERVICE MANUAL
1. NUT,
RETAINER
2. WASHER
3. BEARING,
TOP
4. STRUT MOUSING
5.
BEARING,
BOTTOM
6.
CAP,
VALVE
7. PLUG, FILLER
8. TUBE METERING
9. CYLINDER
10. RING,
RETAINER
II, SNAP RING
2. BEARING
13. "O" RING, PACKING
14. "O" RING OR QUAD RING
15. WASHER,
BACK-UP
16. WIPER STRIP
17.
TUBE,
PISTON
18 . "O" RING
19.
PLUG,
PISTON
TUBE
10
0

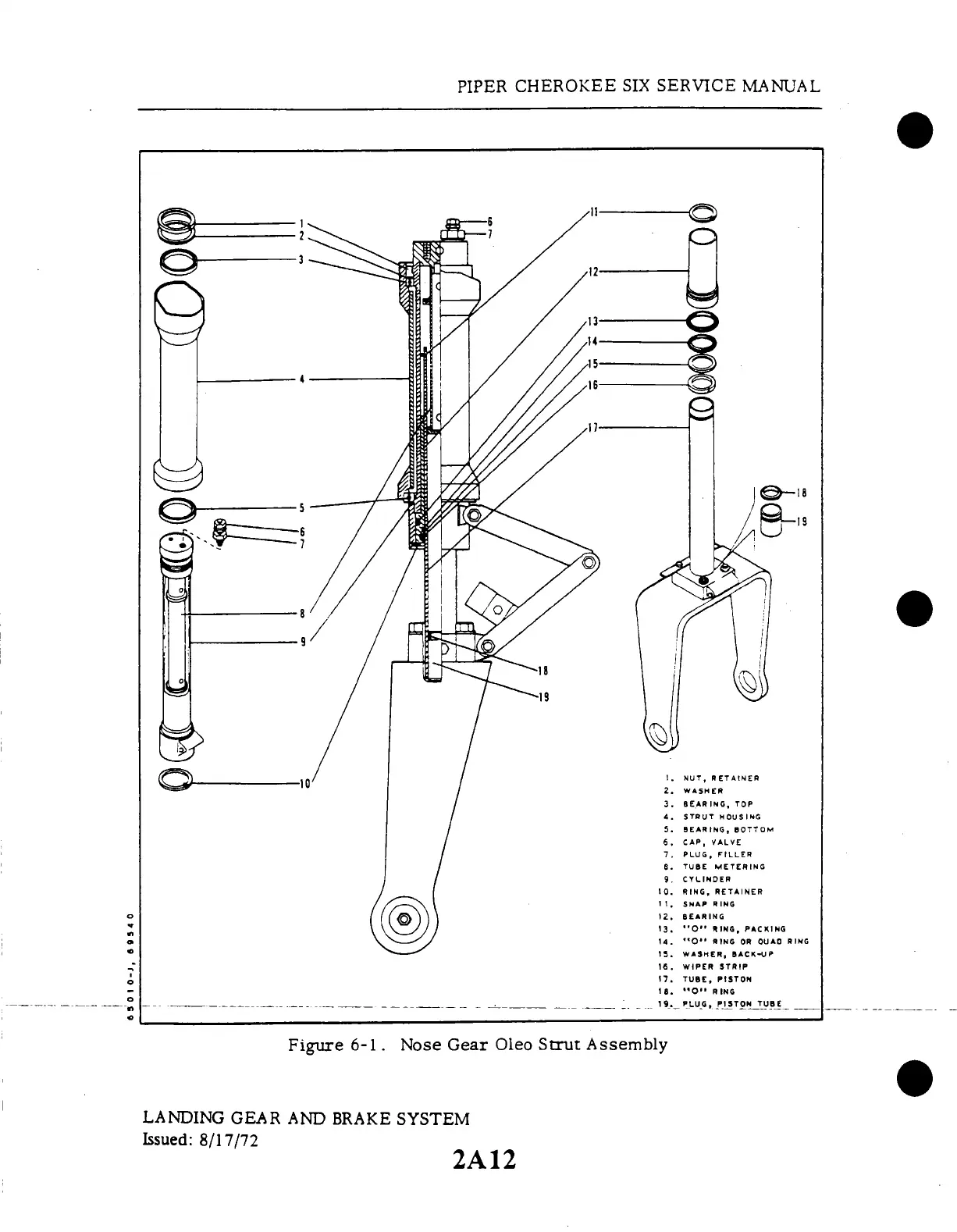

Figure 6-1. Nose Gear Oleo Strut Assembly
LANDING
GEAR AND
BRAKE
SYSTEM
Issued:
8/17/72
2A12
