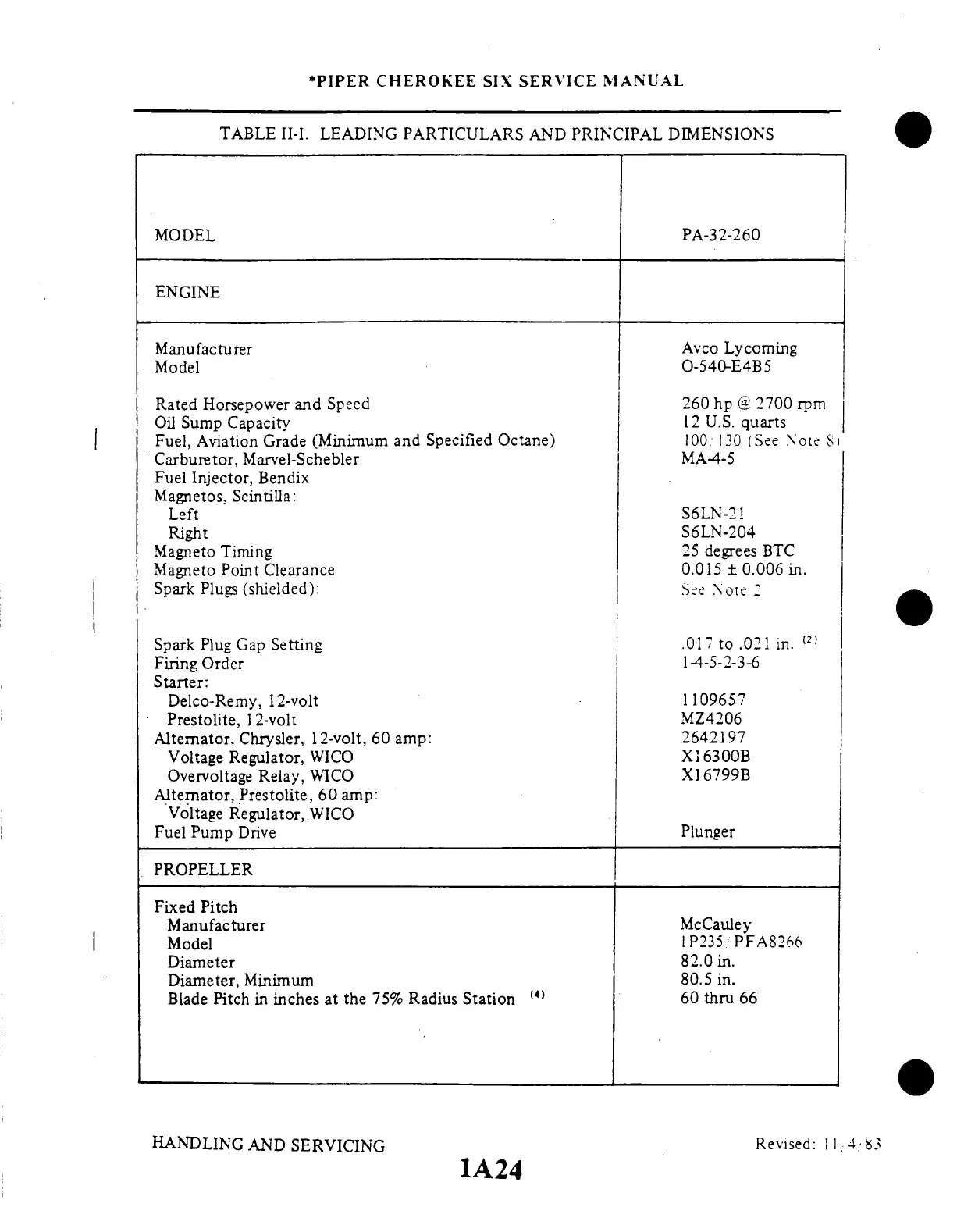

Piper Cherokee Six - Leading Particulars and Principal Dimensions

TABLE II-I.
LEADING
PARTICULARS
AND PRINCIPAL
DIMENSIONS
PA-32-260
Rated
Horsepower
and Speed
Oil Sump
Capacity
Fuel, Aviation Grade
(Minimum and Specified
Octane)
Carburetor, Marvel-Schebler
Fuel
Injector,
Bendix
Magnetos,
Scintilla:
Left
Right
Magneto
Timing
Magneto Point Clearance
Spark Plugs (shielded):
*PIPER CHEROKEE SIX SERVICE MANUAL
MODEL
ENGINE
Manufacturer
Model
Avco
Lycoming
0-540-E4B5
260 hp
@ 2700
rpm
12 U.S. quarts
100,
130 (See
Note 8)
MA-4-5
S6LN-21
S6LN-204
25
degrees
BTC
0.015
± 0.006
in.
See Note 2
Spark Plug Gap Setting
Firing Order
Starter:
Delco-Remy, 12-volt
Prestolite,
12-volt
Alternator.
Chrysler,
12-volt, 60 amp:
Voltage Regulator, WICO
Overvoltage Relay, WICO
Alternator, Prestolite, 60 amp:
Voltage
Regulator,.WICO
Fuel
Pump
Drive
.017 to .021 in. (2)
14-5-2-3-6
1109657
MZ4206
2642197
X16300B
X16799B
Plunger
PROPELLER
Fixed Pitch
Manufacturer
Model
Diameter
Diameter, Minimum
Blade
Pitch in inches at
the 75% Radius Station
(4)
HANDLING
AND
SERVICING
1A24
McCauley
I P235 PFA8266
82.0 in.
80.5 in.
60 thru 66
