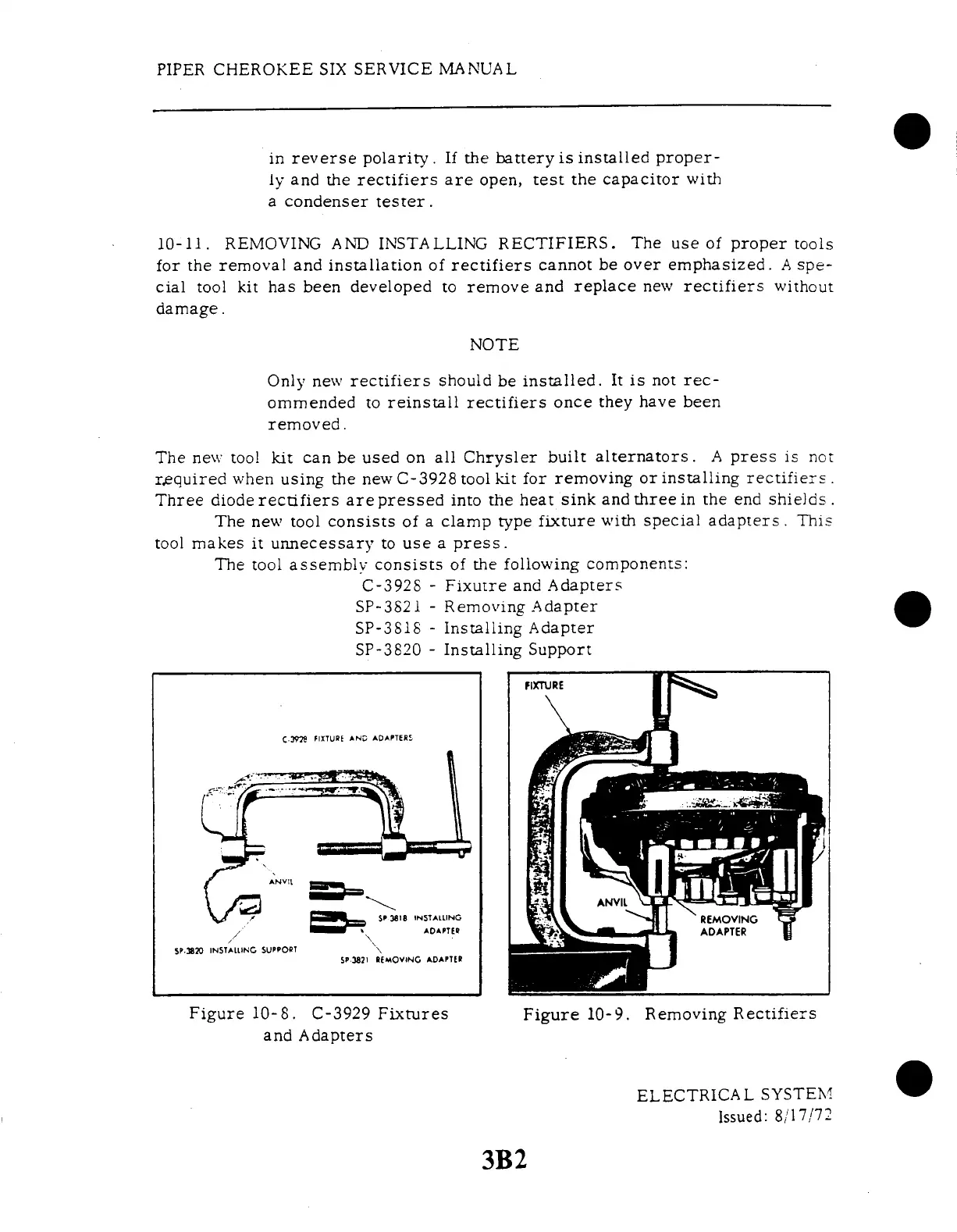

Piper Cherokee Six - Removing and Installing Rectifiers

in reverse
polarity.
If the battery
is installed
proper-
ly and the
rectifiers are
open, test
the capacitor
with
a condenser tester.
10-11.
REMOVING AND
INSTALLING
RECTIFIERS.
The use of proper
tools
for the removal
and installation
of rectifiers
cannot be over
emphasized. A
spe-
cial tool
kit has been
developed to remove
and replace
new rectifiers
without
damage.
NOTE
Only new
rectifiers
should be
installed. It
is not rec-
ommended
to
reinstall
rectifiers
once
they
have been
removed.
The new
tool kit can
be used on
all Chrysler
built alternators.
A press is
not
required
when
using
the new C-3928
tool
kit for
removing
or installing
rectifiers.
Three diode
rectifiers
are pressed
into the heat
sink and
three in the
end shields.
The new
tool consists
of a clamp
type
fixture with
special
adapters.
This
tool makes
it unnecessary
to use a
press.
The
tool assembly
consists
of the following
components:
C-3928
- Fixutre
and
Adapters
SP-3821 - Removing Adapter
SP-3818
- Installing
Adapter
SP-3820 - Installing Support
FIXTURE
ANVIL
ANVIL
SP.3820 INSTALLINGC SUPPORT
SP.3821 REMOVING ADAPTER
Figure 10-8. C-3929
Fixtures Figure
10-9. Removing Rectifiers
and Adapters
ELECTRICAL
SYSTEM
Issued:
8/17/72
PIPER
CHEROKEE
SIX SERVICE
MANUAL
3B2
