Piper Cherokee Six - Page 125

1663
*1974 MODELS AND UP
No.
Material
Thickness
No.
Material
Thickness
1
2024-T3
0.032
5
2024-T3
0.051
2
2024-T3
0.020
6
2024-T3
0.016
3
2024-T3
0.040
7
2024-0*
0.020
4
2024-T3
0.025
8
Fiberglas
*Heat treat
to 2024-T4

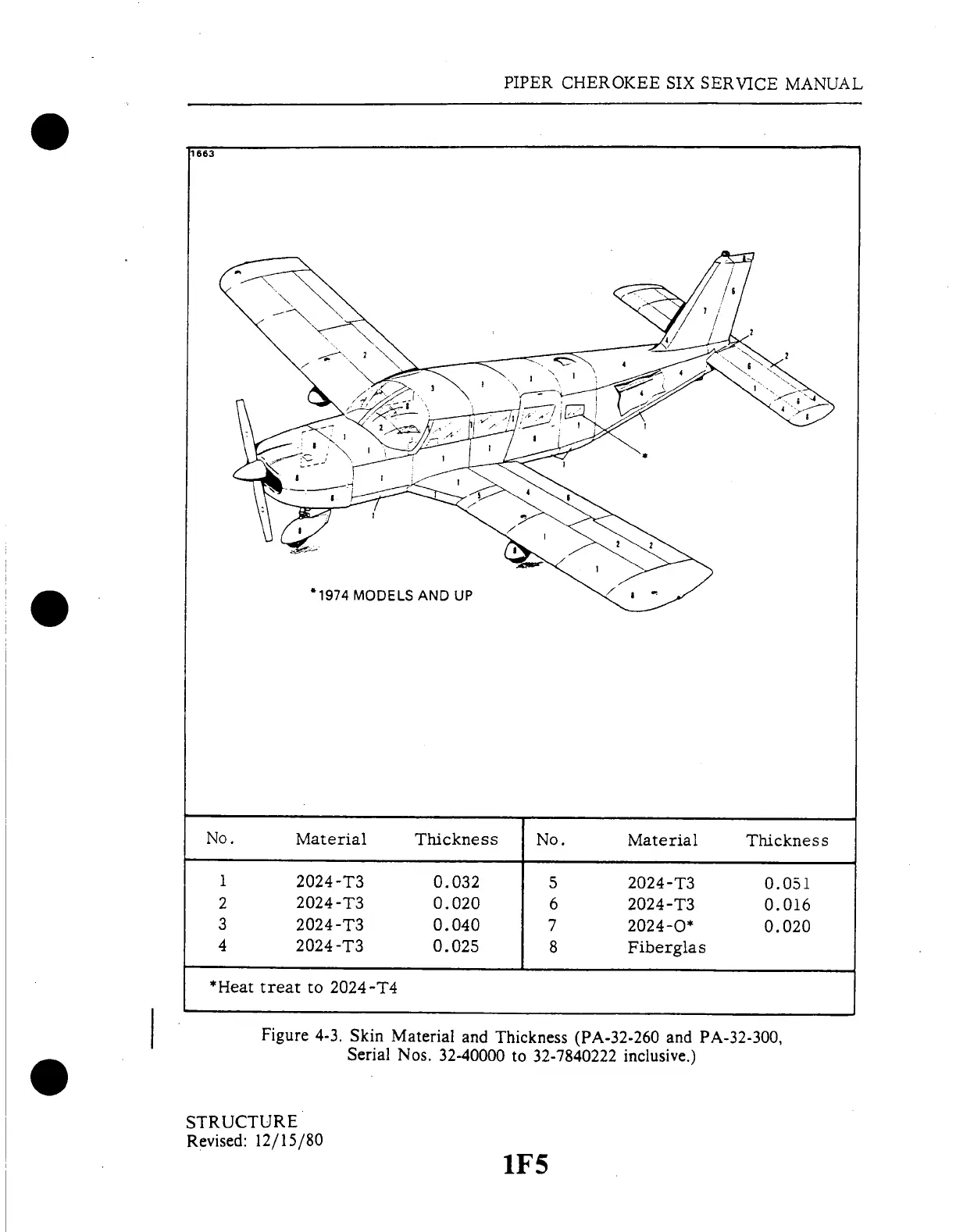

Figure
4-3. Skin
Material
and
Thickness
(PA-32-260
and
PA-32-300,
Serial
Nos. 32-40000
to
32-7840222
inclusive.)
STRUCTURE
Revised:
12/15/80
1F5
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
