PIPER
CHEROKEE
SIX
SERVICE
MANUAL
9
11
5
5
6
4
11
5
5
5
5
NUMBER MATERIAL
THICKNESS
1 2024-T3
2
2024-0(1)
3
2024 T3
4 2024-T3
5 2024-T3
6
2024-T3
7 2024-T3
8
2024-0
(2)
9
FIBERGLASS
10
2024-T3
(2)
11 THERMOPLASTIC
OR FIBERGLASS
12 2024-T3 (2)
13
5052-H34
14
2024-T3
(2)
.016
.020
.020
.025
.032
.040
.051
.032
.020
.040
.040
.032
NOTE.
LEFT
WING
SHOWN
RIGHT
WING
OPPOSITE.
1.
HEAT
TREAT
TO 2024-T42
AFTER
FORMING.
2. HEAT
TREAT
TO
2024-T3
AFTER
FORMING.
3. ONLY
PERTAINS TO
32R-300.
4. ELIMINATING
GEAR
DOORS.
RETRACTING
PANE LS OR
OTHER
PANELS
NOTED
FOR
32R-300.
THE
MATERIAL
NOTED
DEALS WITH
THE ENTIRE
PANEL
DESIGNATED.

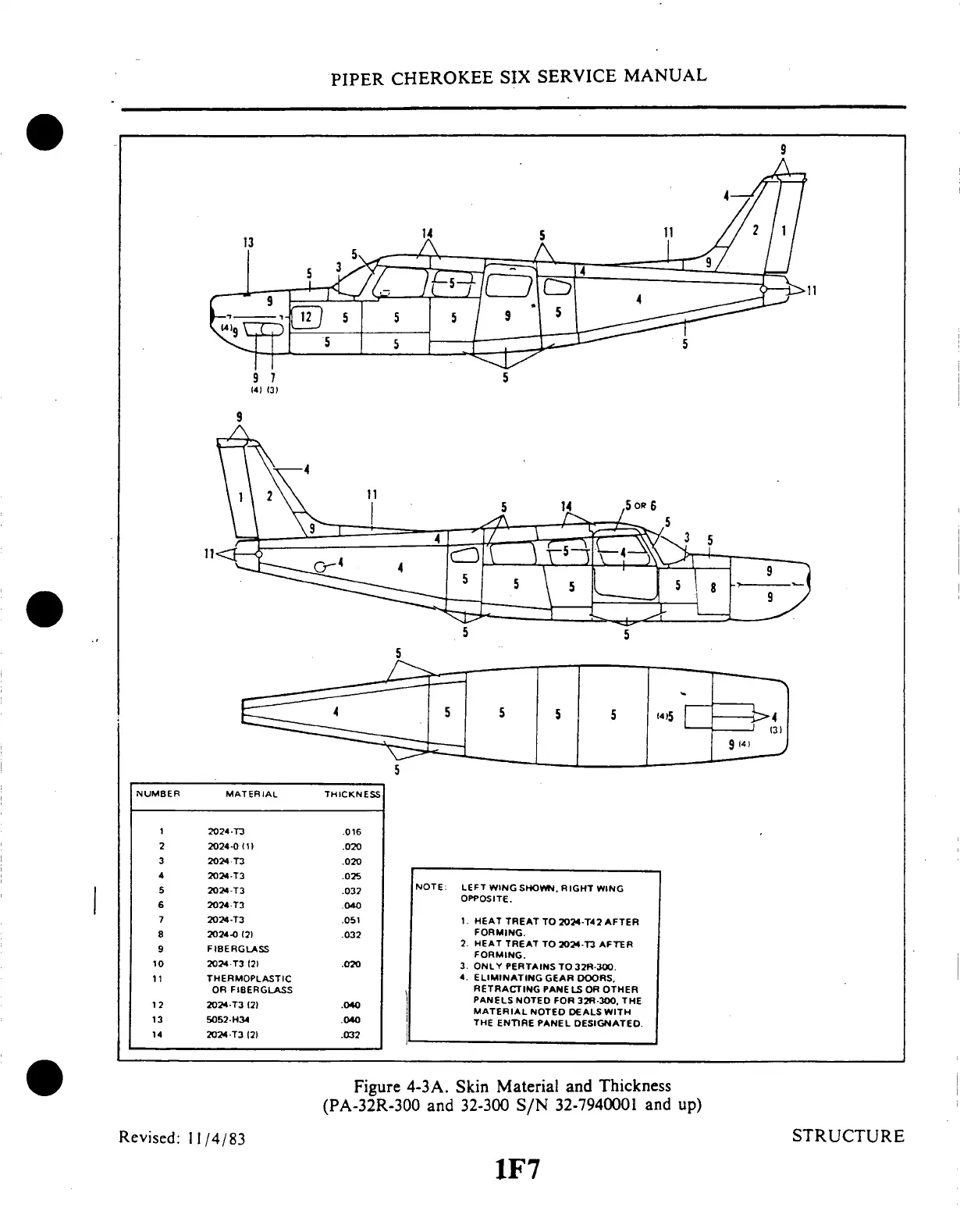

Figure 4-3A.
Skin Material
and Thickness
(PA-32R-300
and 32-300 S/N 32-7940001
and up)
Revised:
11/4/83
STRUCTURE
1F7
