C370
SNUBBER
SEE
NOTE 1
STRIKER PLATE
VIEW A-A
(ROTATED)
STRIKER
PLATE.
MASKING TAPE
APPLY
ADHESIVE
HERE
VIEW D
APPLICATION OF TAPE TO
DOOR
JAMB
PIPER CHEROKEE
SIX SERVICE
MANUAL
G
K
B
NOTES
1. ORIENT
SNUBBER
FLAT WITH
THIS SURFACE.
2. BUTT
JOINT
OCCURS AT
DOOR
DRAIN AREA
3.
DO NOT
STRETCH
SNUBBER
AROUND
CORNERS.
SNUBBER
OUTBD
FWD
SNUBBER
SCUFF
PLATE
NOTE 1
VIEW
C-C
VIEW B-B
0 20
IN.
VIEW E-E
VIEW
F-F
VIEW G-G
(ROTATED)

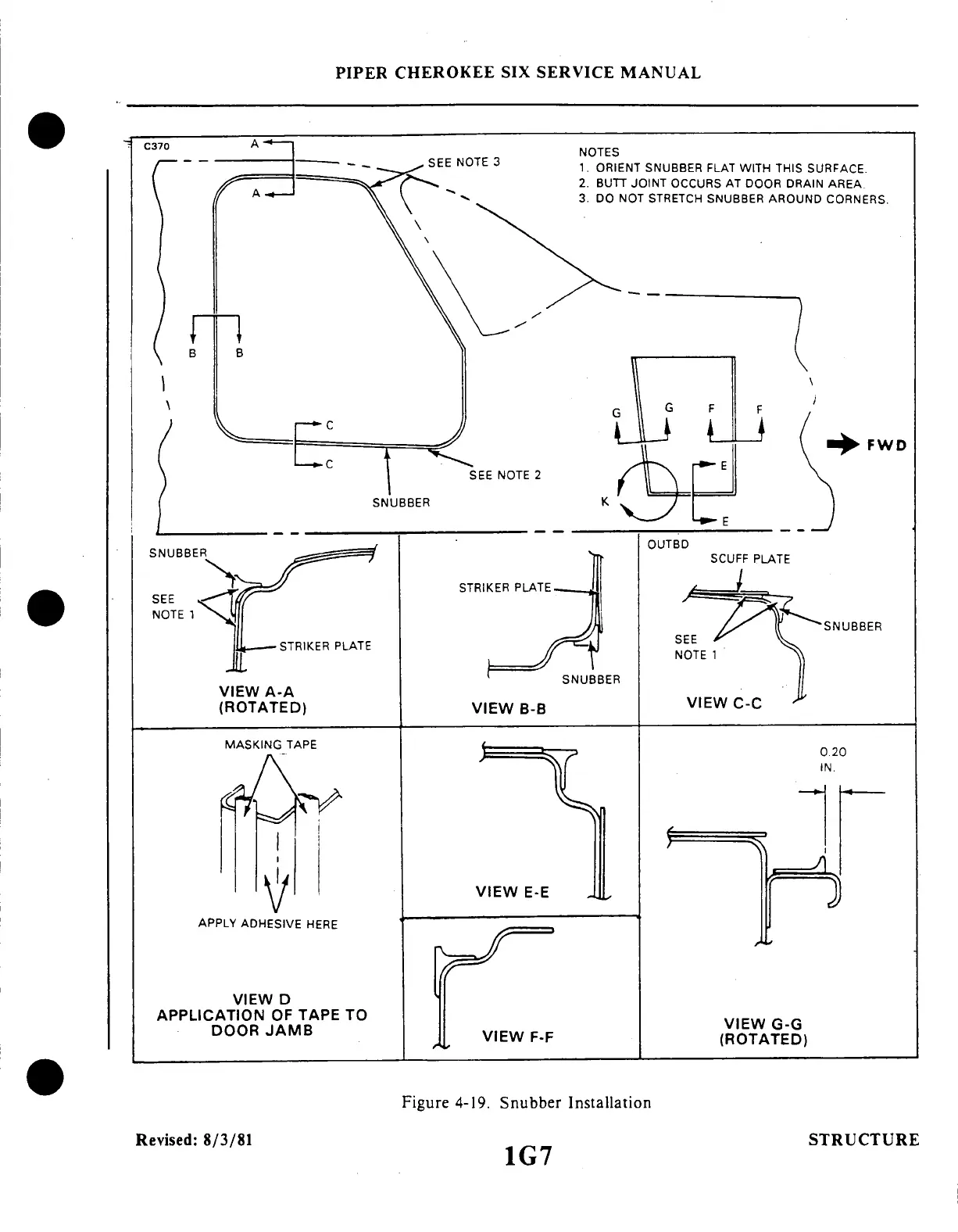

Figure
4-19. Snubber
Installation
Revised:
8/3/81
STRUCTURE
1G7
