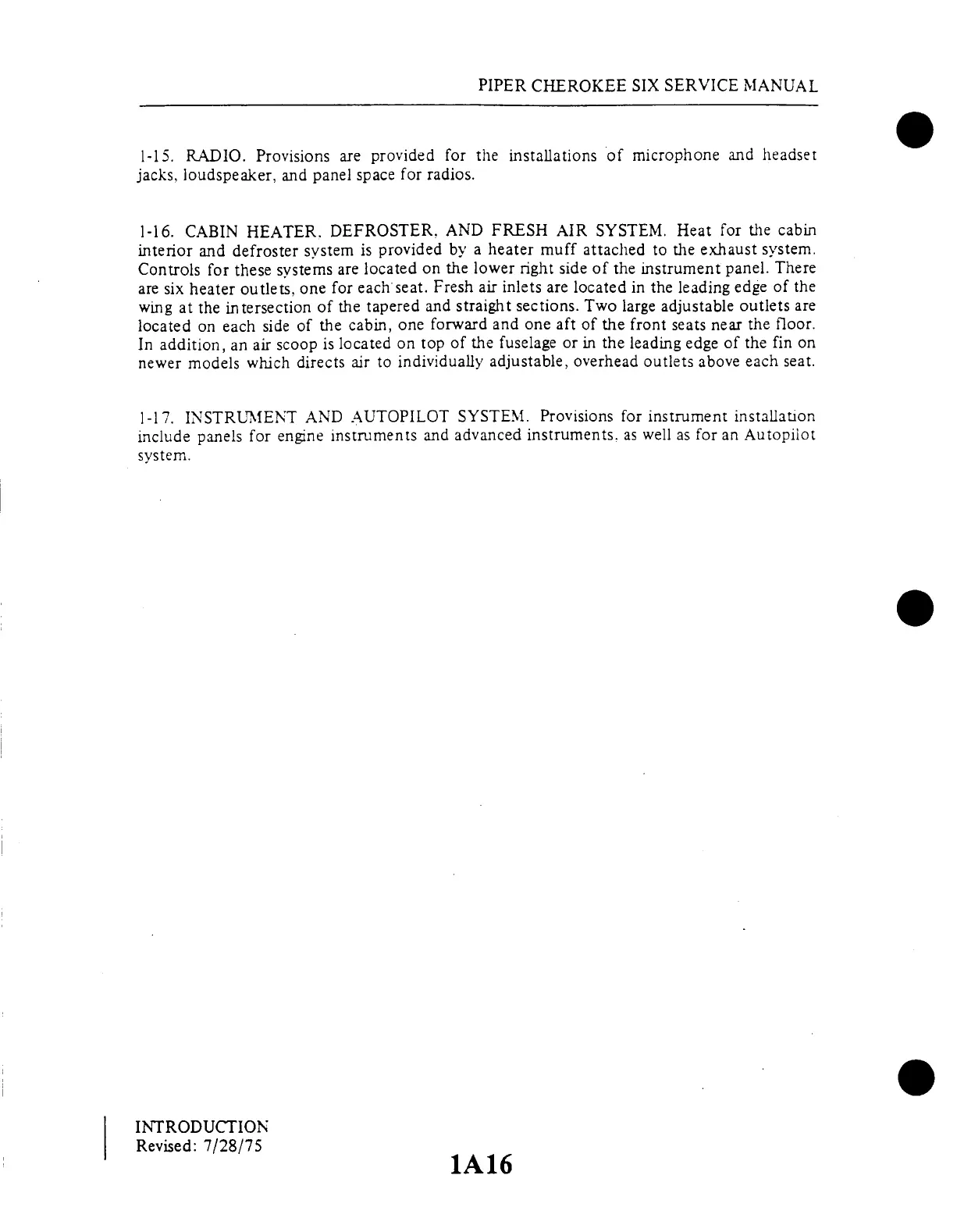

PIPER CHEROKEE SIX SERVICE MANUAL
1-15. RADIO.
Provisions
are provided
for the
installations
of microphone
and headset
jacks,
loudspeaker,
and
panel
space for
radios.
1-16.
CABIN
HEATER.
DEFROSTER.
AND
FRESH
AIR SYSTEM.
Heat for
the cabin
interior
and defroster
system is
provided by
a heater muff
attached to
the exhaust
system.
Controls
for these systems
are located
on the
lower right side
of the instrument
panel.
There
are six heater
outlets, one
for each seat.
Fresh air inlets
are located
in the leading
edge of
the
wing at the
intersection
of the
tapered
and straight
sections.
Two large
adjustable
outlets
are
located on
each side of
the cabin, one
forward and
one aft of
the front seats
near the floor.
In addition,
an air
scoop is located
on
top of the
fuselage
or in the
leading edge
of the
fin on
newer
models
which
directs air
to individually
adjustable,
overhead
outlets above
each
seat.
1-17. INSTRUMENT
AND AUTOPILOT
SYSTEM. Provisions
for instrument
installation
include panels
for
engine instruments
and advanced
instruments,
as
well as
for an Autopilot
system.
