PIPER
CHEROKEE
SIX SERVICE
MANUAL
1678
1. TUBE, L. OUTER
2. TUBE, L. CENTER
3. TUBE. R. CENTER
4. TUBE, R. OUTER
5. PLATE
6. BOLT & NUT
7. SUPPORT BLOCK, UPPER
8. SUPPORT BLOCK. LOWER
9. WASHER, SPACER
10.
ARM,
IDLER
11. ROD. BRAKE CYLINDER
12.
BRAKE CYLINDER
13.
CLEVIS PIN
& COTTER
PIN
14.
TUBE, RUDDER
CONTROL
15.
CLEVIS
ROD
16. CLEVIS
PIN & COTTER
PIN
17.
CLEVIS
END
18. TOE BRAKE
PEDAL
19. CONTROL
CABLE,
RUDDER
20.
BOLT,
WASHER.
NUT
& COTTER
PIN
21.
BUNGEE,
NOSE
WHEEL
STEERING
22.
JAM
NUT
23.
ROD
END,
BUNGEE
24. BOLT
& NUT
25.
BOLT,
WASHER
& NUT
26. BOLT,
WASHER
& NUT
27.
BOLT, WASHER
& NUT
21. BRACKET
29.
VEE BRACE
30.
CLEVIS
PIN
& COTTER
PIN
31.
RUDDER
PEDAL,
L. OUTER
32.
RUDDER
PEDAL,
L. INNER
33.
RUDDER
PEDAL,
R. INNER
34. RUDDER
PEDAL, R.
OUTER
35.
BRACKET,
TUBE
SUPPORT

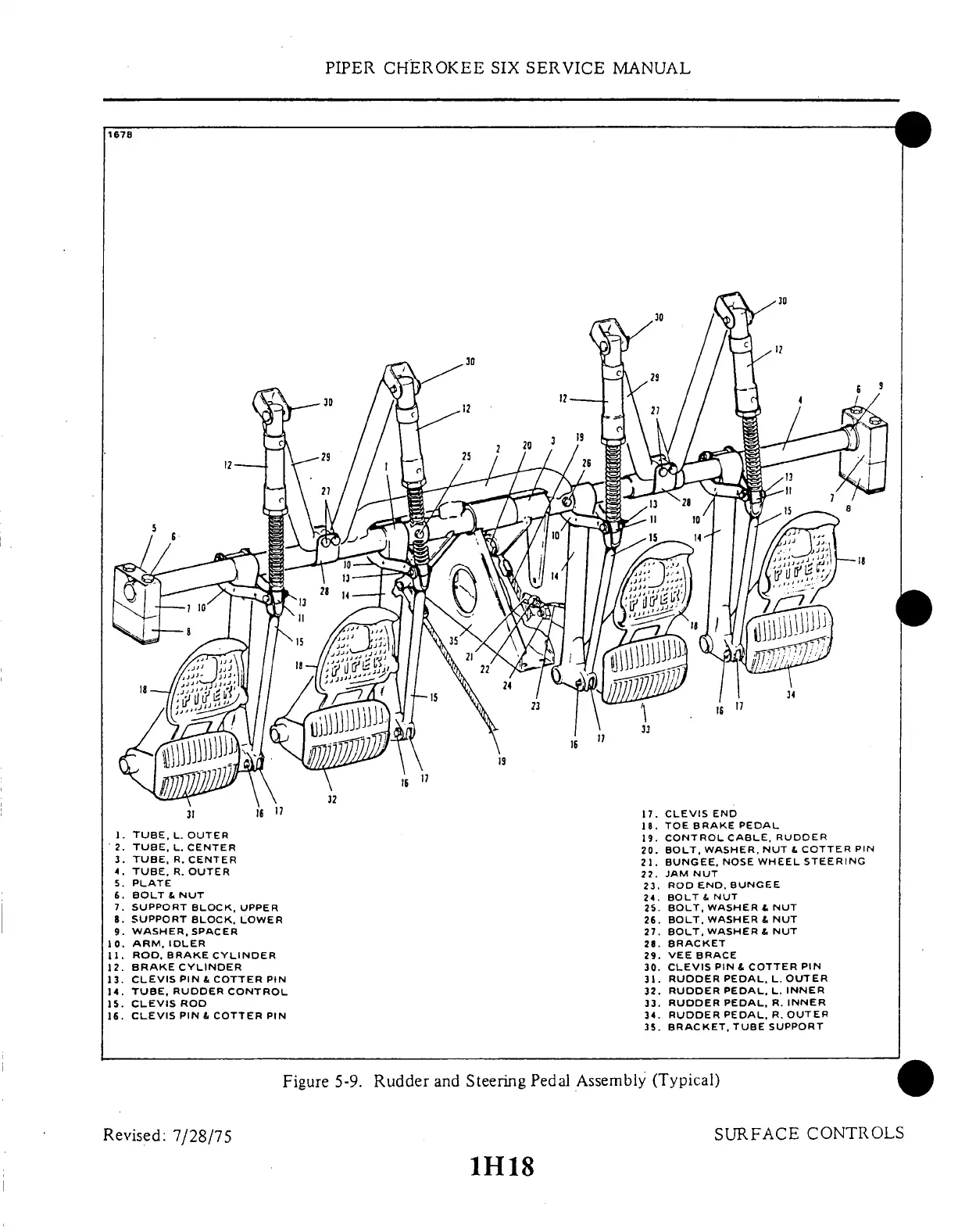

Figure
5-9.
Rudder
and
Steering
Pedal
Assembly
(Typical)
Revised:
7/28/75
SURFACE
CONTROLS
1H18
