1. COVER
2.
RUDDER TRIM
KNOB
3. LOCK SCREW
4. BUSHING
S. CLEVIS PIN
6. HOUSING,
CONTROL
SHAFT
7. BOLT ASSEMBLY
8. CHANNEL,
MOUNTING
9. SCREWS
10. SCREW
I . CLIPS
12. SAFETY
WIRE
13.
WASHER,
INDICATOR
14.
SPACER
PLATE
15.
SHAFT,
CONTROL

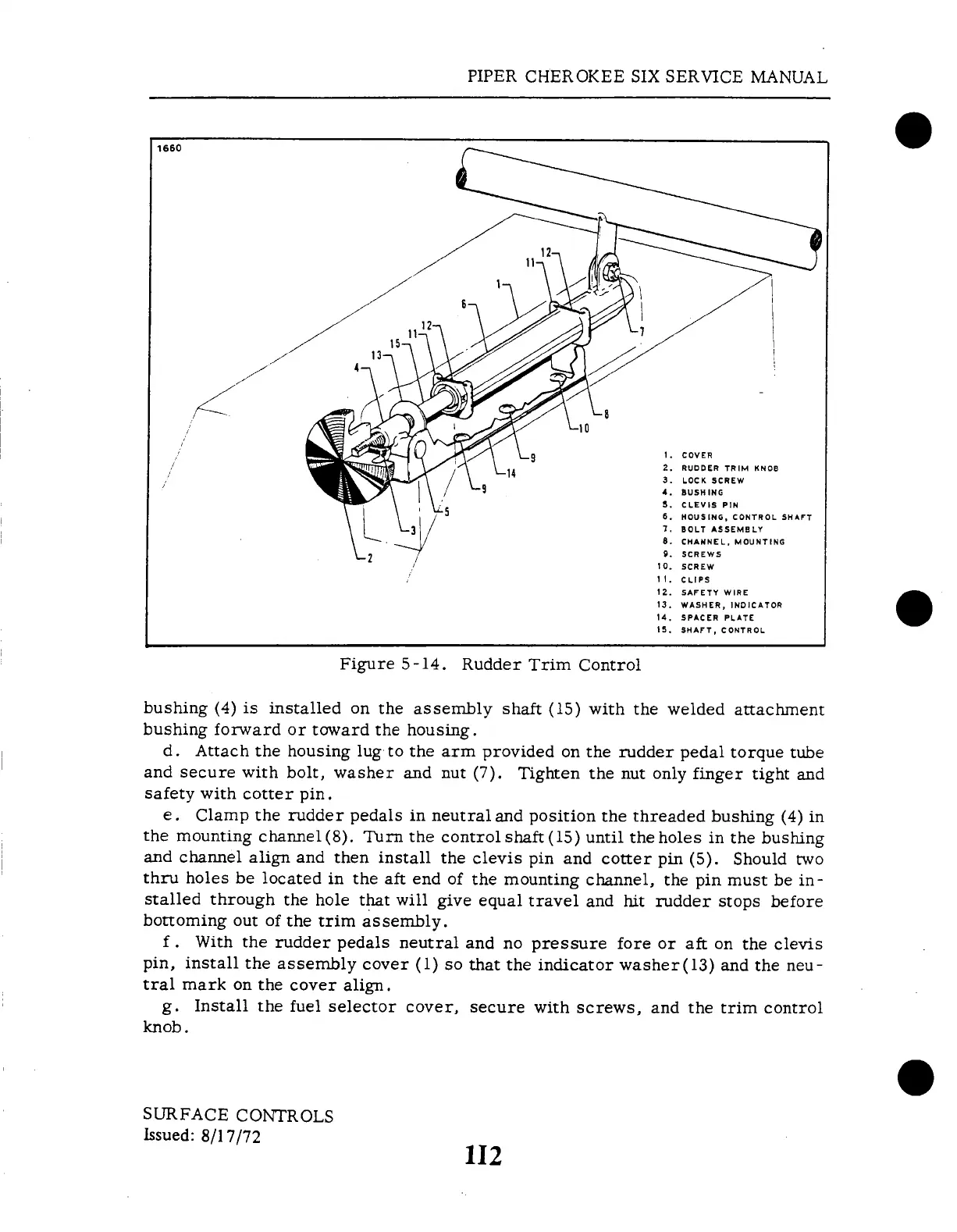

Figure
5-14.
Rudder
Trim
Control
bushing
(4) is
installed
on
the assembly
shaft
(15) with
the
welded
attachment
bushing
forward
or toward
the
housing.
d.
Attach
the housing
lug to
the arm
provided
on
the rudder
pedal
torque
tube
and
secure
with
bolt,
washer
and
nut
(7).
Tighten
the
nut
only
finger
tight
and
safety
with
cotter
pin.
e. Clamp
the
rudder
pedals
in neutral
and position
the threaded
bushing
(4) in
the
mounting
channel
(8).
Turn
the control
shaft(15)
until
the
holes
in the
bushing
and channel
align and
then
install
the
clevis
pin and
cotter
pin (5).
Should
two
thru
holes
be located
in
the aft
end
of the
mounting
channel,
the
pin
must be
in-
stalled
through
the hole
that
will
give
equal
travel
and
hit rudder
stops
before
bottoming
out of
the trim
assembly.
f.
With
the rudder
pedals
neutral
and no
pressure
fore
or
aft on
the clevis
pin, install
the assembly
cover
(1)
so
that the
indicator
washer(13)
and
the neu-
tral
mark
on the
cover
align.
g.
Install
the
fuel
selector
cover,
secure
with
screws,
and
the trim
control
knob.
