PIPER
CHEROKEE
SIX SERVICE
MANUAL
1876
I. BRACKET, ROD ATTACHMENT
2. BOLT,
WASHER &
NUT
3. JAM NUT
4.
ROD, FLAP
CONTROL
5. BOLT,
BEARING BLOCK
ATTACHMENT
6. BRACKET,
BEARING
BLOCK
7. BLOCK, BEARING
8. NUT, LOCK
9. SCREW,
FLAP ADJUSTMENT
10. BOLT, WASHER & NUT
I I. CRANK (ARM), TORQUE TUBE
12. BOLT, WASHER & BUSHING
13. FITTING, TORQUE TUBE STOP
14. TUBE, TOROUE
15.
BOLT, WASHER
& NUT
16. BLOCK, BEARING
17. SPROCKET, TENSION SPRING
18. BOLT, WASHER & NUT
19. BRACKET, BEARING BLOCK
20. CHAIN, TENSION SPRING
21.
CLEVIS BOLT,
BUSHING
NUT &
COTTER
PIN
22. SPRING,
TENSION
23. CABLE, FLAP CONTROL
24. PULLEY
25. TURNBUCKLE
26. CLEVIS BOLT, NUT & COTTER PIN
27.
BOLT, BUSHING,
WASHER & NUT
28. BRACKET, FLAP HANDLE
29. HANDLE, FLAP
30. BOLT, WASHER & NUT
31. SPROCKET, RETURN SPRING
32. CHAIN,
RETURN
SPRING
33.
BLOCK, BEARING
34. SPRING, RETURN
35. BUTTON, FLAP RELEASE
36. RUB BLOCK
37. SAFETY COTTER PIN

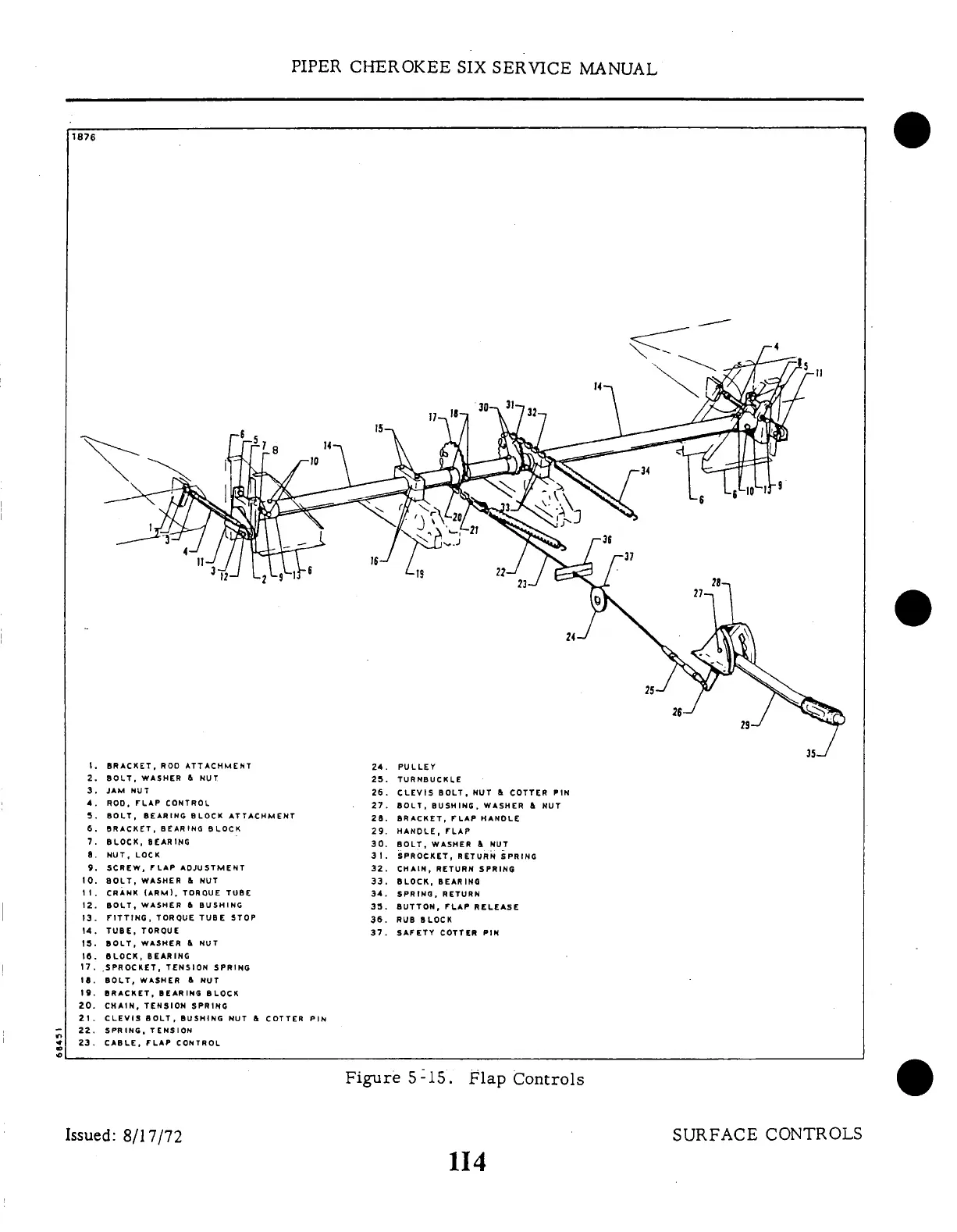

Figure
5-15.
Flap
Controls
Issued:
8/17/72
SURFACE
CONTROLS
114
