NOT
REQUIRED
WHEN
NOSE WHEEL FAIRING
ISINSTALLED.
PIPER CHEROKEE SIX SERVICE MANUAL
1662
NOT REQUIRED
WHEN
NOSE
WHEEL FAIRING
IS
INSTALLED,
AN6-25A
AN960-616
PS10062-8-624C
TORQUE 240/270 in lbs.
20
21
1. BOLT, WASHER & NUT
2. SPRING (NOT
REQUIRED WHEN
NOSE
WHEEL
FAIRING IS INSTALLED)
3. RIGHT
STEERING
CONTROL
ROD
4. BOOT
5. SHIMMY DAMPENER
22
6.
BUSHING,
STOP
7. AIR VALVE
8. AIR VALVE CAP
9. BOLT & NUT
10. HORN ASSY.
11. BOLT
23 12.
PIN, WASHER
& COTTER
PIN
OR BOLT,
WASHER & NUT
13. BOLT,
WASHER &
NUT
14. BOLT & NUT
15. LEFT STEERING
CONTROL
ROD
16. PISTON
TUBE
ASSY.
17. TOW
BAR BRACKET
24
18.
BOLT,
WASHER
&
NUT
19. NOSE
GEAR STRUT
ASSY.
20. LINK ASSY.
21.
BUMPER
BLOCK
22.
FORK
ASSY.
23. TIRE
24. AXLE
ROD
ASSY.

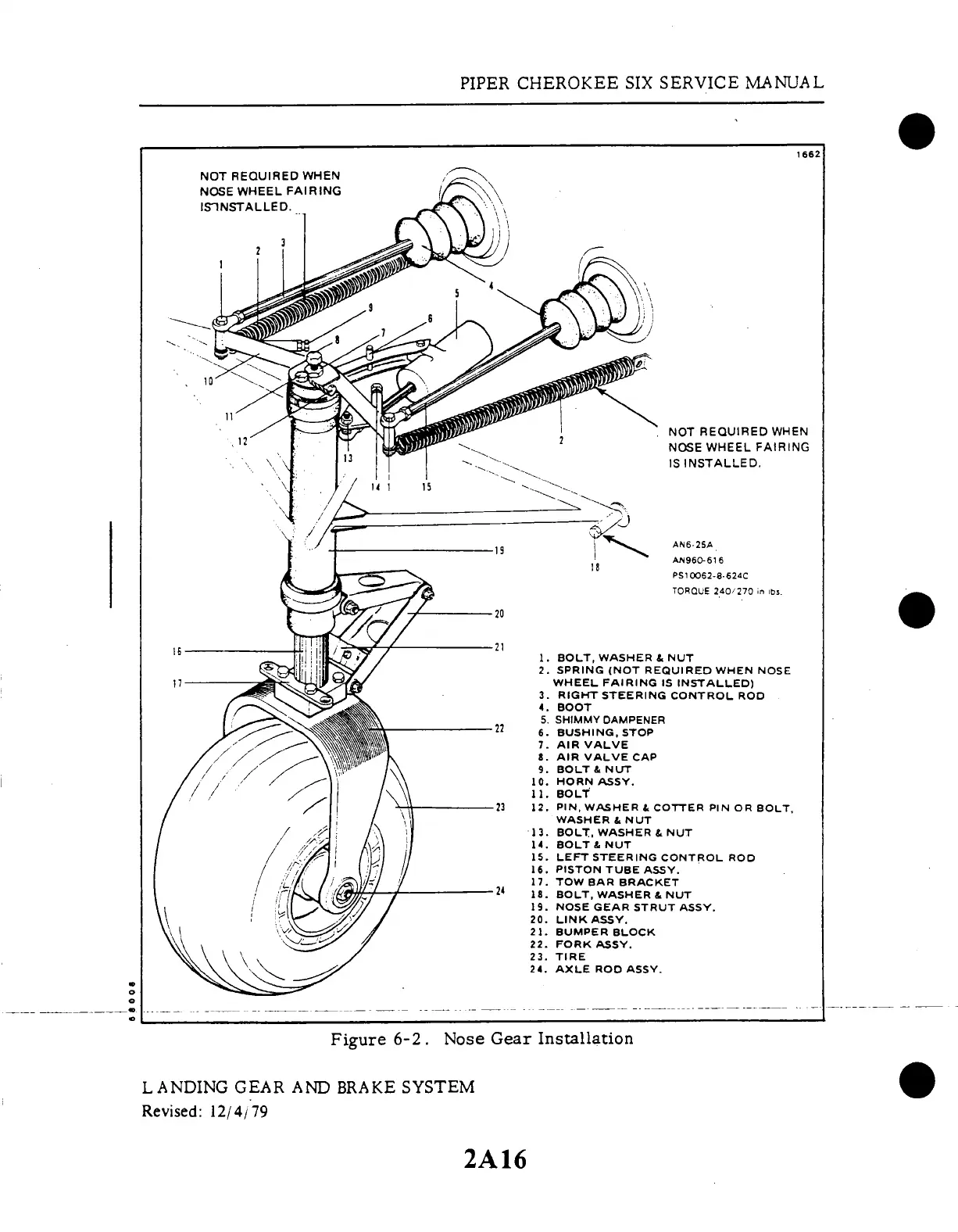

Figure 6-2. Nose Gear Installation
LANDING GEAR AND BRAKE SYSTEM
Revised:
12/4/79
2A16
