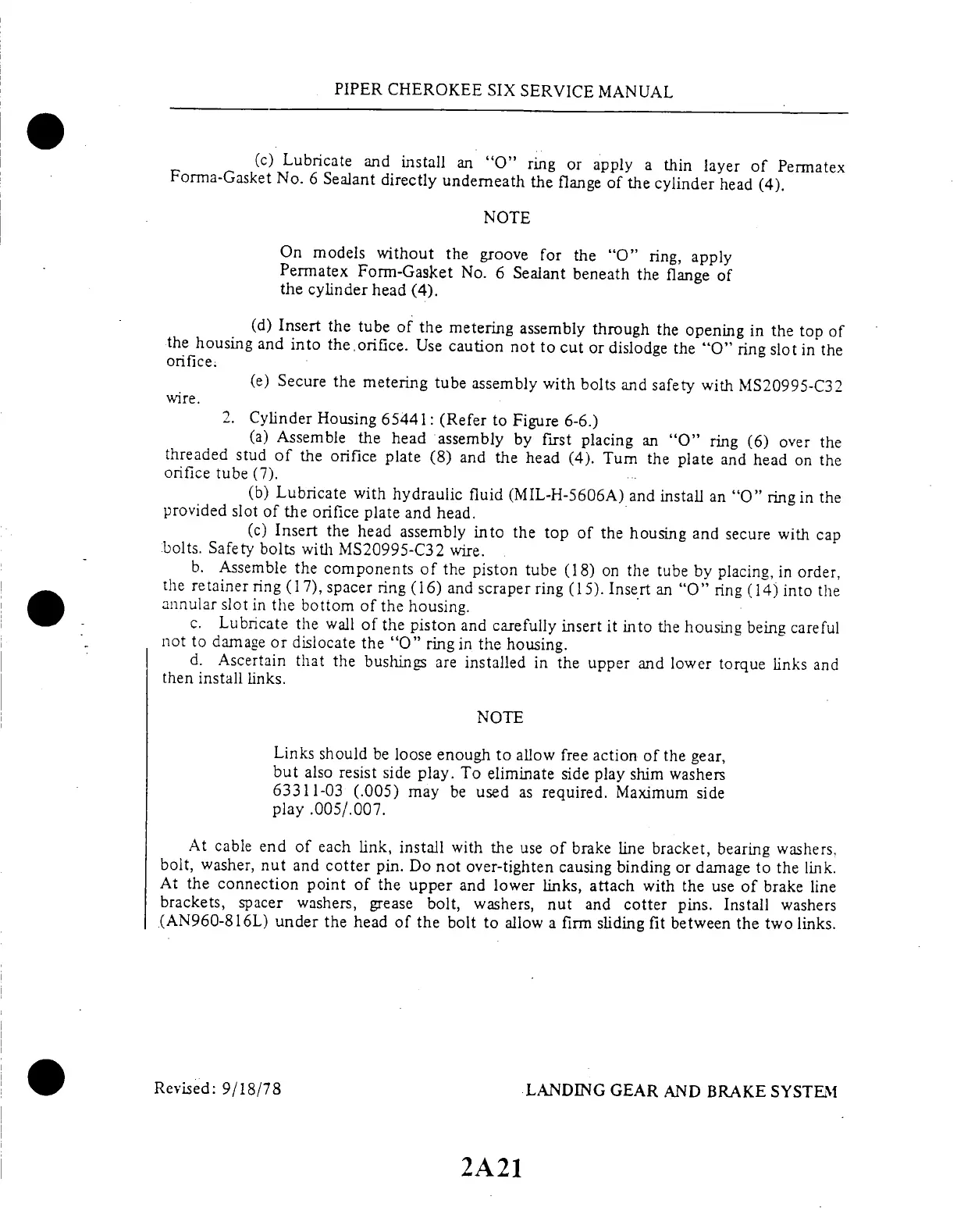

Lubricate
and
install
an
"O"
ring
or
apply
a
thin
layer
of
Permatex
Forma-Gasket
No.
6
Sealant
directly
underneath
the
flange
of
the
cylinder
head
(4).
NOTE
On
models
without
the
groove
for
the
"O"
ring,
apply
Permatex
Form-Gasket
No.
6
Sealant
beneath
the
flange
of
the
cylinder
head
(4).
(d)
Insert
the
tube
of
the
metering
assembly
through
the
opening
in
the
top
of
the
housing
and
into
the
orifice.
Use
caution
not
to
cut
or
dislodge
the
"O"
ring
slot
in
the
orifice.
(e)
Secure
the
metering
tube
assembly
with
bolts
and
safety
with
MS20995-C32
wire.
2.
Cylinder
Housing
65441:
(Refer
to
Figure
6-6.)
(a)
Assemble
the
head
assembly
by
first
placing
an
"O"
ring
(6)
over
the
threaded
stud
of
the
orifice
plate
(8)
and
the
head
(4).
Turn
the
plate
and
head
on
the
orifice
tube
(7).
(b)
Lubricate
with
hydraulic
fluid
(MIL-H-5606A)
and
install
an
"O"
ring
in
the
provided
slot
of
the
orifice
plate
and
head.
(c)
Insert
the
head
assembly
into
the
top
of
the
housing
and
secure
with
cap
bolts.
Safety
bolts
with
MS20995-C32
wire.
b.
Assemble
the
components
of
the
piston
tube
(18)
on
the
tube
by
placing,
in
order,
the
retainer
ring
(17),
spacer
ring
(16)
and
scraper
ring
(15).
Insert
an
"O"
ring
(14)
into
the
annular
slot
in
the
bottom
of
the
housing.
c.
Lubricate
the
wall
of
the
piston
and
carefully
insert
it
into
the
housing
being
careful
not
to
damage
or
dislocate
the
"O"
ring
in
the
housing.
d.
Ascertain
that
the
bushings
are
installed
in
the
upper
and
lower
torque
links
and
then
install
links.
NOTE
Links
should
be
loose
enough
to
allow
free
action
of
the
gear,
but
also
resist
side
play.
To
eliminate
side
play
shim
washers
63311-03
(.005)
may
be
used
as
required.
Maximum
side
play
.005/.007.
At
cable
end
of
each
link,
install
with
the
use
of
brake
line
bracket,
bearing
washers.
bolt,
washer,
nut
and
cotter
pin.
Do
not
over-tighten
causing
binding
or
damage
to
the
link.
At
the
connection
point
of
the
upper
and
lower
links,
attach
with
the
use
of
brake
line
brackets,
spacer
washers,
grease
bolt,
washers,
nut
and
cotter
pins.
Install
washers
(AN960-816L)
under
the
head
of
the
bolt
to
allow
a
firm
sliding
fit
between
the
two
links.
Revised:
9/18/78
LANDING
GEAR
AND
BRAKE
SYSTEM
2A21
