PIPER
CHEROKEE
SIX
SERVICE
MANUAL
2638
1
CAP.
VALVE
13
TORQUE
LINKS
2 PLUG.
FILLER
14
O-RING
3
O-RING.
CYLINDER
HEAD
IS RING
SCRAPER
4
HEAD
CYLINDER
16 RING.
SPACER
5 O-RING.
CYLINDER
HEAD
17 RING.
RETAINER
6
O-RING
18 TUBE.
PISTON
7
TUBE. ORIFICE
19 AXLE
STUB
8 PLATE.
ORIFICE
20
SPACER
9
STRUT HOUSING
21 SPACER
10
WASHER
22. NUT.
WHEEL
RETAINER
11
NUT
23
PIN.
CLEVIS
12
WASHER
NOTE.
UNKS SHOULD
BE LOOSE
ENOUGH TO
ALLOW FREE
ACTION
OF
THE
GEAR.
BUT ALSO
RESIST
SIDE
PLAY.
TO ELMINATE
SIDE
PLAY
ONE SHIM
WASHER
(63311-03
(.005))
PER LINK
HINGE
MAY
BE USED
IF REQUIRED.
[IF
BOTH
LINKS REQUIRE
SHIMS.
MAKE
SURE
TO INSTALL
THEM
ON THE
SAME
SIDE OF
EACH
HINGE.
MAXIMUM
SIDE PLAY
.006/.007.

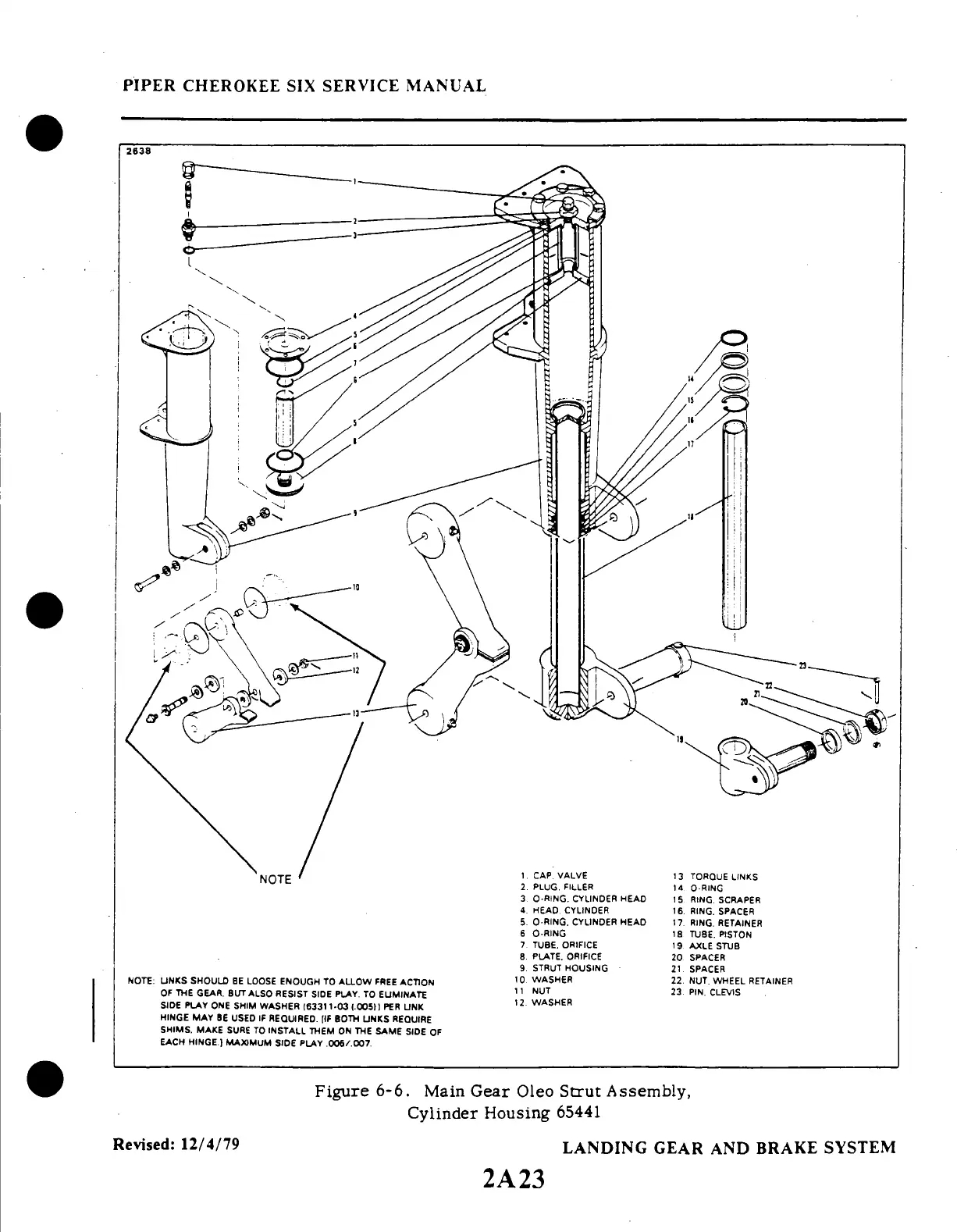

Figure
6-6.
Main
Gear
Oleo
Strut Assembly,
Cylinder
Housing
65441
Revised: 12/4/79
LANDING
GEAR AND
BRAKE
SYSTEM
2A23
