1.
SAFETY
WIRE
2.
AIR
VALVE
CAP
3. BOLT
4. AIR VALVE
5.
SCREW
6. CYLINDER
7. BOLT
8.
BRAKELINE
HOSE
9. BOLT,
WASHER,
NUT,
AND
COTTER
PIN
10.
TORQUE
LINK
ASSY.
I . OLEO
ASSY.
12. STUB,
AXLE
PIPER
CHEROKEE
SIX SERVICE
MANUAL
1651
1651
2
SEE
NOTE
3
NOTE:
WHEN
INSTALLING
VALVE
TORQUE
VALVE
TO
45
FT
LBS.
USE
45
FT
LBS.
ON
VALVE
CAPS
WITH
BARE
THREADS
AND
22.5'FT
LBS.
ON CAPS WITH
PHOSPHATE
COATED
THREADS

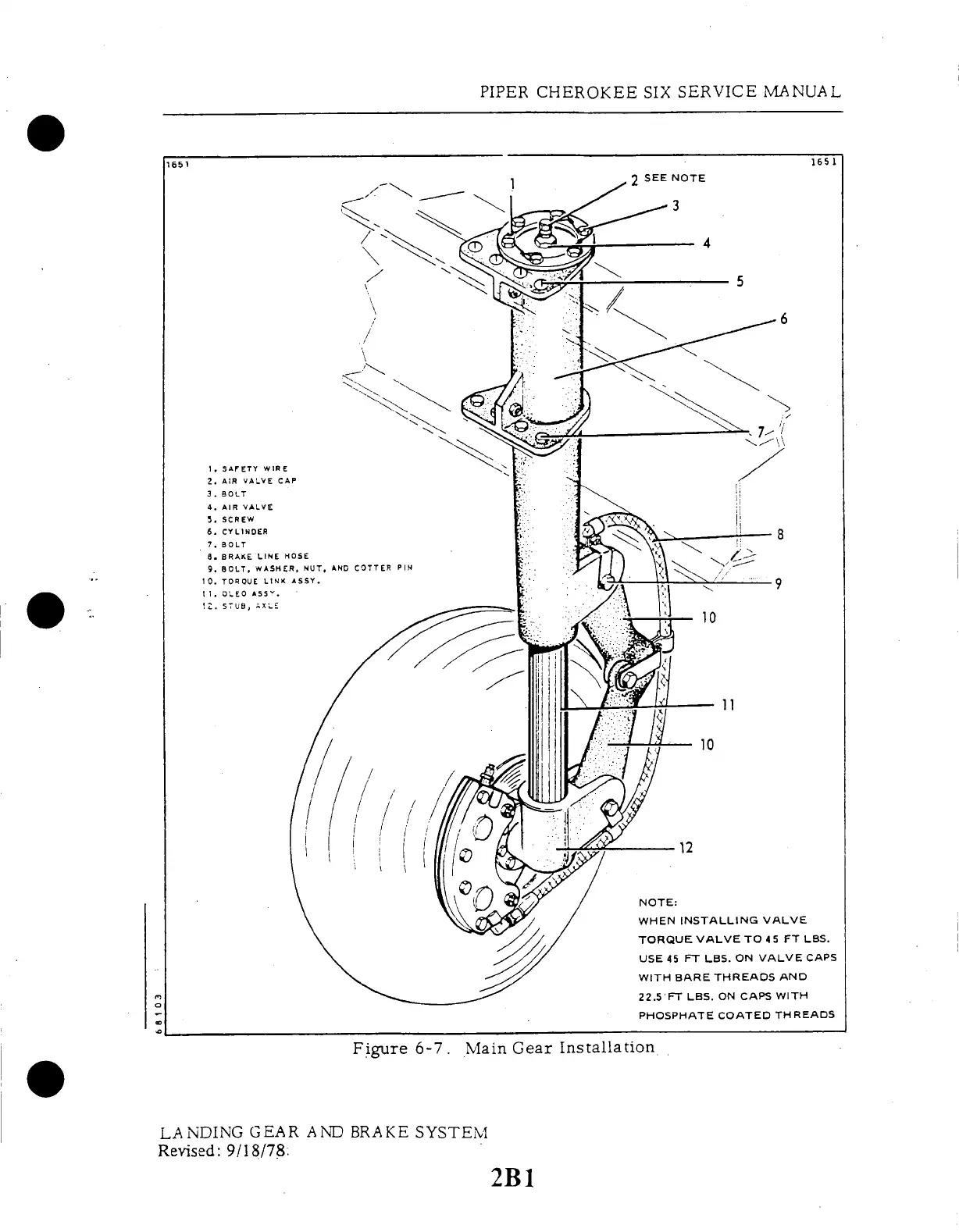

Main
Gear
Installation
Figure
6-7.
LANDING
GEAR
AND
Revised: 9/18/78.
BRAKE
SYSTEM
2B1
