Piper Cherokee Six - Page 280

11
10
1 WHEEL
ASSEMBLY
2 WHEEL HALF OUTER
3 BEARING CUP
4 WHEEL HALF INNER
S
BEARING
CUP
6
BEARING
CONE
7 GREASE
SEAL
8 SNAP RING
9 WHEEL
THROUGH
BOLT
10 WASHER
11 NUT
12
GREASE SEAL
RETAINER
9
8
6-
1 WHEEL ASSEMBLY
2 WHEEL HALF INNER
3. BEARING CUP
4 WHEEL HALF OUTER
5. BEARING CUP
6 BEARING CONE
7 RETAINER
8 RETAINER
9 RETAINING
RING
10 GREASE SEAL
11
WHEEL THROUGH
BOLT
12 WASHER
13 NUT
PIPER
CHEROKEE
SIX SERVICE
MANUAL
10
CLEVELAND
9
7
12
12
2
7
MC CAULEY

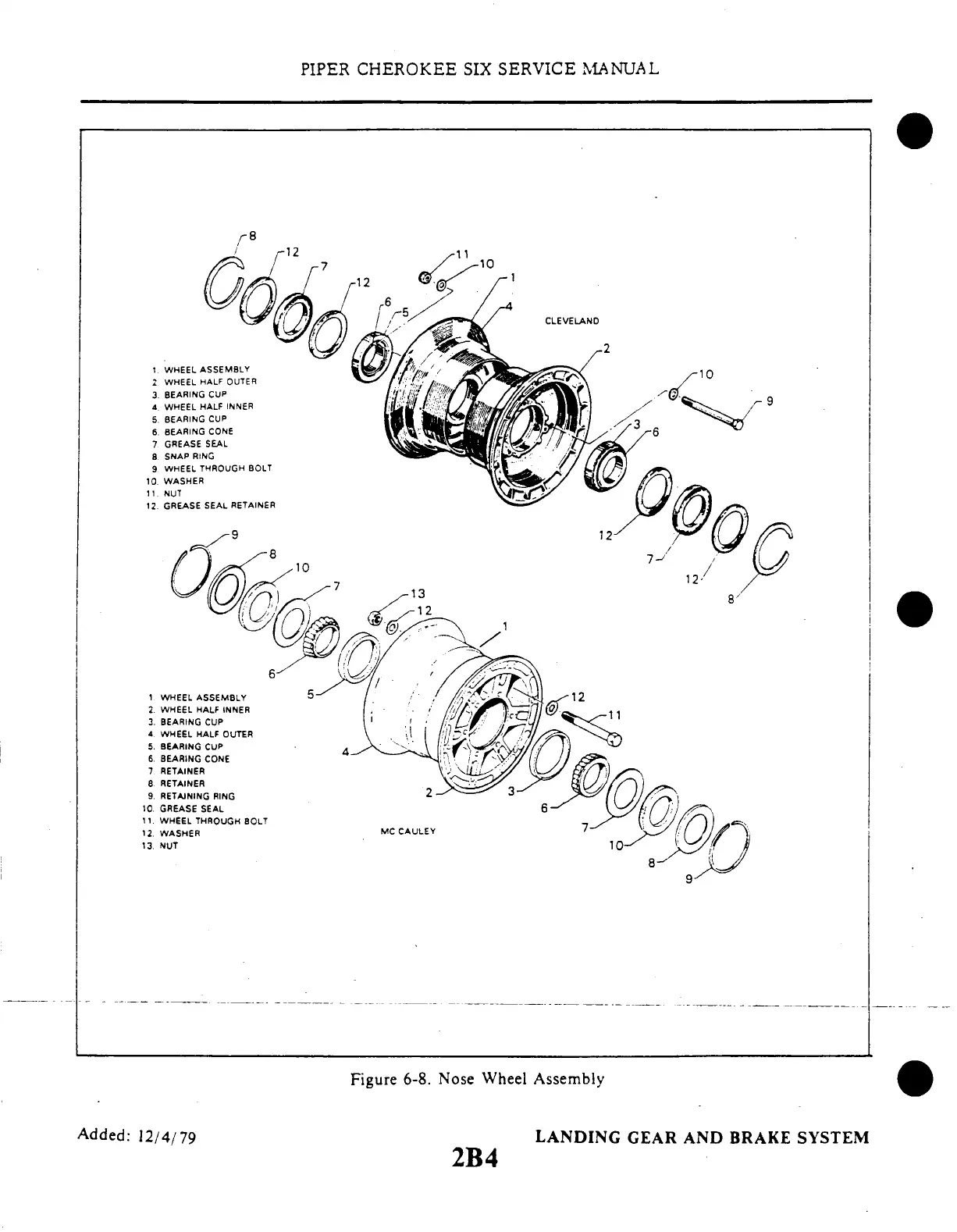

Figure
6-8.
Nose Wheel
Assembly
Added:
12/4/79
LANDING GEAR
AND BRAKE SYSTEM
2B4
