PIPER
CHEROKEE SIX
SERVICE MANUAL
1677
14
2.
WHEEL
HALF
2. WHEEL HALF
3. BRAKE DISC
4. SCREW
S. LOCK
WASHER
6. DUST SHIELD
7. NUT
8.
WASHER
9. WHEEL
THROUGH
BOLT
10. BEARING CUP
11. BEARING CONE
12. GREASE
SEAL RETAINER
13. SNAP
RING
14. GREASE SEAL
15. GREASE SEAL RETAINER
12
14
12

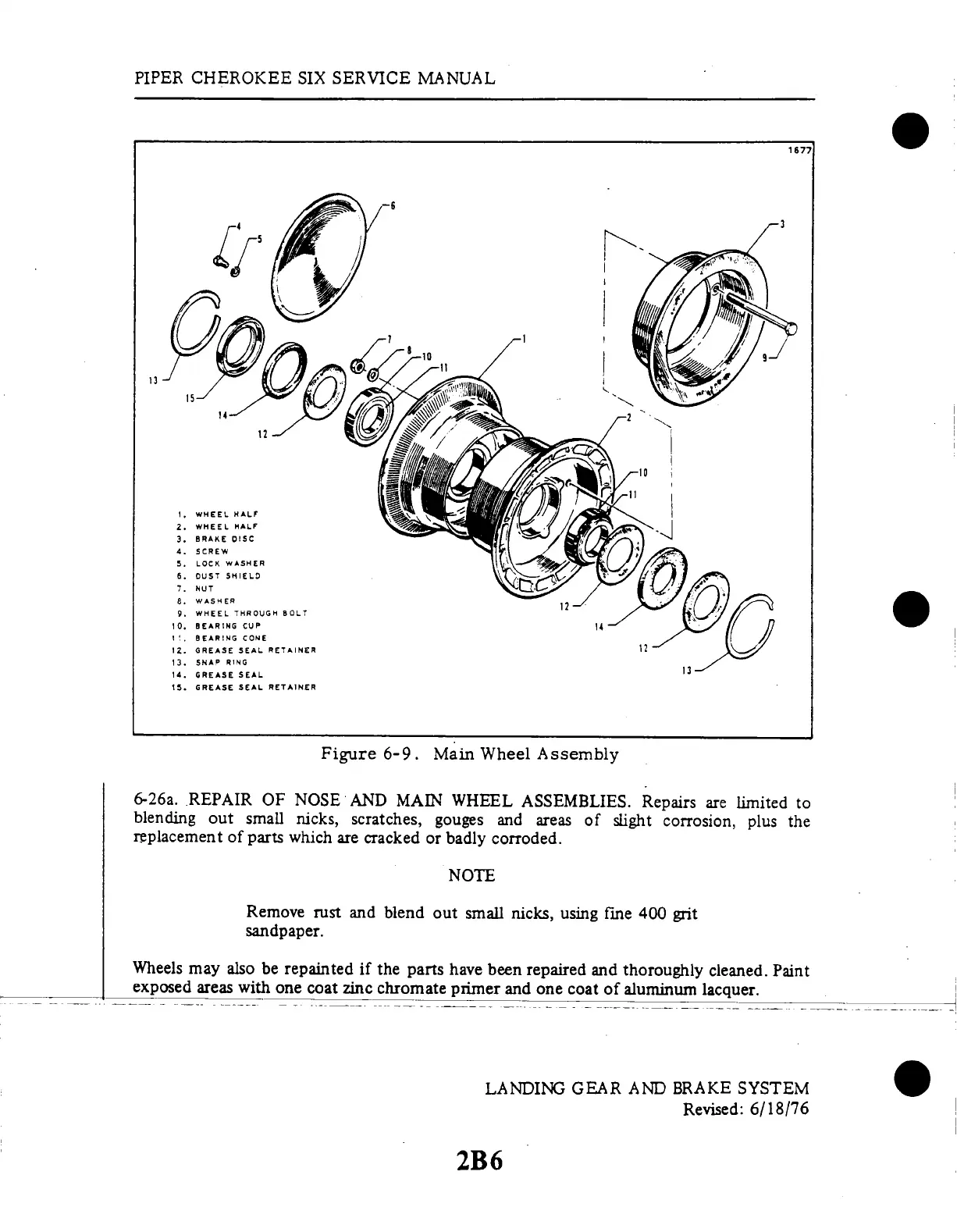

Figure
6-9.
Main
Wheel
Assembly
6-26a.
REPAIR
OF
NOSE
AND
MAIN
WHEEL
ASSEMBLIES.
Repairs
are
limited
to
blending
out
small
nicks,
scratches,
gouges
and areas
of
slight
corrosion,
plus
the
replacement
of parts
which
are cracked
or badly
corroded.
NOTE
Remove
rust
and blend
out
small nicks,
using
fine 400
grit
sandpaper.
Wheels
may
also be
repainted
if
the parts
have been
repaired
and
thoroughly
cleaned.
Paint
exposed
areas
with one
coat
zinc chromate
primer
and one
coat
of aluminum
lacquer.
LANDING
GEAR
AND
BRAKE
SYSTEM
Revised: 6/18/76
2B6
